Turck RU300U-EM30E-LIU2PN8X2T-H1151/3GD
Smooth sonic transducer face | Cylindrical housing M30, potted | Connection via M12 x 1 male | Measuring range adjustable via teach button/Easy-Teach | Temperature compensation | Blind zone: 30 cm | Range: 300 cm | Resolution: 1 mm | Aperture angle of sonic cone: ±15 ° | 1 × switching output, PNP/NPN | 1 × analog output, 4…20 mA / 0…10 V / additional switching output, PNP/NPN | NO/NC programmable | Transmission of process value and parametrization via IO-link | ATEX II 3 G approval | Gases and vapors, Group IIC, Zone 2 | Dust, Group IIIC, Zone 22 | When used in hazardous areas, the special conditions of the approval must be observed | SC-M12/3GD safety clips are included in delivery and prevent inadvertent disconnection of the energized cable
| Ambient temperature | -25…+45 °C |
|---|---|
| Approvals | CE, cULus, ATEX, IECEx |
| Communication Protocol | IO-Link |
| Construction size | M30 x 1.5 |
| Country of origin | CN |
| Current output | 4…20 mA |
| Design | Threaded barrel |
| EAN | 4047101373677 |
| Electrical connection | Connector, M12 × 1 |
| Function | Proximity |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Operating mode | Time of Flight |
| Operating voltage | 15…30 VDC |
| Output function | PNP/NPN, analog output |
| Protection class | IP67 |
| Radiation direction | straight |
| Range | 300…3000 mm |
| Resolution | 1 mm |
| Special Features | Synchronization, Pushbutton |
| Switching element function | NO/NC |
| Voltage output | 0…10 V |
| Weight | 163 g |
Frequently Asked Questions
How do I get pricing for 1610074?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1610074?
1610074 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1610074?
Key specifications include Ambient temperature: -25…+45 °C; Approvals: CE, cULus, ATEX, IECEx; Communication Protocol: IO-Link; Construction size: M30 x 1.5. The full specification table on this page lists every published attribute for this part.
How quickly can 1610074 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

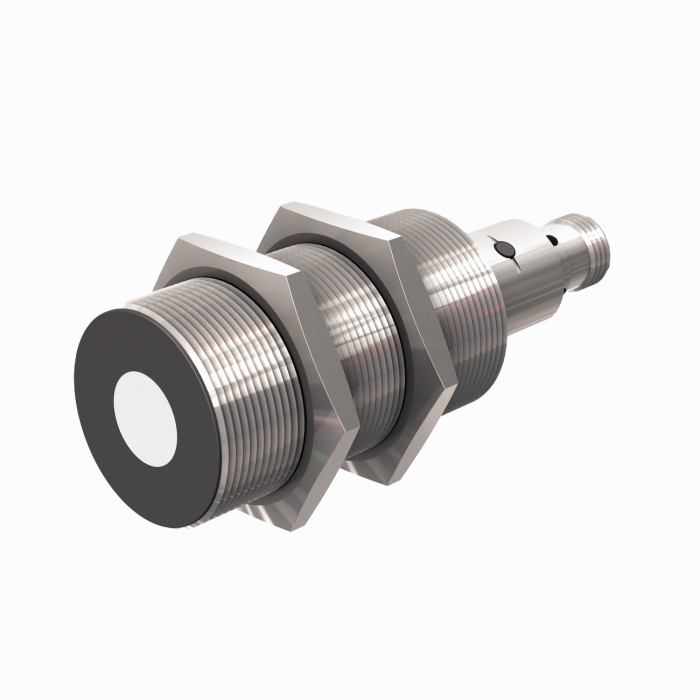

Turck Turck RU130U-EM30E-LIU2PN8X2T-H1151/3GD
Turck Turck RU600U-EM30E-LIU2PN8X2T-H1151/3GD
Turck Turck RU40L-M18M-UP8X2-H1151
Turck Turck RU130U-EM18E-LIU2PN8X2T-H1151/3GD

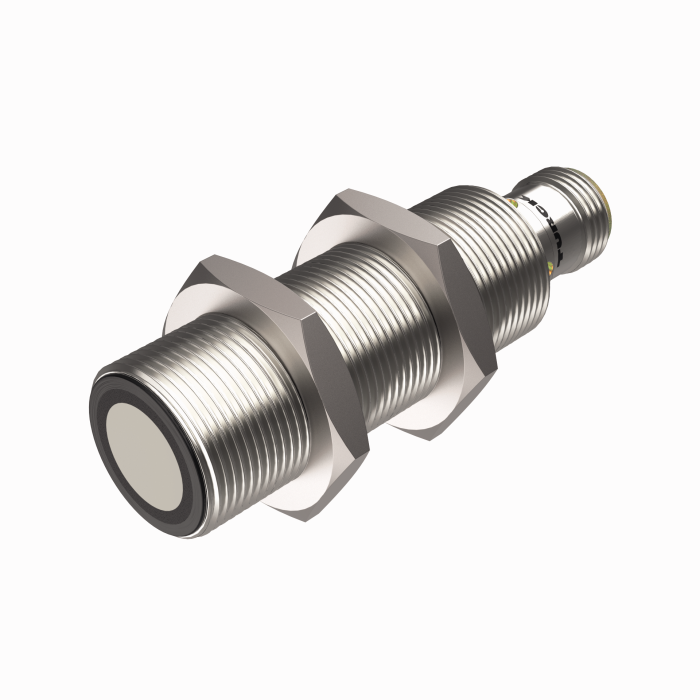

Turck Turck RU100L-M18M-UP8X2-H1151
