Turck BI10-Q14-AP45X2LD
Rectangular, height 14 mm | Active face on top | Plastic, PBT‐GF30‐V0 | For vehicle board nets, 12 V and 24 V | Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2 | Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11) | Extended temperature range | High protection class IP68/IP69K | Protection against salt spray and rapid temperature change | Laser engraved label, permanently legible | DC 3-wire, 8.4…65 VDC | NO contact, PNP output | Cable connection | E1 type approval from German federal office for motor vehicles
| Ambient temperature | -40…+85 °C |
|---|---|
| Approvals | E1 type approval |
| Cable length (L) | 2.0 m |

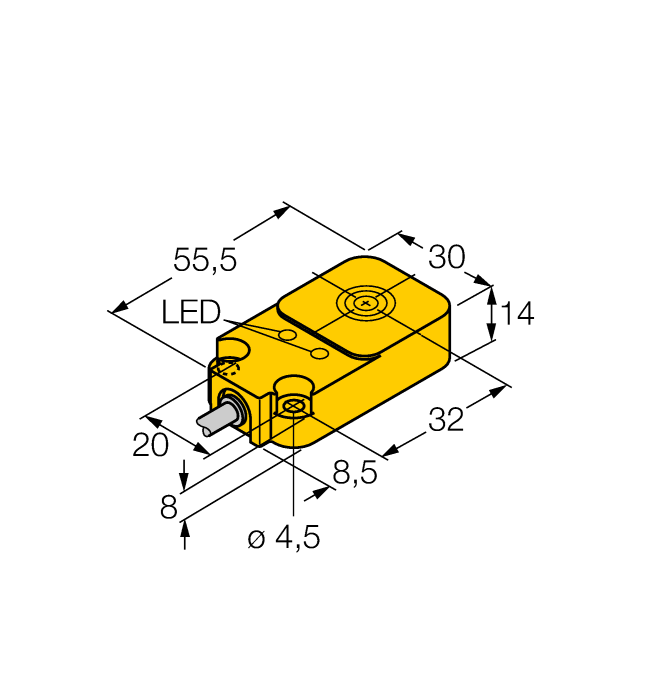

| Construction size | 52 x 30 x 14 mm, Q14 |
| Country of origin | DE |
| Design | Rectangular |
| EAN | 4047101201307 |
| Electrical connection | Cable |
| Housing material | Plastic, PBT-GF30-V0 |
| Mounting | Flush |
| Operating voltage | 8.6…65 VDC |
| Output function | NO contact, PNP |
| Protection class | IP68/IP69K |
| Rated switching distance | 10 mm |
| Special Features | Commercial vehicle specification, Sn + |
| Switching frequency | 0.50 kHz |
| Weight | 114 g |
Frequently Asked Questions
How do I get pricing for 1584031?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1584031?
1584031 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1584031?
Key specifications include Ambient temperature: -40…+85 °C; Approvals: E1 type approval; Cable length (L): 2.0 m; Construction size: 52 x 30 x 14 mm, Q14. The full specification table on this page lists every published attribute for this part.
How quickly can 1584031 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

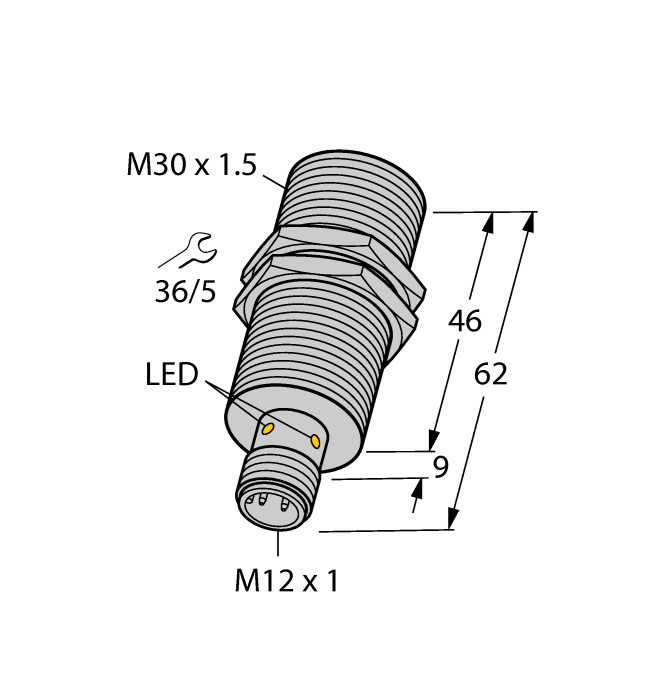

Turck Turck BI15-EM30-VP45XLD-H1141

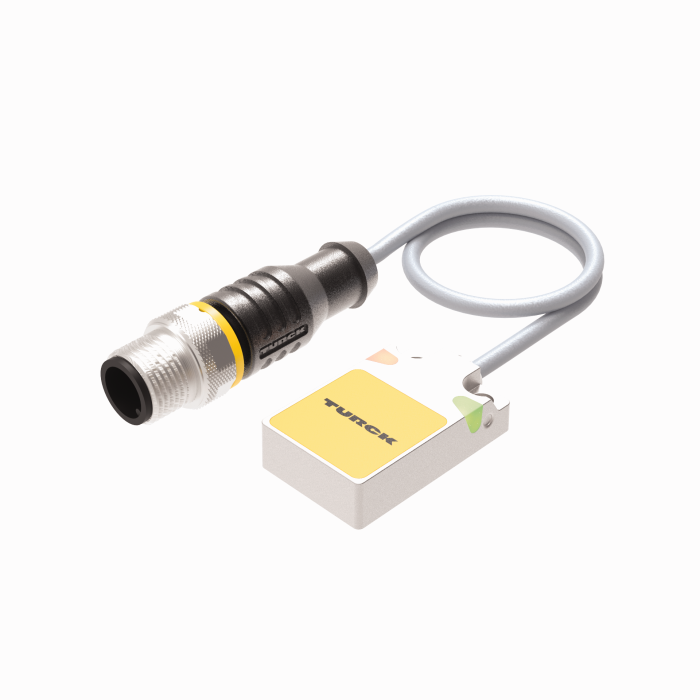

Turck Turck BI5-Q08-AP6X2/S34-1XOR-RS4

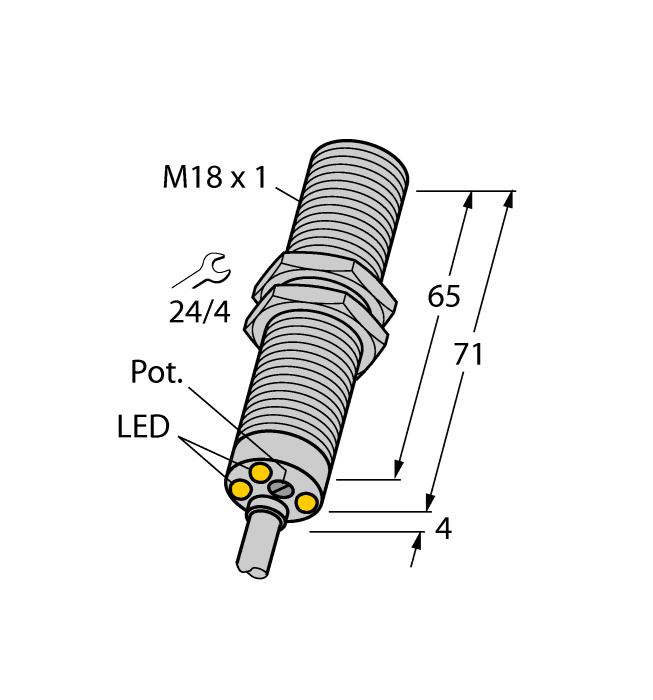

Turck Turck DBI5U-M18E-AP4X3
