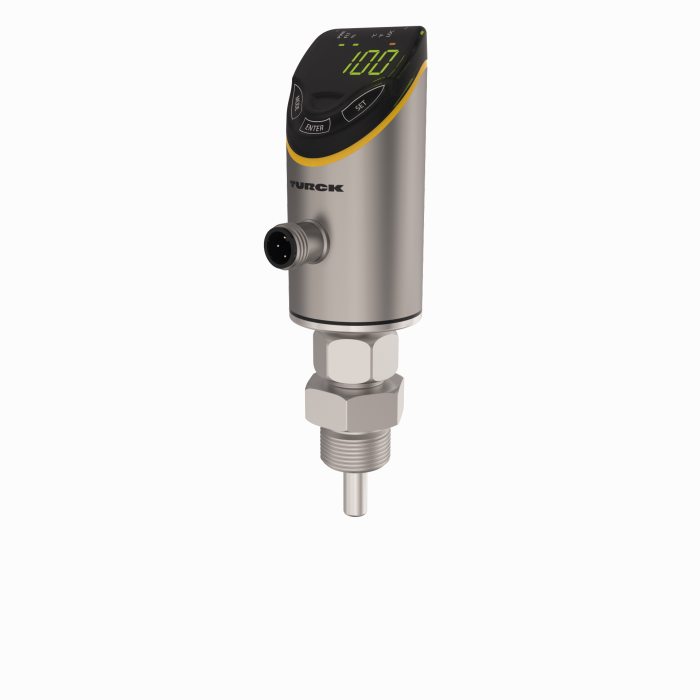

Turck FS101-300L-62-2UPN8-H1141
Screw-in adapter with process connection G1/2″ male thread included in delivery | Electronics housing material/media-contacting 1.4404 (316L)/1.4571 (316Ti) | Immersion depth 64.9 mm | 4-digit 12-segment display, rotatable by 180° | Flow monitoring for liquid media | Protection classes IP66, IP67 and IP69K | Adjustment of flow speed via teach function | 17…33 VDC | NO/NC contact, PNP/NPN output, IO-Link | Connector, M12 × 1
| Ambient temperature | -40…+80 °C |
|---|---|
| Approvals | CE, cULus |
| Bar length (L1) | 93 mm |
| Communication Protocol | IO-Link |
| Country of origin | DE |
| Design | With display (integrated probe) |
| EAN | 4047101559200 |
| Electrical connection | Connector, M12 × 1 |
| Function | Flow monitoring |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Immersion depth L | 64.9 mm |
| Medium | liquids |
| Medium temperature | -25…+85 °C |
| Operating voltage | 17…33 VDC |
| Output function | NO/NC programmable, PNP/NPN |
| Process Connection | G 1/2″ male thread |
| Protection class | IP66/IP67/IP69K |
| Weight | 200 g |
Frequently Asked Questions
How do I get pricing for 100030870?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100030870?
100030870 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 100030870?
Key specifications include Ambient temperature: -40…+80 °C; Approvals: CE, cULus; Bar length (L1): 93 mm; Communication Protocol: IO-Link. The full specification table on this page lists every published attribute for this part.
How quickly can 100030870 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
