Swagelok SS-QC4-B1-6M0K3 — Bulkhead Bodies

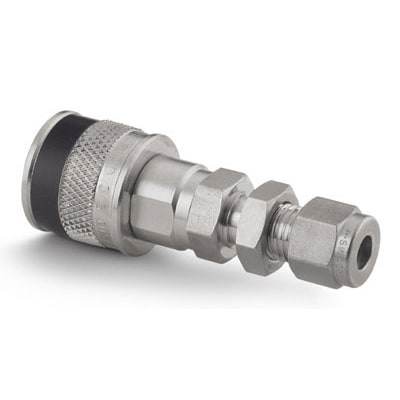

Swagelok Stainless Steel Instrumentation Quick Connect Bulkhead Body, 6 mm Swagelok Tube Fitting, Green Key (QC4 Series)
| Air Inclusion | 0.3 cm3 |
|---|---|
| Body material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 6 mm |
| Connection 1 Type | Swagelok® Tube Fitting |
| CV Maximum | 0.2 - If coupled with a DESO stem, 0.3 - If coupled with a SESO stem |
| Lubricant | Dow Corning 111 |
| O-Ring Material | Fluorocarbon FKM |
| Pressure Rating Coupled at Max Temp | 250 PSIG @ 400 °F /17.2 BAR @ 204 °C |
| Pressure Rating Coupled at Room Temp | 3000 PSIG @ 70 °F /206 BAR @ 21 °C |
| Pressure Rating Uncoupled at Room Temp | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Pressure/Temp Rating (Coupling and Uncoupling) | 250 PSIG @ 70 °F /17.2 BAR @ 21 °C |
| Series | QC4 |
| Special Sleeve | Green Keyed Sleeve |
| Spillage | 0.3 cm3 |
| Testing | 0.3 cm3 |
Frequently Asked Questions
How do I get pricing for SS-QC4-B1-6M0K3?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SS-QC4-B1-6M0K3?
SS-QC4-B1-6M0K3 is a Swagelok part. KKM Solutions sources Swagelok components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of SS-QC4-B1-6M0K3?
Key specifications include Air Inclusion: 0.3 cm3; Body material: 316 Stainless Steel; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 6 mm. The full specification table on this page lists every published attribute for this part.
