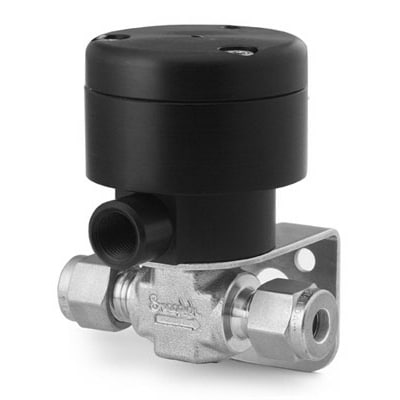

Swagelok SS-92S4-C-HT — Straight Pattern, with Actuator
Swagelok SS-92S4-C-HT - Straight Pattern, with Actuator - Actuator type: Pneumatic; Body material: 316 Stainless Steel; Connection 1 Type: Swagelok® Tube Fitting.
In our catalog, the SS-92S4-C-HT from Swagelok is listed under the Straight Pattern, with Actuator category. The manufacturer's published data for this part number specifies Actuator type: Pneumatic and Body material: 316 Stainless Steel.
Key manufacturer data on file for this item includes Connection 1 Type: Swagelok® Tube Fitting; Connection 2 Type: Swagelok® Tube Fitting; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 1/4 in.; Connection 2 Size: 1/4 in.; Maximum Temperature, °F (°C): 400 (204); Minimum Temperature, °F (°C): -20 (-28); CV Maximum: 0.2; Max Temperature Pressure Rating: 400°F @ 300 PSIG /204°C @ 20.6 BAR; Room Temperature Pressure Rating: 300 PSIG @ 100°F /20.6 BAR @ 37°C; Stem Tip Material: PTFE; Stem Type: Soft-Seat PTFE. See the Specifications tab on this page for the full technical table.
| Actuator Model | 92 Series |
|---|---|
| Actuator type | Pneumatic |
| Body material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 0.2 |
| Flow Pattern | Straight (2-way) |
| Max Temperature Pressure Rating | 400°F @ 300 PSIG /204°C @ 20.6 BAR |
| Maximum Temperature, °F (°C) | 400 (204) |
| Minimum Temperature, °F (°C) | -20 (-28) |
| Orifice | 0.125 in /3.2 mm |
| Room Temperature Pressure Rating | 300 PSIG @ 100°F /20.6 BAR @ 37°C |
| Stem Tip Material | PTFE |
| Stem Type | Soft-Seat PTFE |
Frequently Asked Questions
How do I get pricing for SS-92S4-C-HT?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SS-92S4-C-HT?
SS-92S4-C-HT is a Swagelok part. KKM Solutions sources Swagelok components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of SS-92S4-C-HT?
Key specifications include Actuator Model: 92 Series; Actuator type: Pneumatic; Body material: 316 Stainless Steel; Cleaning Process: Standard Cleaning and Packaging (SC-10). The full specification table on this page lists every published attribute for this part.
How quickly can SS-92S4-C-HT ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Swagelok Swagelok Stainless Steel Toggle Valve, 6 mm Swagelok Tube…
Swagelok Swagelok Stainless Steel High Pressure Bellows Sealed Valve, 1/4…
Swagelok Swagelok Stainless Steel High Pressure Bellows Sealed Valve, 6…
Swagelok Swagelok Stainless Steel Bellows Sealed Valve, Gasketed, PCTFE Stem…

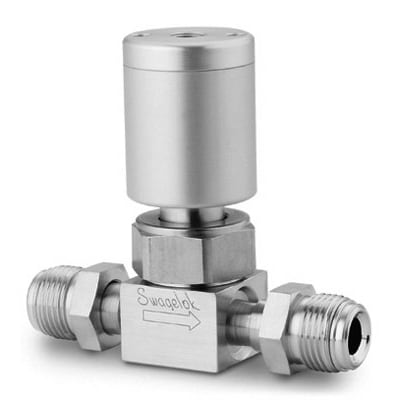

Swagelok Swagelok 316L VAR UHP High Flow Diaphragm Sealed Valve,…
