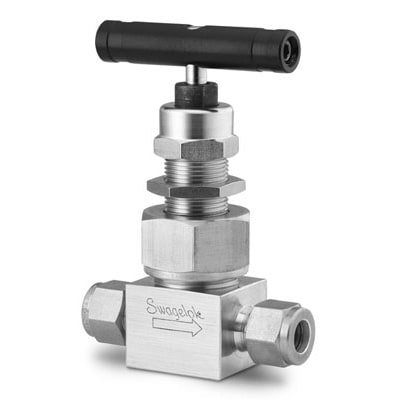

Swagelok SS-3NBS4 — Straight Pattern, Ball Stem
Swagelok SS-3NBS4 - Straight Pattern, Ball Stem - Body material: 316 Stainless Steel; Connection 1 Type: Swagelok® Tube Fitting; Connection 2 Type: Swagelok® Tube Fitting.
This listing covers the Swagelok SS-3NBS4, a part number in the Straight Pattern, Ball Stem category. The manufacturer's published data for this part number specifies Body material: 316 Stainless Steel and Connection 1 Type: Swagelok® Tube Fitting.
Key manufacturer data on file for this item includes Connection 2 Type: Swagelok® Tube Fitting; Handle Style: Aluminum Bar; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 1/4 in.; Connection 2 Size: 1/4 in.; Maximum Temperature, °F (°C): 450 (232); Minimum Temperature, °F (°C): -65 (-53); CV Maximum: 0.35; Max Temperature Pressure Rating: 450°F @ 4130 PSIG /232°C @ 284 BAR; Room Temperature Pressure Rating: 6000 PSIG @ 100°F /413 BAR @ 37°C; Stem Tip Material: Cobalt Based Alloy; Stem Type: Ball stem. The complete technical table is shown in the Specifications tab on this page.
| Body material | 316 Stainless Steel |
|---|---|
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 0.35 |
| Flow Pattern | Straight (2-way) |
| Handle Style | Aluminum Bar |
| Max Temperature Pressure Rating | 450°F @ 4130 PSIG /232°C @ 284 BAR |
| Maximum Temperature, °F (°C) | 450 (232) |
| Minimum Temperature, °F (°C) | -65 (-53) |
| Orifice | 0.156 in |
| Room Temperature Pressure Rating | 6000 PSIG @ 100°F /413 BAR @ 37°C |
| Stem Tip Material | Cobalt Based Alloy |
| Stem Type | Ball stem |
Frequently Asked Questions
How do I get pricing for SS-3NBS4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SS-3NBS4?
SS-3NBS4 is a Swagelok part. KKM Solutions sources Swagelok components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of SS-3NBS4?
Key specifications include Body material: 316 Stainless Steel; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 1/4 in.; Connection 1 Type: Swagelok® Tube Fitting. The full specification table on this page lists every published attribute for this part.
How quickly can SS-3NBS4 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

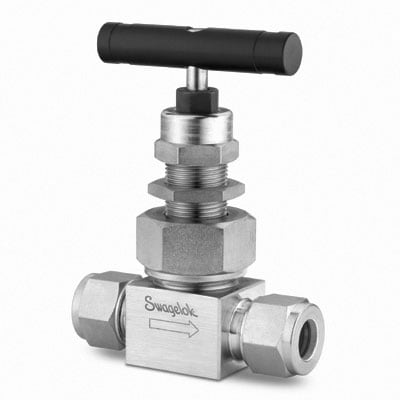

Swagelok Swagelok Stainless Steel Severe Service Union Bonnet Needle Valve,…
