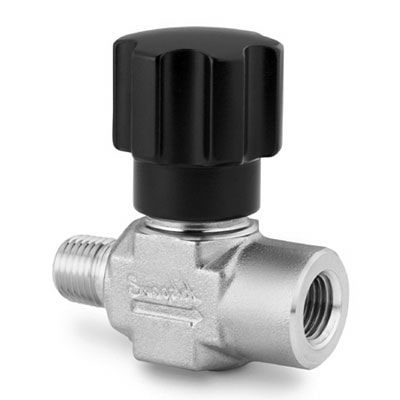

Swagelok SS-16DKM4-F4-1 — Straight Pattern, Non Rotating Stem
Swagelok Stainless Steel Integral Bonnet Non-Rotating Stem Valve, 0.53 Cv, 1/4 in. MNPT x 1/4 in. FNPT, 1900 psig (130 bar) Rupture Disc
| Body material | 316 Stainless Steel |
|---|---|
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Male NPT |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Female NPT |
| CV Maximum | 0.53 |
| Max Temperature Pressure Rating | 200°F @ 2580 PSIG /93°C @ 177 BAR |
| Maximum Temperature, °F (°C) | 200 (93) |
| Minimum Temperature, °F (°C) | -20 (-28) |
| Rupture Disc | 1900 psig (130 bar) |
| Stem Tip Material | PCTFE |
| Stem Type | Soft-Seat PCTFE |
Frequently Asked Questions
How do I get pricing for SS-16DKM4-F4-1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SS-16DKM4-F4-1?
SS-16DKM4-F4-1 is a Swagelok part. KKM Solutions sources Swagelok components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of SS-16DKM4-F4-1?
Key specifications include Body material: 316 Stainless Steel; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 1/4 in.; Connection 1 Type: Male NPT. The full specification table on this page lists every published attribute for this part.
How quickly can SS-16DKM4-F4-1 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
