Swagelok Brass 1-Piece 40 Series Ball Valve, 0.2 Cv, 1/8 in. Swagelok Tube Fitting
Swagelok B-41S2 - 2-Way Straight Pattern - Body material: Brass; Connection 1 Type: Swagelok® Tube Fitting; Connection 2 Type: Swagelok® Tube Fitting.
Swagelok B-41S2 is a 2-Way Straight Pattern catalog item from Swagelok. The manufacturer's published data for this part number specifies Body material: Brass and Connection 1 Type: Swagelok® Tube Fitting.
The specification set recorded for this part number covers Connection 2 Type: Swagelok® Tube Fitting; Handle Color: Black; Handle Style: Lever; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 1/8 in.; Connection 2 Size: 1/8 in.; Testing: Testing according to WS-22; CV Maximum: 0.2; Room Temperature Pressure Rating: 2500 PSIG @ 100°F /172 BAR @ 37°C; Low Emissions Certified: Yes; Ball/Stem Material: Brass; Flow Path: Standard. See the Specifications tab on this page for the full technical table.
| Ball/Stem Material | Brass |
|---|---|
| Body material | Brass |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/8 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 0.2 |
| Flow Path | Standard |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Low Emissions Certified | Yes |
| Orifice | 0.093 in /2.4 mm |
| Packing Material | PTFE |
| Ring/Disc Material | PTFE-Coated Brass |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Service Class | General |
| Testing | Testing according to WS-22 |
Frequently Asked Questions
How do I get pricing for B-41S2?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the B-41S2?
B-41S2 is a Swagelok part. KKM Solutions sources Swagelok components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of B-41S2?
Key specifications include Ball/Stem Material: Brass; Body material: Brass; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 1/8 in.. The full specification table on this page lists every published attribute for this part.
How quickly can B-41S2 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Swagelok Swagelok Brass 1-Piece 40 Series Ball Valve, 1.4 Cv,…

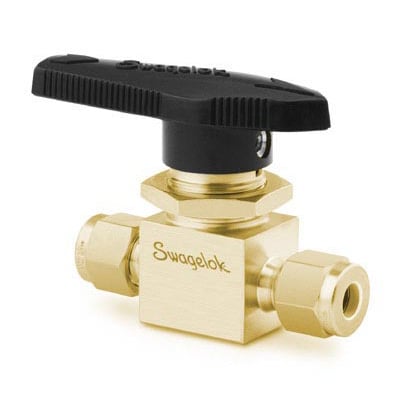

Swagelok Swagelok Brass 1-Piece 40 Series Ball Valve, 6.0 Cv,…

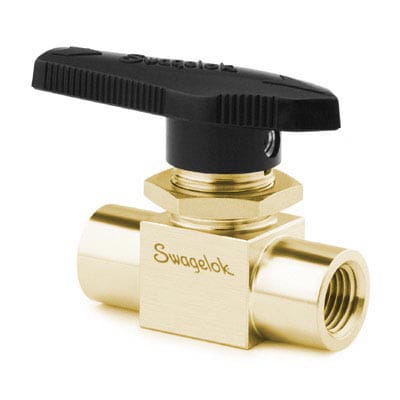

Swagelok Swagelok Brass 1-Piece 40 Series Ball Valve, 6.3 Cv,…
Swagelok Swagelok Stainless Steel 3-Piece High Pressure Alternative Fuel Service…

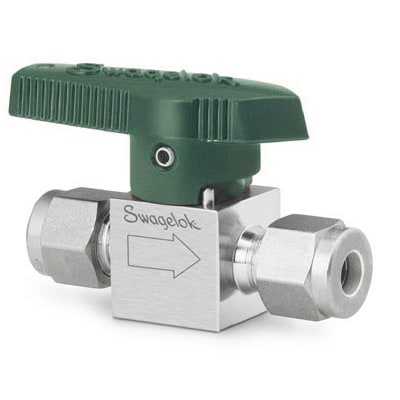

Swagelok Swagelok Stainless Steel Quarter Turn Instrument Plug Valve, 1/2…
