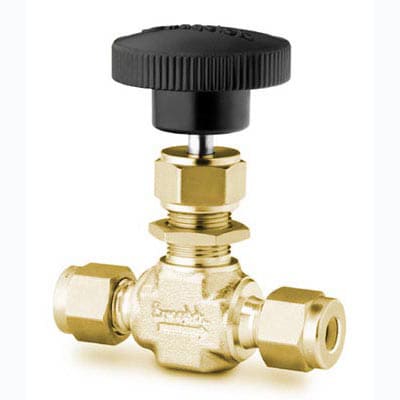

Swagelok B-1VS6 — Straight Pattern, Vee Stem
Swagelok B-1VS6 - Straight Pattern, Vee Stem - Body material: Brass; Connection 1 Type: Swagelok® Tube Fitting; Connection 2 Type: Swagelok® Tube Fitting.
The Swagelok B-1VS6 is part of the Straight Pattern, Vee Stem range in our industrial catalog. The manufacturer's published data for this part number specifies Body material: Brass and Connection 1 Type: Swagelok® Tube Fitting.
The specification set recorded for this part number covers Connection 2 Type: Swagelok® Tube Fitting; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 3/8 in.; Connection 2 Size: 3/8 in.; Maximum Temperature, °F (°C): 400 (204); Minimum Temperature, °F (°C): -65 (-53); CV Maximum: 0.73; Max Temperature Pressure Rating: 400°F @ 390 PSIG /204°C @ 26 BAR; Low Emissions Certified: Yes; Stem Type: Vee. See the Specifications tab on this page for the full technical table.
| Body material | Brass |
|---|---|
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 3/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 3/8 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 0.73 |
| Low Emissions Certified | Yes |
| Max Temperature Pressure Rating | 400°F @ 390 PSIG /204°C @ 26 BAR |
| Maximum Temperature, °F (°C) | 400 (204) |
| Minimum Temperature, °F (°C) | -65 (-53) |
| Stem Type | Vee |
Frequently Asked Questions
How do I get pricing for B-1VS6?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the B-1VS6?
B-1VS6 is a Swagelok part. KKM Solutions sources Swagelok components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of B-1VS6?
Key specifications include Body material: Brass; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 3/8 in.; Connection 1 Type: Swagelok® Tube Fitting. The full specification table on this page lists every published attribute for this part.
How quickly can B-1VS6 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

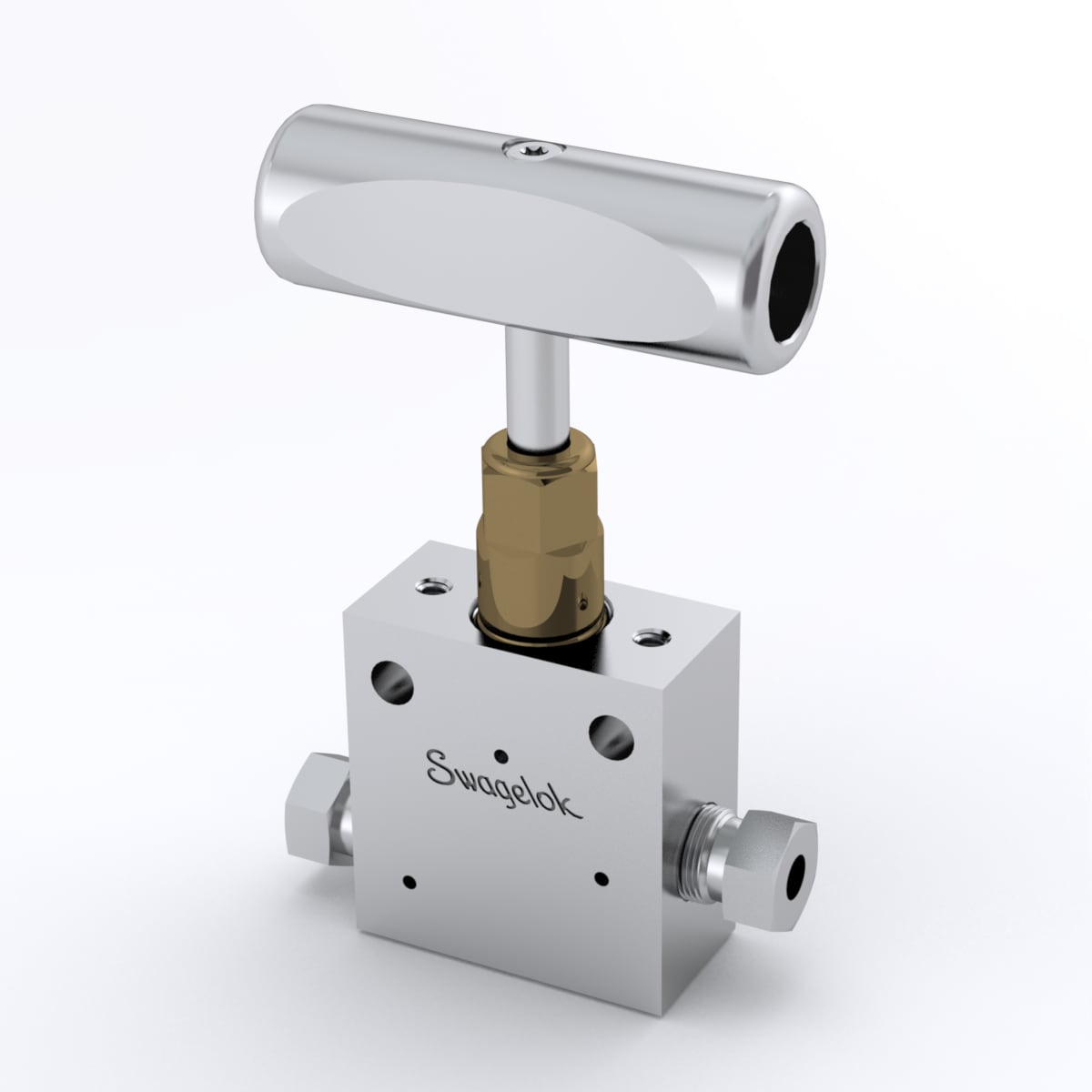

Swagelok Swagelok 316 Stainless Steel IPT NVT Series Needle Valve,…
Swagelok Swagelok Stainless Steel Integral Bonnet Needle Valve, 0.37 Cv,…

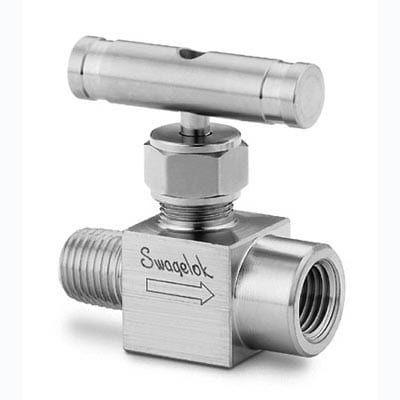

Swagelok Swagelok Stainless Steel Integral Bonnet Needle Valve, 0.21 Cv,…
Swagelok Swagelok Stainless Steel Integral Bonnet Needle Valve, 1.80 Cv,…

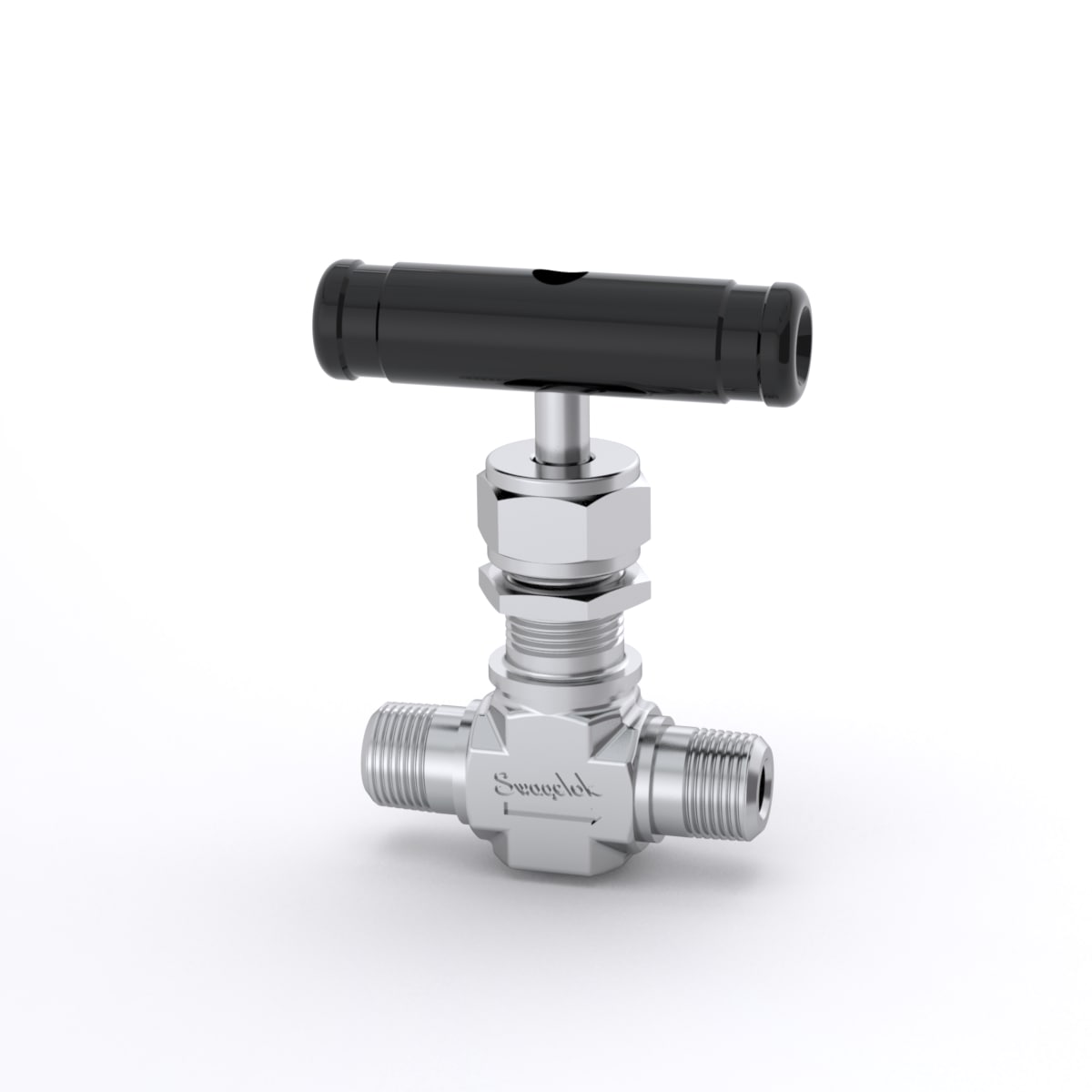

Swagelok Swagelok Stainless Steel Integral Bonnet Needle Valve, 0.09 Cv,…
