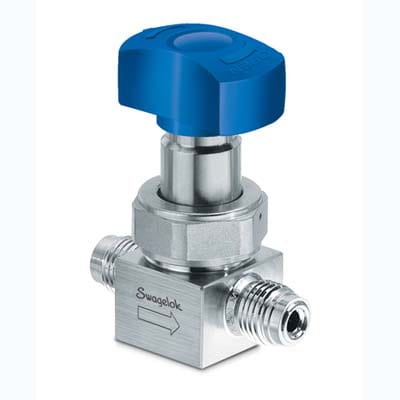

Swagelok 6LVV-DPVR4-P — Straight Pattern, Manual Actuation
Swagelok 6LVV-DPVR4-P - Straight Pattern, Manual Actuation - Actuator type: Manual; Body material: 316L VIM-VAR; Connection 1 Type: Face Seal (Metal Gasket) Male VCR.
Swagelok 6LVV-DPVR4-P is a Straight Pattern, Manual Actuation catalog item from Swagelok. The manufacturer's published data for this part number specifies Actuator type: Manual and Body material: 316L VIM-VAR.
The specification set recorded for this part number covers Connection 1 Type: Face Seal (Metal Gasket) Male VCR; Connection 2 Type: Face Seal (Metal Gasket) Male VCR; Handle Color: Blue; Handle Style: Directional; Cleaning Process: Ultrahigh-Purity Process Specification (SC-01); Connection 1 Size: 1/4 in.; Connection 2 Size: 1/4 in.; Maximum Temperature, °F (°C): 150 (65); Minimum Temperature, °F (°C): -10 (-23); CV Maximum: 0.27; Max Temperature Pressure Rating: 150°F @ 250 PSIG /65°C @ 17.2 BAR; Room Temperature Pressure Rating: 250 PSIG @ 70°F /17.2 BAR @ 20°C. The complete technical table is shown in the Specifications tab on this page.
| Actuator type | Manual |
|---|---|
| Body material | 316L VIM-VAR |
| Cleaning Process | Ultrahigh-Purity Process Specification (SC-01) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Face Seal (Metal Gasket) Male VCR |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Face Seal (Metal Gasket) Male VCR |
| CV Maximum | 0.27 |
| Flow Pattern | Straight (2-way) |
| Handle Color | Blue |
| Handle Style | Directional |
| Max Temperature Pressure Rating | 150°F @ 250 PSIG /65°C @ 17.2 BAR |
| Maximum Temperature, °F (°C) | 150 (65) |
| Minimum Temperature, °F (°C) | -10 (-23) |
| Room Temperature Pressure Rating | 250 PSIG @ 70°F /17.2 BAR @ 20°C |
| Seat Material | PCTFE |
| Surface Finish | 5 µin (0.13 µm) Ra |
Frequently Asked Questions
How do I get pricing for 6LVV-DPVR4-P?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 6LVV-DPVR4-P?
6LVV-DPVR4-P is a Swagelok part. KKM Solutions sources Swagelok components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 6LVV-DPVR4-P?
Key specifications include Actuator type: Manual; Body material: 316L VIM-VAR; Cleaning Process: Ultrahigh-Purity Process Specification (SC-01); Connection 1 Size: 1/4 in.. The full specification table on this page lists every published attribute for this part.
How quickly can 6LVV-DPVR4-P ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

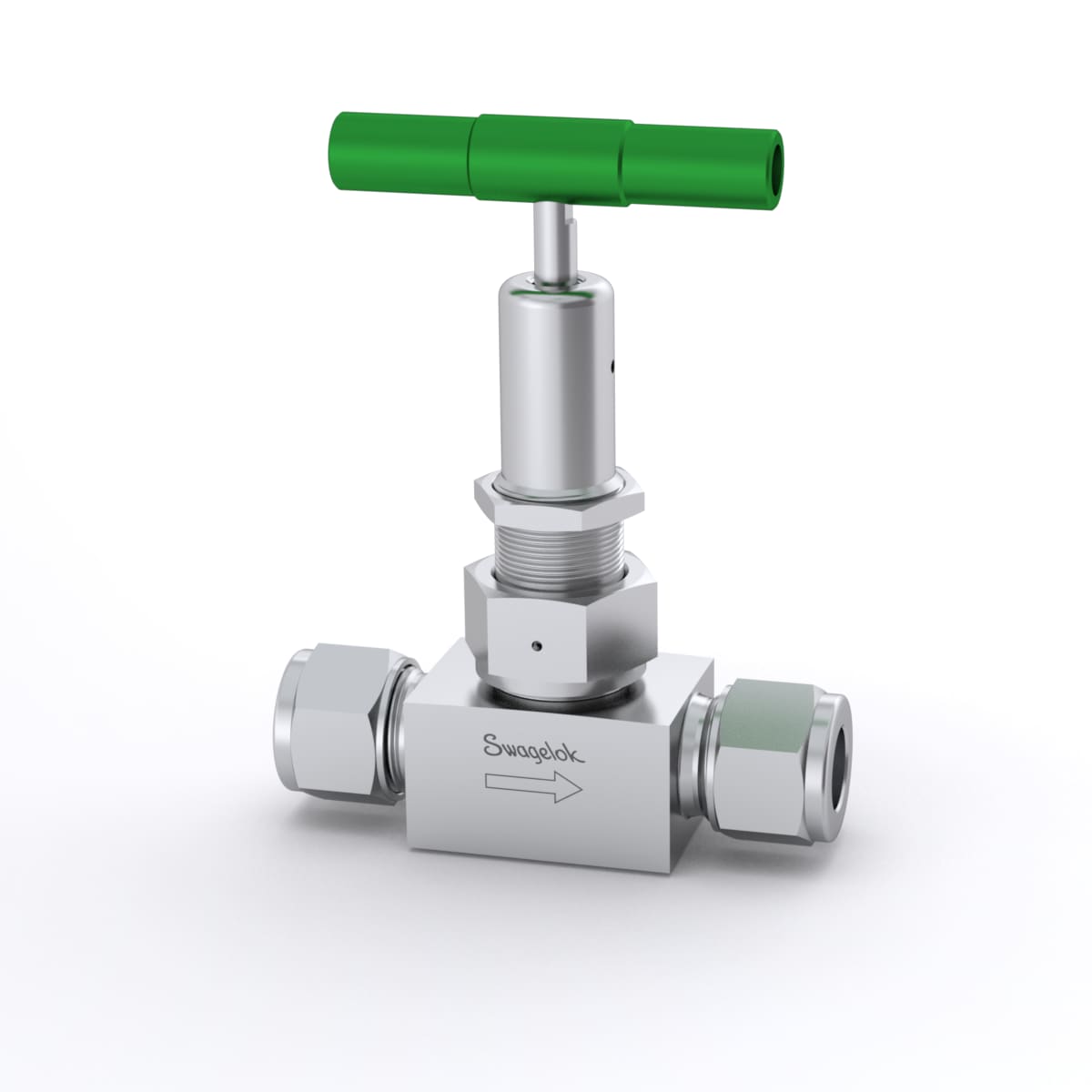

Swagelok Swagelok Stainless Steel Bellows Sealed Valve, Gasketed, Spherical Stem…
Swagelok Swagelok Stainless Steel Bellows Sealed Valve, Welded, Spherical Stem…

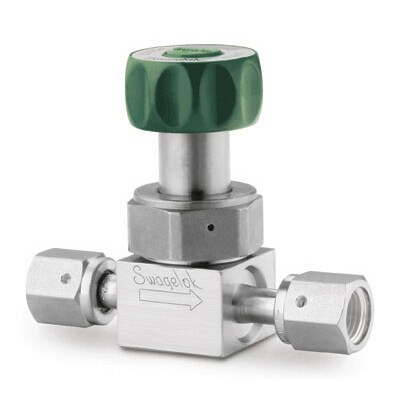

Swagelok Swagelok 316L VAR UHP High Flow Diaphragm Sealed Valve,…
Swagelok Swagelok 316L VIM-VAR UHP Diaphragm Sealed Valve, 1/4 in.…

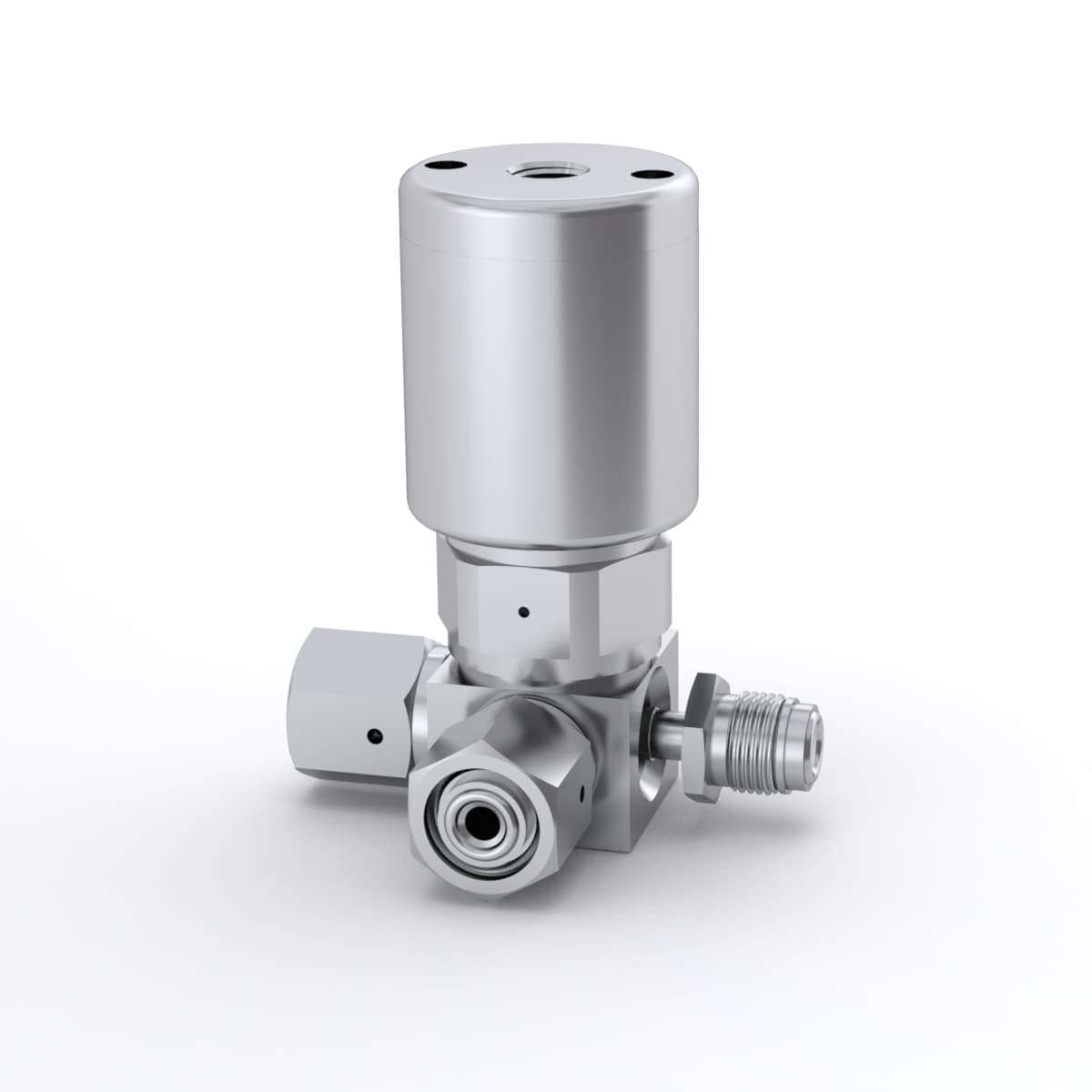

Swagelok Swagelok 316L VIM-VAR UHP High Flow 3-Port Diaphragm Sealed…
