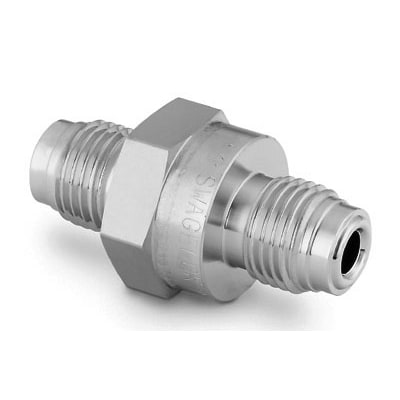

Swagelok 6L-CW4VR8-P — Fixed Pressure
Swagelok 6L-CW4VR8-P - Fixed Pressure - Body material: 316L Stainless Steel; Seal Material: Fluorocarbon FKM; Connection 1 Type: Face Seal (Metal Gasket) Male VCR.
In our catalog, the 6L-CW4VR8-P from Swagelok is listed under the Fixed Pressure category. The manufacturer's published data for this part number specifies Body material: 316L Stainless Steel and Seal Material: Fluorocarbon FKM.
Published specifications for this part include Connection 1 Type: Face Seal (Metal Gasket) Male VCR; Connection 2 Type: Face Seal (Metal Gasket) Male VCR; Cracking Pressure: 2 psi (0.14 bar, 0.014 MPa); Cleaning Process: Ultrahigh-Purity Process Specification (SC-01); Connection 1 Size: 1/2 in.; Connection 2 Size: 1/2 in.; CV Maximum: 0.7; Wetted Surface Roughness: 8 μin. (0.20 μm) average, machine finished and electropolished. The complete technical table is shown in the Specifications tab on this page.
| Body material | 316L Stainless Steel |
|---|---|
| Cleaning Process | Ultrahigh-Purity Process Specification (SC-01) |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Face Seal (Metal Gasket) Male VCR |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Face Seal (Metal Gasket) Male VCR |
| Cracking Pressure | 2 psi (0.14 bar, 0.014 MPa) |
| CV Maximum | 0.7 |
| Seal Material | Fluorocarbon FKM |
| Wetted Surface Roughness | 8 μin. (0.20 μm) average, machine finished and electropolished |
Frequently Asked Questions
How do I get pricing for 6L-CW4VR8-P?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 6L-CW4VR8-P?
6L-CW4VR8-P is a Swagelok part. KKM Solutions sources Swagelok components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 6L-CW4VR8-P?
Key specifications include Body material: 316L Stainless Steel; Cleaning Process: Ultrahigh-Purity Process Specification (SC-01); Connection 1 Size: 1/2 in.; Connection 1 Type: Face Seal (Metal Gasket) Male VCR. The full specification table on this page lists every published attribute for this part.
How quickly can 6L-CW4VR8-P ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
