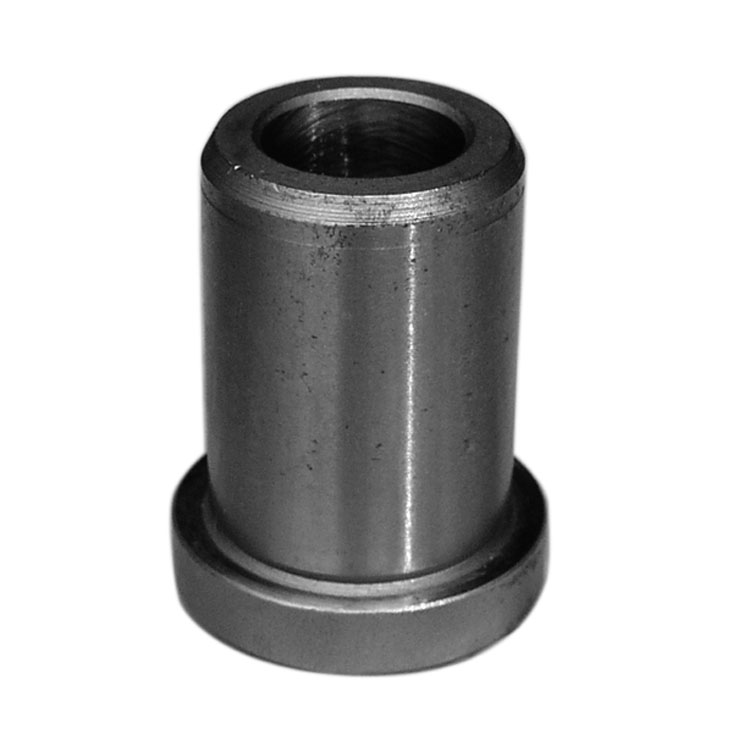

Smith Bearing H Type Head Press Fit H-16-12
| ANSI Remark | All bushing are finished ground unless the letter "U" appears with the bushing type or the ANSI symbol |
|---|---|
| I.D. Range Size (in) | .0980 - .1406 |
| Inside Diameter Range Size (A) | #40 - 9/64” |
| Length Inches (C) | 3/4 |
| Length Remark | Counterbore, leaving correct drill bearing and chip clearance. Metric sizes are available |
| O.D Unground Ground Size (max) | .265 |
| O.D. Finish Size (max) | .2516 |
| O.D. Finish Size (min) | .2513 |
| O.D. Unground Size (min) | .260 |
| Outside Diameter (B) | 1/4" |
| Press Fit Dim (G) | 3/32" |
| Press Fit Dim. (F) | 23/64" |
| Price Code | 145 |
Frequently Asked Questions
How do I get pricing for H-16-12?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the H-16-12?
H-16-12 is a Smith Bearing part. KKM Solutions sources Smith Bearing components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of H-16-12?
Key specifications include ANSI Remark: All bushing are finished ground unless the letter "U" appears with the bushing type or the ANSI symbol; I.D. Range Size (in): .0980 - .1406; Inside Diameter Range Size (A): #40 - 9/64”; Length Inches (C): 3/4. The full specification table on this page lists every published attribute for this part.
How quickly can H-16-12 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
