Smith Bearing H Type Head Press Fit H-13-5
| ANSI Remark | All bushing are finished ground unless the letter "U" appears with the bushing type or the ANSI symbol |
|---|---|
| I.D. Range Size (in) | .0135 - .0280 |
| Inside Diameter Range Size (A) | #80 - #70 |
| Length Inches (C) | 5/16 |
| O.D Unground Ground Size (max) | .219 |
| O.D. Finish Size (max) | .2046 |
| O.D. Finish Size (min) | .2043 |
| O.D. Unground Size (min) | .216 |
| Outside Diameter (B) | 13/64" |
| Press Fit Dim (G) | 3/32" |
| Press Fit Dim. (F) | 19/64" |
| Price Code | 211 |
Frequently Asked Questions
How do I get pricing for H-13-5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the H-13-5?
H-13-5 is a Smith Bearing part. KKM Solutions sources Smith Bearing components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of H-13-5?
Key specifications include ANSI Remark: All bushing are finished ground unless the letter "U" appears with the bushing type or the ANSI symbol; I.D. Range Size (in): .0135 - .0280; Inside Diameter Range Size (A): #80 - #70; Length Inches (C): 5/16. The full specification table on this page lists every published attribute for this part.
How quickly can H-13-5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

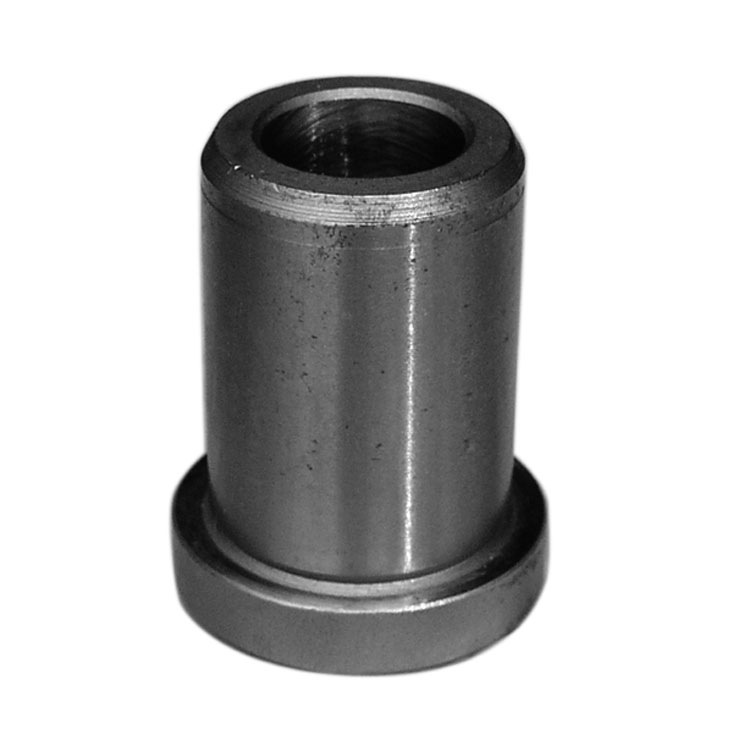

Smith Bearing Smith Bearing H Type Head Press Fit H-13-4
