SICK V3S145-1AAAACA OD Core (Visionary-T Mini)
| AI accelerator | No |
|---|---|
| Ambient operating temperature | -10 °C ... 50 °C |
| Ambient operating temperature max. | 50 |
| Ambient operating temperature min. | -10 |
| Application software | 3D Object Detection Core |
| Certificate | EU declaration of conformity, UK declaration of conformity, ACMA declaration of conformity, China RoHS, cULus certificate, Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
| Communication interface | Ethernet, REST API |
| Configurable | Yes |
| Configuration software | SICK AppManager, SICK AppStudio, Web-Interface, Telegram interface |
| Description of SensorApp | For collision avoidance on mobile platforms. |
| Enclosure rating | IP65, IP67, IP69 |
| Factory calibrated | Yes |
| Field of view | 70° x 60° |
| Illumination color | infrared |
| Integrated application | The installed 3D Object Detection SICK SensorApp allows flexibly customizable collision avoidance for mobile platforms. The data is processed within the device. The SICK SensorApp can be deinstalled. |
| Laser class | 1 |
| License included | 3D Object Detection Core |
| Max. working distance | 9 |
| New products | No |
| Product | Visionary-T Mini |
| Product segment | machine vision |
| Product subsegment | 3D machine vision |
| Product version | Visionary-T Mini AP |
| Programmable | Yes |
| Scan/frame rate | ≤ 30 fps |
| Scope of delivery | Hardware, software, Software license (Core) |
| Sensor resolution | 512 px x 424 px |
| Streaming | No |
| Task | Detecting - Standard objects, Measuring - Dimension, contour and volume, Localizing, navigating and guiding - Guiding, Determining position - 3D position determination |
| Technology | 3D snapshot time-of-flight |
| Variant | Visionary-T Mini AP: Custom software solutions can be implemented on the device. SICK also offers turnkey software solutions (SICK SensorApps). |
| Window material | PMMA |
Frequently Asked Questions
How do I get pricing for V3S145-1AAAACA OD Core?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the V3S145-1AAAACA OD Core?
V3S145-1AAAACA OD Core is a SICK part. KKM Solutions sources SICK components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of V3S145-1AAAACA OD Core?
Key specifications include AI accelerator: No; Ambient operating temperature: -10 °C ... 50 °C; Ambient operating temperature max.: 50; Ambient operating temperature min.: -10. The full specification table on this page lists every published attribute for this part.
How quickly can V3S145-1AAAACA OD Core ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

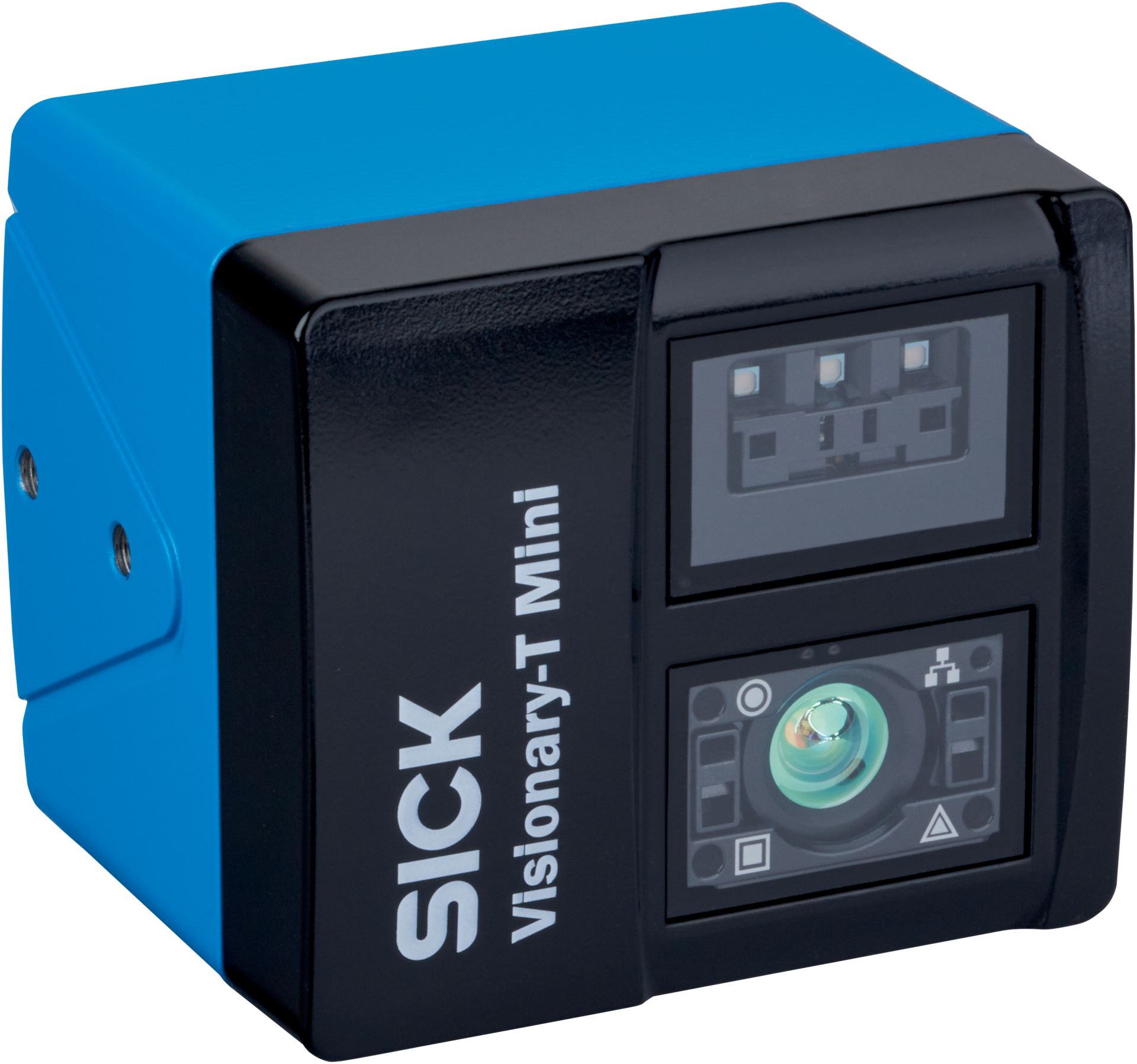

SICK SICK V3S105-1AAAAAD (Visionary-T Mini)
SICK SICK V3S145-1AAAADA OD Prime (Visionary-T Mini)

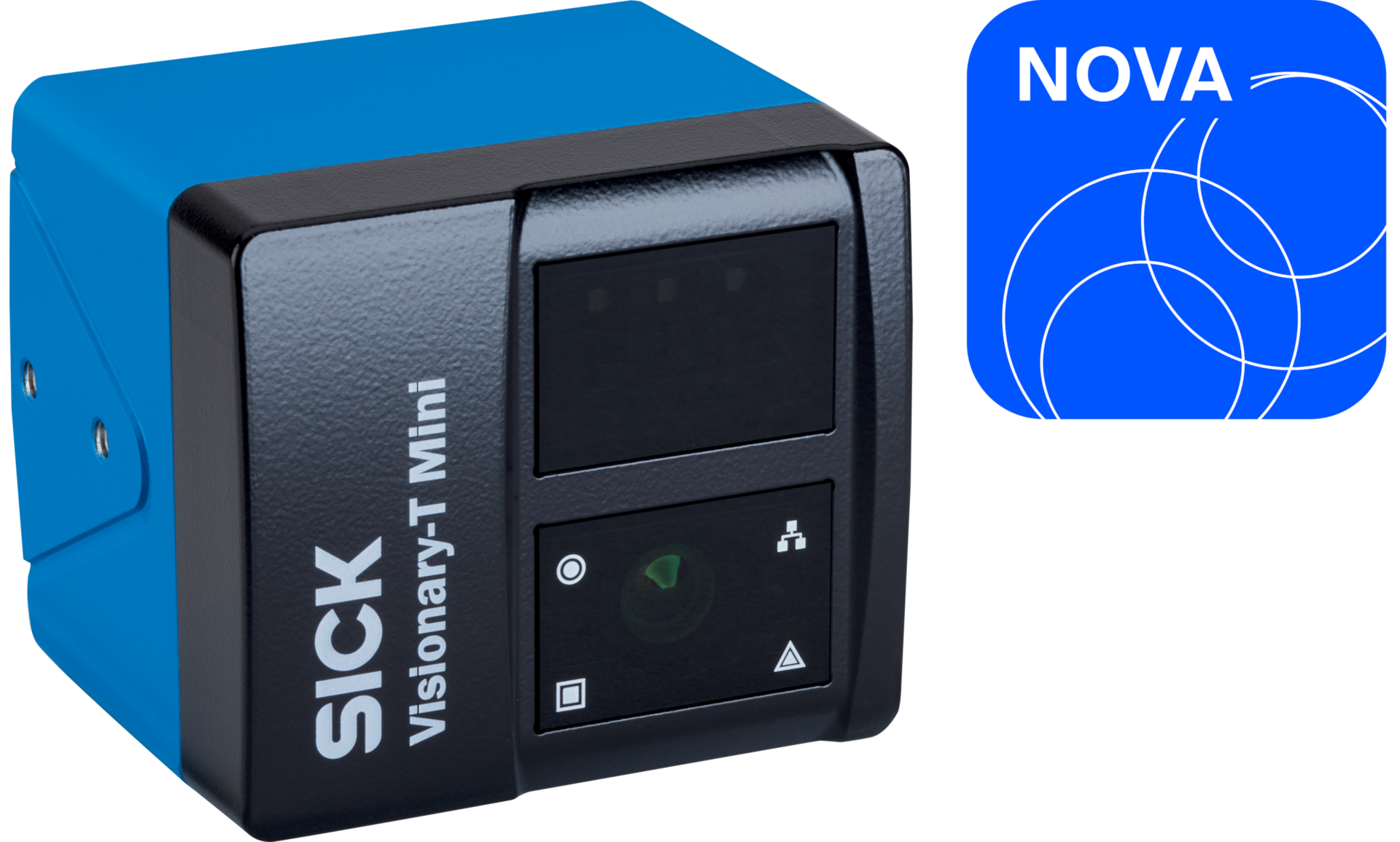

SICK SICK V3S145-1AAAAPA NOVA PI (Visionary-T Mini)
SICK SICK V3S145-1AAAARA NOVA QI (Visionary-T Mini)

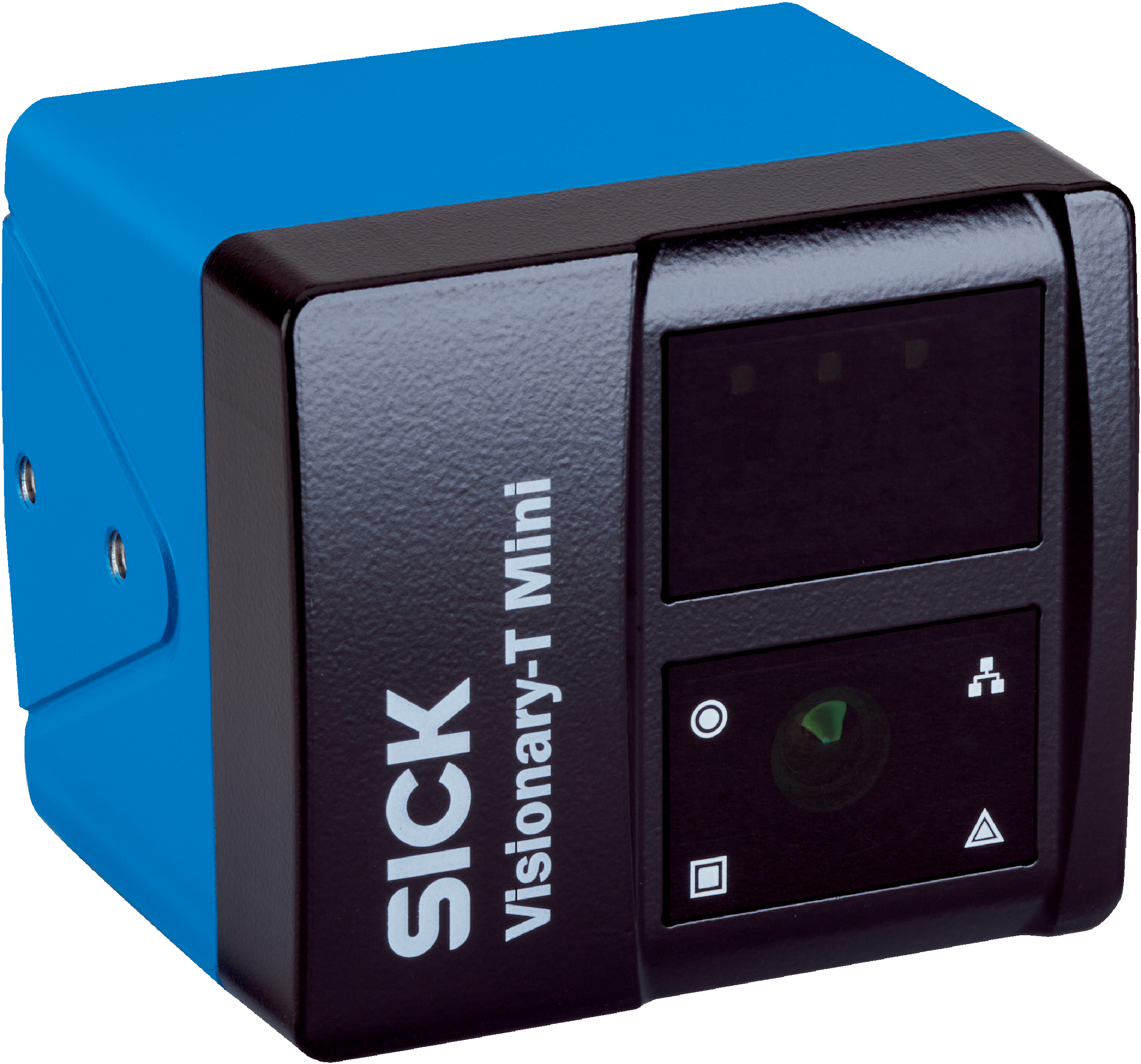

SICK SICK V3S145-1AAAAAA (Visionary-T Mini)
