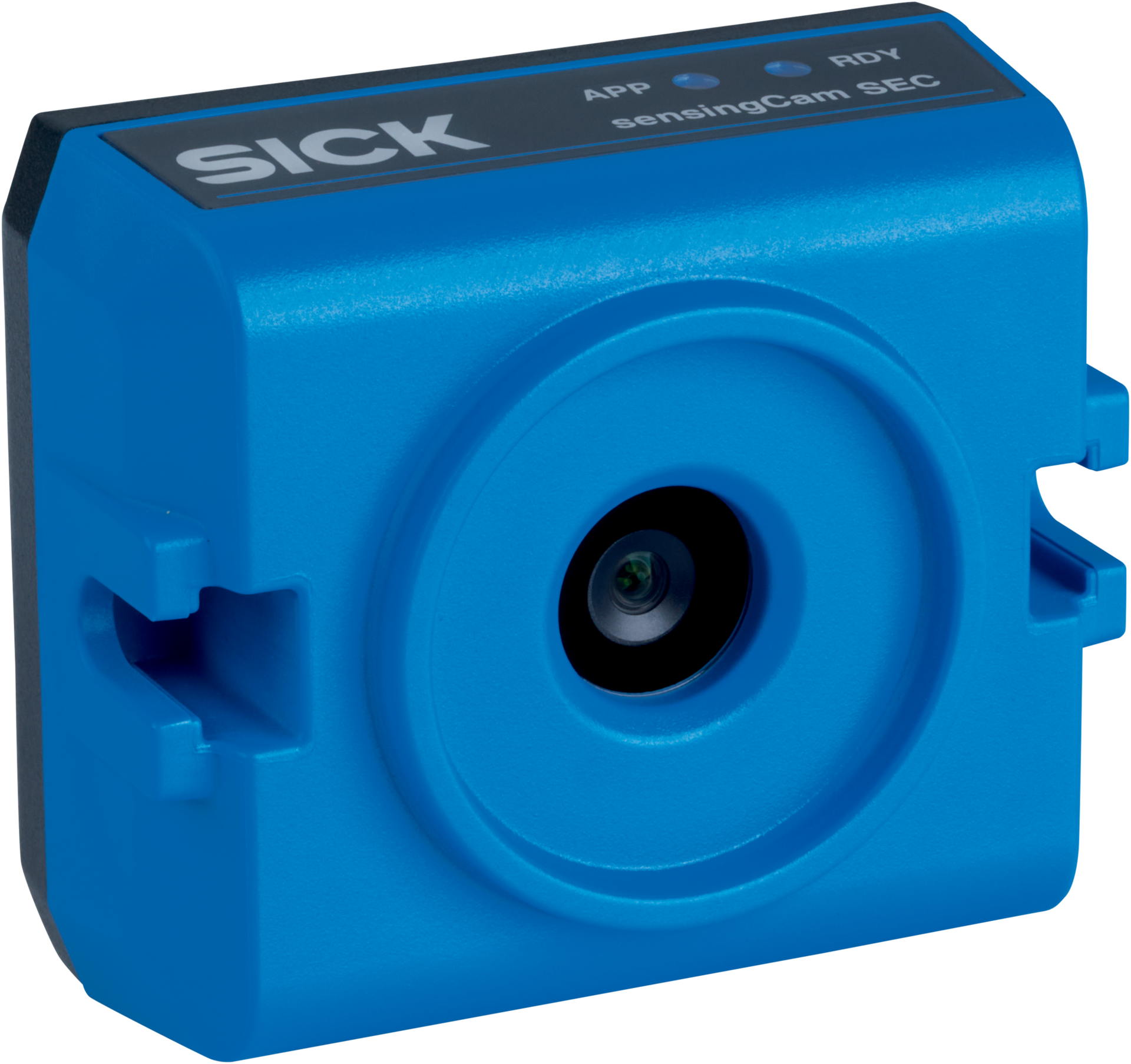

SICK SEC110-5C9D1SFZZZZ (sensingCam SEC100)
| Ambient operating temperature | 0 °C ... 50 °C, Optimal image quality at 10 °C ... +40 °C |
|---|---|
| Ambient operating temperature max. | 50 |
| Ambient operating temperature min. | 0.000000 |
| Certificate | EU declaration of conformity, UK declaration of conformity, ACMA declaration of conformity, Moroccan declaration of conformity, China RoHS, China Compulsory Product Certification (CCC) exempt, cULus certificate, KC Mark certificate, Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
| Communication interface | REST API, Ethernet |
| Configurable | No |
| Configuration software | Web server integrated |
| Enclosure rating | IP65 |
| Factory calibrated | No |
| Field of view | 82° x 52° |
| Image sensor | CMOS Color |
| Lens | integrated |
| Max. working distance | 10 |
| Min. working distance | 0.3 |
| New products | No |
| Optical focus | Fixed focus |
| Product | sensingCam SEC100 |
| Product segment | machine vision |
| Product subsegment | 2D machine vision |
| Programmable | No |
| Scan/frame rate | 5 fps ... 30 fps |
| Sensor resolution | 2880 px x 1616 px (5 MP) |
| Streaming | Yes |
| Task | Monitoring and controlling - Quality, Monitoring and controlling - Processes, Monitoring and controlling - Plants and machines, Processing data - Error analysis |
| Technology | 2D snapshot, Event recording, Streaming |
| Width at maximum operating distance | 8690 |
| Window material | Glass |
Frequently Asked Questions
How do I get pricing for SEC110-5C9D1SFZZZZ?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SEC110-5C9D1SFZZZZ?
SEC110-5C9D1SFZZZZ is a SICK part. KKM Solutions sources SICK components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of SEC110-5C9D1SFZZZZ?
Key specifications include Ambient operating temperature: 0 °C ... 50 °C, Optimal image quality at 10 °C ... +40 °C; Ambient operating temperature max.: 50; Ambient operating temperature min.: 0; Certificate: EU declaration of conformity, UK declaration of conformity, ACMA declaration of conformity, Moroccan declaration of conformity, China RoHS, China Compulsory Product Certification (CCC) exempt, cULus certificate, KC Mark certificate, Information according to Art. 3 of Data Act (Regulation EU 2023/2854). The full specification table on this page lists every published attribute for this part.
How quickly can SEC110-5C9D1SFZZZZ ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
