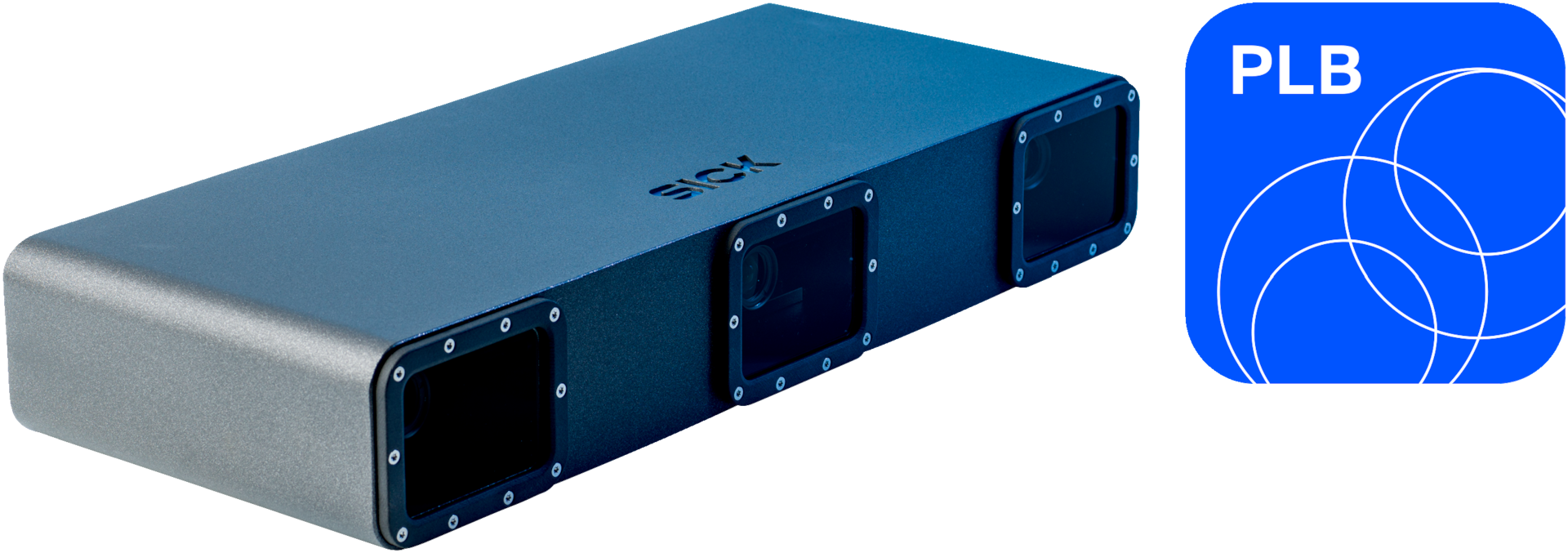

SICK PLB-5340100 (PLB)
| Application | Bin picking, Depalletizing, Tire picking, Belt picking in automotive processing |
|---|---|
| Calibration | Yes |
| Camera installation | Stationary camera |
| Certificate | EU declaration of conformity, ACMA declaration of conformity, China RoHS, Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
| Classification | Prime |
| Dimensions (L x W x H) | 488 mm x 200 mm x 80 mm |
| Enclosure rating | IP54 |
| Example volume of view (L x W x H) | 1,300 mm x 1,200 mm x 1,000 mm |
| Field of view | large |
| Image resolution | 0.4 mm ... 1 mm, depending on the distance to the camera |
| Light source | LED, blue, 465 nm |
| Maximum image resolution | 1 mm |
| Measured values | Positioning |
| Minimum image resolution | 0.4 mm |
| New products | No |
| Object movement | static |
| Part characteristics | Simple and complex part shapes |
| Part localization time | 3 s ... 10 s, typical |
| Product segment | Robot guidance systems |
| Product version | PLB-520 5MP |
| Task | Localizing, navigating and guiding - Guiding |
| Technology | 2D grayscales, 3D snapshot |
| Topic of focus | Robot Vision |
| Vision system | Yes |
| Weight | 2500 g |
Frequently Asked Questions
How do I get pricing for PLB-5340100?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the PLB-5340100?
PLB-5340100 is a SICK part. KKM Solutions sources SICK components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of PLB-5340100?
Key specifications include Application: Bin picking, Depalletizing, Tire picking, Belt picking in automotive processing; Calibration: Yes; Camera installation: Stationary camera; Certificate: EU declaration of conformity, ACMA declaration of conformity, China RoHS, Information according to Art. 3 of Data Act (Regulation EU 2023/2854). The full specification table on this page lists every published attribute for this part.
How quickly can PLB-5340100 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
SICK SICK PLB-52B0102 (PLB)
SICK SICK PLB-5340101 (PLB)

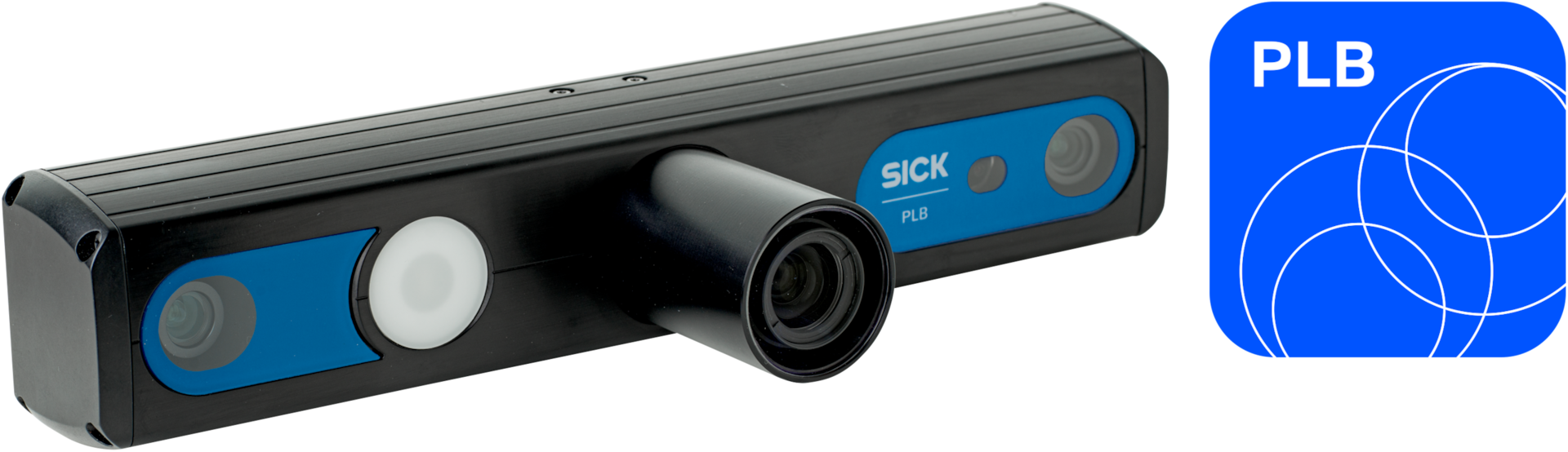

SICK SICK PLB-52B0101 (PLB)
