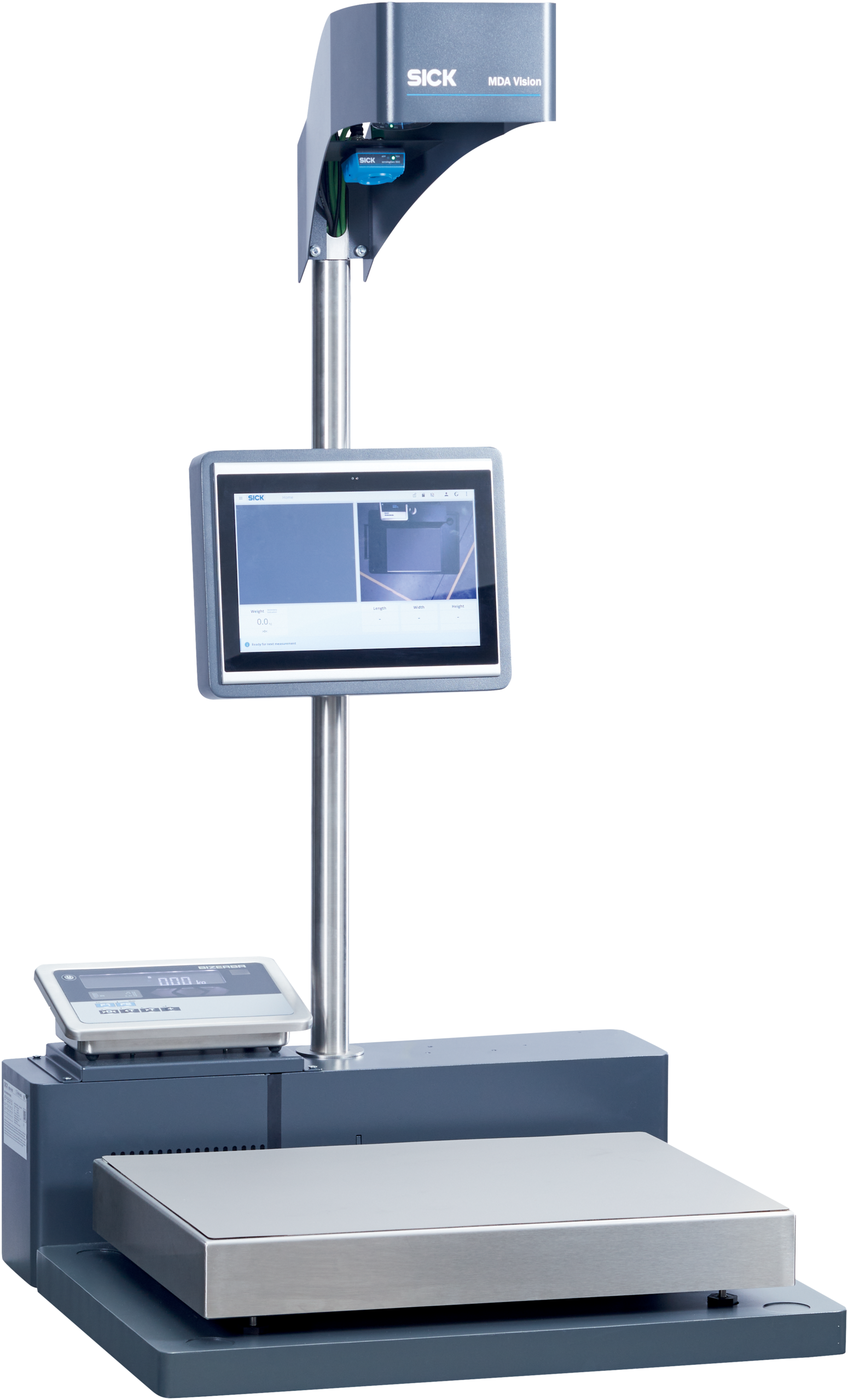

SICK MDAV-30521002xx (MDAV MID) (Master Data Analyzer Vision)
| Application | Volume recording, Weight recording, Code identification, Image capture |
|---|---|
| Certificate | EU declaration of conformity, UK declaration of conformity, China RoHS |
| Certification | MID (dimensioning), NAWID (scale) |
| Codes/data cards | 1D, 2D, Stacked code, PDF417, Aztec, 4-state, Maxi-Code |
| Color image properties | High resolution (5 MP), Cropped to object (optional) |
| Communication interface | Ethernet |
| Handheld scanner | No |
| Items supplied | MDAV Basis including Visionary-S (1146329), Lector 83x (1149572), SEC100 (1143217), platform scale, Power supply unit (2120760) |
| Maximum object size | 600 mm x 500 mm x 400 mm (up to), 800 mm x 500 mm x 200 mm |
| Measurement accuracy of object size detection | Legal-for-trade in accordance with MID:, ± 5 mm x ± 5 mm x ± 2 mm (Cubic objects) |
| New products | No |
| Object infeed and outfeed | manual |
| Object movement | static |
| Product | Master Data Analyzer Vision |
| Product segment | Track and trace systems |
| Side-by-side | No |
| Task | Measuring - Dimension, contour and volume, Measuring - Weight |
| Technology | 3D snapshot |
| Throughput | 1200 pph |
| Topic of focus | Logistics |
| Touching objects | No |
| Vision system | Yes |
