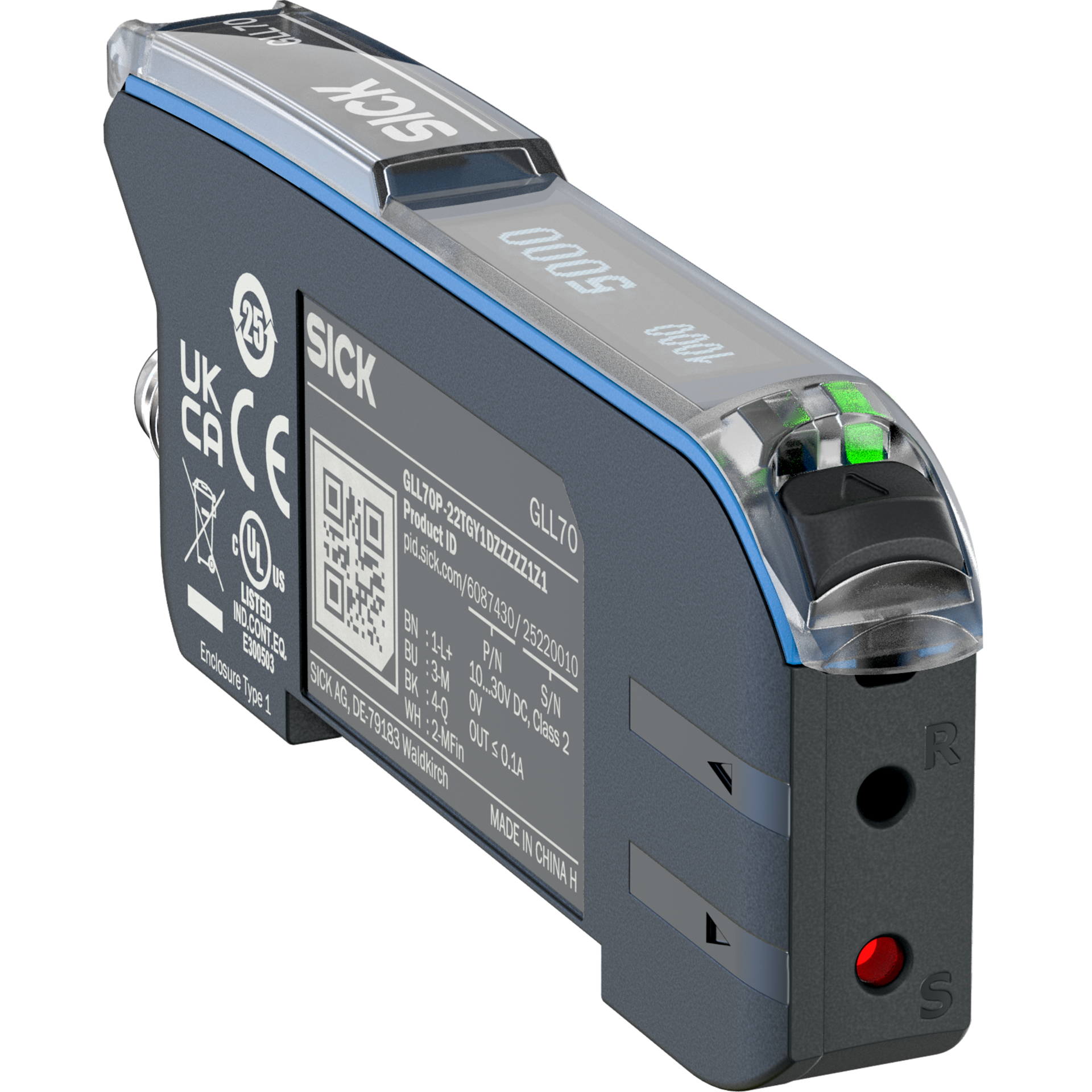

SICK GLL70P-22TGY1DZZZZZ1Z1 (GLL70)
| Adjustment | Teach-in button, cable, Menu-controlled |
|---|---|
| Ambient operation temp. max | 55 °C |
| Ambient operation temp. min | -25 °C |
| Certificate | EU declaration of conformity, UK declaration of conformity, ACMA declaration of conformity, Moroccan declaration of conformity, China RoHS, China Compulsory Product Certification (CCC) exempt, cULus certificate, Photobiological safety (IEC EN 62471) |
| Communication interface | - |
| Connection type | male connector |
| Connection type Detail | male connector M8, 4-pin |
| Device Type | Fiber-optic amplifier |
| Device type detail | Stand-alone |
| Display | OLED display |
| Enclosure rating | IP50 |
| New products | Yes |
| Number of switching outputs | 1 |
| Product | GLL70 |
| Product segment | fiber-optic sensors |
| Switching output | PNP, NPN: open collector |
| Task | Detecting - Standard objects, Detecting - Perforated objects, Detecting - Level |
| Type of fieldbus integration | - |
| Type of light | visible red light |
| Wave length | 660 nm |
| Weight | ca. 28 g |
Frequently Asked Questions
How do I get pricing for GLL70P-22TGY1DZZZZZ1Z1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the GLL70P-22TGY1DZZZZZ1Z1?
GLL70P-22TGY1DZZZZZ1Z1 is a SICK part. KKM Solutions sources SICK components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of GLL70P-22TGY1DZZZZZ1Z1?
Key specifications include Adjustment: Teach-in button, cable, Menu-controlled; Ambient operation temp. max: 55 °C; Ambient operation temp. min: -25 °C; Certificate: EU declaration of conformity, UK declaration of conformity, ACMA declaration of conformity, Moroccan declaration of conformity, China RoHS, China Compulsory Product Certification (CCC) exempt, cULus certificate, Photobiological safety (IEC EN 62471). The full specification table on this page lists every published attribute for this part.
How quickly can GLL70P-22TGY1DZZZZZ1Z1 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
