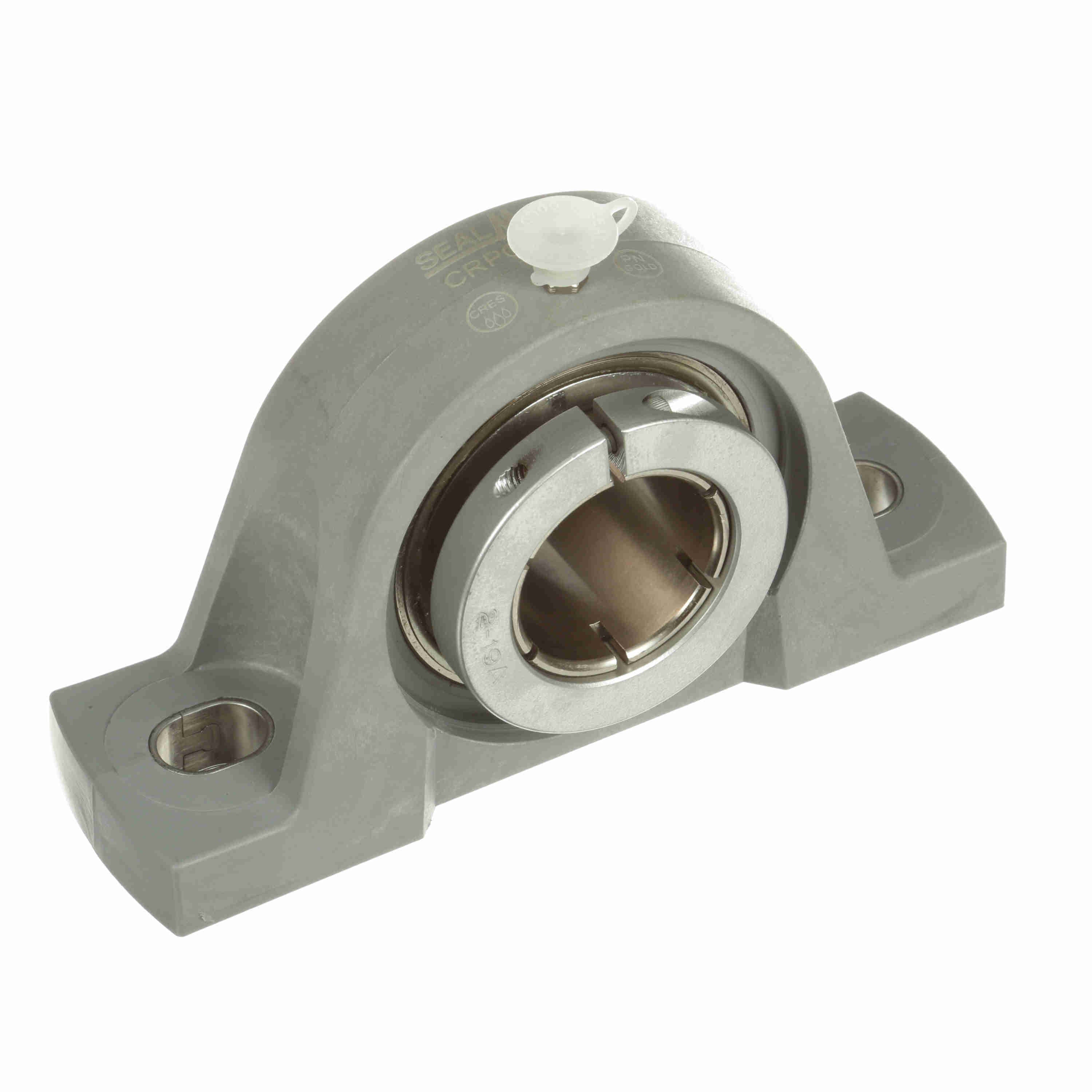

Sealmaster CRPC-PN208T — Mounted Ball Bearings
Sealmaster Mounted Composite Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Phosphorus Nickel Coated - Concentric Lock - Corrosion Resistant - CRPC-PN208T
Sealmaster Mounted Composite Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Phosphorus Nickel Coated - Concentric Lock - Corrosion Resistant
| Ability to Relubricate | Yes |
|---|---|
| Base Length (in) | 7.25 in |
| Base to Center Height (in) | 1.9375 in |
| Base Width (in) | 2.13 in |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | 52100 Bearing Steel |
| Bearing Type | Standard Duty |
| Bolt Size (in) | 1/2 in |
| Bolt Spacing (in) | 5.38 in |
| Bolt Spacing Max (in) | 5.69 in |
| Bolt Spacing Min (in) | 5.06 in |
| Bore Diameter (mm) | 40 mm |
| Bore Shape | Straight |
| Cage Material | PPS - Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline to Outermost Bearing Face (in) | 1.25 in |
| Certifications | IP69K |
| Dynamic Load Rating (lb) | 7,340 lb |
| End Cap Available | Yes |
| Fixed vs. Expansion | Fixed |
| Foot Height (in) | 0.68 in |
| Grease Fitting Thread Size | 1/4-28 |
| Housing Base | Solid |
| Housing Color | Light Gray |
| Housing Construction | One Piece |
| Housing material | Composite |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Inner Race Heat Treat Method | Zone-Hardened |
| Inner Ring Outside Diameter (in) | 2.07 in |
| Insert | PN-20T |
| Length Through Bore (in) | 2 in |
| Locking Collar Outside Diameter (in) | 2.69 in |
| Lubricant | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Max Operating Temperature (F) | 220 °F |
| Maximum Speed (RPM) | 1750 rpm |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height (in) | 4.02 in |
| Overall Length (in) | 7.25 in |
| Overall Width (in) | 2.13 in |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-19 |
| Static Load Rating (lb) | 4,467 lb |
| UPC | 662461383780 |
| Vibration Frequency Fundamental Train | 0.0066 cps |
| Vibration Frequency Inner Ring Defect | 0.0909 cps |
| Vibration Frequency Outer Ring Defect | 0.0591 cps |
| Vibration Frequency Roller Spin | 0.0376 cps |
| Weight | 2.50 |
Frequently Asked Questions
How do I get pricing for CRPC-PN208T?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CRPC-PN208T?
CRPC-PN208T is a Sealmaster part. KKM Solutions sources Sealmaster components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of CRPC-PN208T?
Key specifications include Ability to Relubricate: Yes; Base Length (in): 7.25 in; Base to Center Height (in): 1.9375 in; Base Width (in): 2.13 in. The full specification table on this page lists every published attribute for this part.
How quickly can CRPC-PN208T ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
