Sealmaster CRFBS-PN204 — Mounted Ball Bearings
Sealmaster Mounted Stainless Steel Three Bolt Flange Bracket Ball Bearing - 52100 Bearing Steel, Phosphorus Nickel Coated - Setscrew Lock - Corrosion Resistant - CRFBS-PN204
Sealmaster Mounted Stainless Steel Three Bolt Flange Bracket Ball Bearing - 52100 Bearing Steel, Phosphorus Nickel Coated - Setscrew Lock - Corrosion Resistant
| Ability to Relubricate | Yes |
|---|---|
| Base to Center Height (in) | 3 in |
| Bearing Centerline to Bolt Hole Center (in) | 1.6875 in |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | 52100 Bearing Steel |
| Bearing Type | Standard Duty |
| Bolt Size (in) | 3/8 in |
| Bolt Size (mm) | M10 mm |
| Bolt Spacing (in) | 1.5 in |
| Bolt Spacing Height Direction (in) | 0.875 in |
| Bore Diameter (mm) | 20 mm |
| Bore Shape | Straight |
| Cage Material | PPS - Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Certifications | IP69K |
| Dynamic Load Rating (lb) | 2,611 lb |
| End Cap Available | Yes |
| Fixed vs. Expansion | Fixed |
| Foot Height (in) | 0.31 in |
| Grease Fitting Thread Size | 1/4-28 |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing material | Stainless Steel |
| Housing Style | Flange Block |
| Housing Type | Flange, Bracket, Three Bolt |
| Housing Width (in) | 2.38 in |
| Inner Race Heat Treat Method | Zone-Hardened |
| Inner Ring Outside Diameter (in) | 1.192 in |
| Insert | PN-204 |
| Length Through Bore (in) | 1.219 in |
| Lubricant | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Max Operating Temperature (F) | 220 °F |
| Maximum Speed (RPM) | 3100 rpm |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height (in) | 1.34 in |
| Overall Height to End Cap (in) | 2.25 in |
| Overall Length (in) | 4.25 in |
| Overall Width (in) | 2.69 in |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-012 |
| Static Load Rating (lb) | 1,444 lb |
| UPC | 662461356272 |
| Vibration Frequency Fundamental Train | 0.0066 cps |
| Vibration Frequency Inner Ring Defect | 0.0907 cps |
| Vibration Frequency Outer Ring Defect | 0.0593 cps |
| Vibration Frequency Roller Spin | 0.0381 cps |
| Weight | 1.30 |
Frequently Asked Questions
How do I get pricing for CRFBS-PN204?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CRFBS-PN204?
CRFBS-PN204 is a Sealmaster part. KKM Solutions sources Sealmaster components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of CRFBS-PN204?
Key specifications include Ability to Relubricate: Yes; Base to Center Height (in): 3 in; Bearing Centerline to Bolt Hole Center (in): 1.6875 in; Bearing Insert Finish: Phosphorus Nickel Coated. The full specification table on this page lists every published attribute for this part.
How quickly can CRFBS-PN204 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

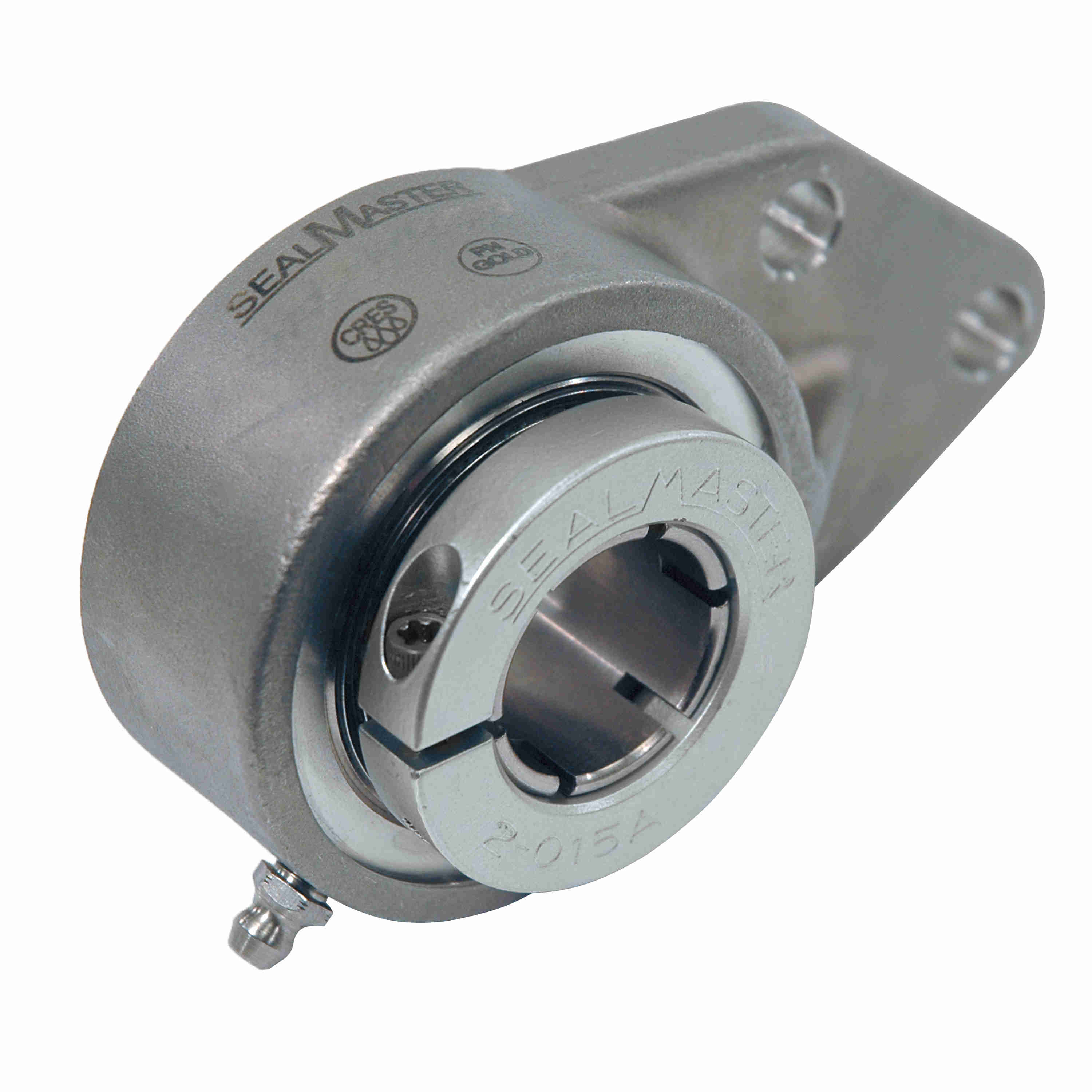

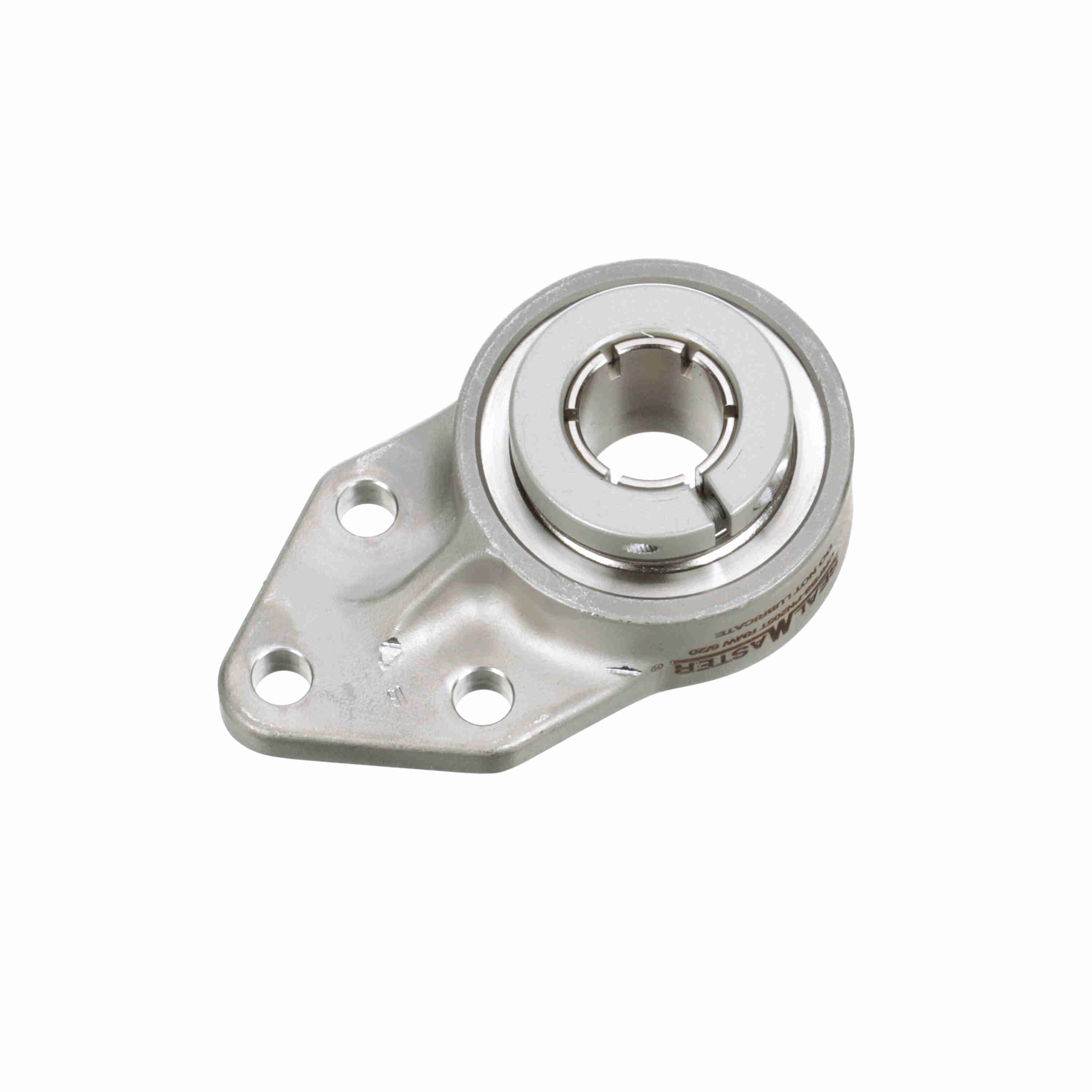

Sealmaster Sealmaster Mounted Stainless Steel Three Bolt Flange Bracket Ball…
