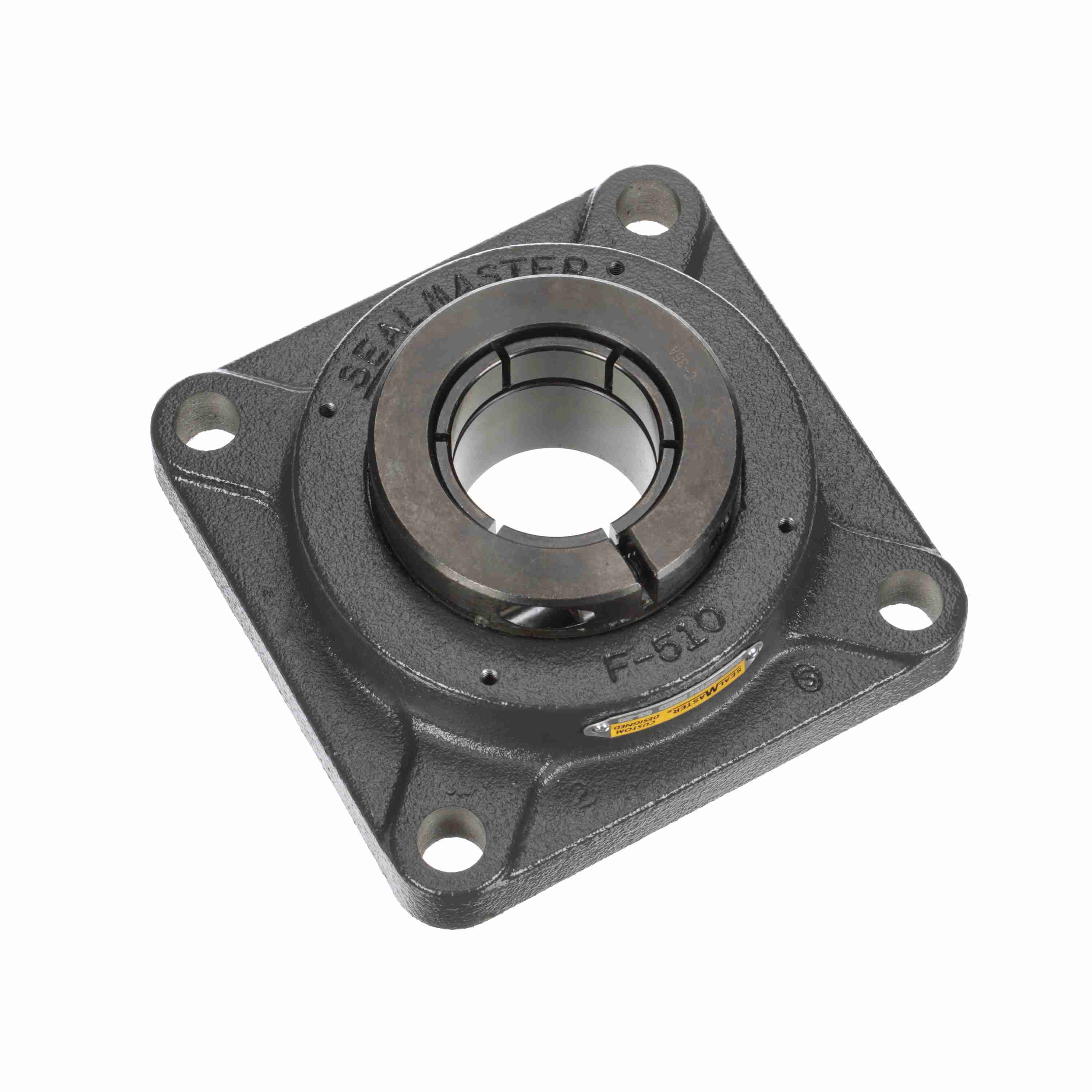

Sealmaster BSF-32H RMD — Ball
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - Reduced Maintenance - Lubed for Life - BSF-32H RMD
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Concentric Lock - Reduced Maintenance - Lubed for Life
| Ability to Relubricate | No |
|---|---|
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | 52100 Bearing Steel |
| Bearing Type | Standard Duty |
| Bolt Size (in) | 5/8 in |
| Bolt Spacing (in) | 5.1250 in |
| Bore Diameter (in) | 2 in |
| Bore Shape | Straight |
| Cage Material | PPS - Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Rating (lb) | 9,752 lb |
| End Cap Available | No |
| Fixed vs. Expansion | Fixed |
| Foot Height (in) | 0.81 in |
| Grease Fitting Thread Size | 1/8 NPT |
| Housing Backside Inner Diameter | 4.25 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Inner Ring Outside Diameter (in) | 2.723 in |
| Insert | 2-2H RM |
| Length Through Bore (in) | 2.184 in |
| Lube Fitting Type | HOUSING PLUGGED |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Max Operating Temperature (F) | 220 °F |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Misalignment Type | Static Only |
| Overall Height (in) | 3.09 in |
| Overall Height to End Cap (in) | 3.09 in |
| Overall Length (in) | 6.38 in |
| Overall Width (in) | 6.38 in |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-23 |
| Static Load Rating (lb) | 6,601 lb |
| UPC | 662461387801 |
| Weight | 11.00 |
Frequently Asked Questions
How do I get pricing for BSF-32H RMD?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BSF-32H RMD?
BSF-32H RMD is a Sealmaster part. KKM Solutions sources Sealmaster components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BSF-32H RMD?
Key specifications include Ability to Relubricate: No; Bearing Insert Finish: Black Oxide; Bearing Insert Material: 52100 Bearing Steel; Bearing Type: Standard Duty. The full specification table on this page lists every published attribute for this part.
How quickly can BSF-32H RMD ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
