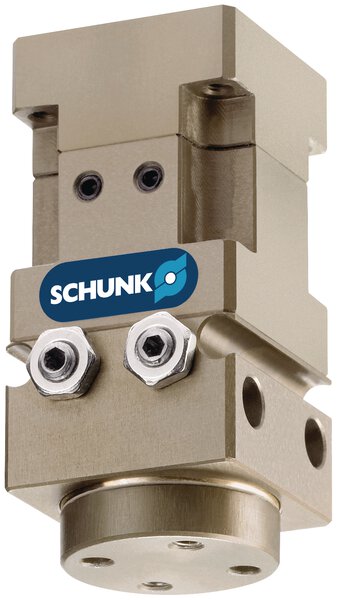

Schunk SFL-25-E-180
Schunk 304060 - Rotary Actuators - Weight (Kg): 0.09; Repeat accuracy: 0.05; Torque [Nm]: 0.1.
In our catalog, the 304060 from Schunk is listed under the Rotary Actuators category. The manufacturer's published data for this part number specifies Weight (Kg): 0.09 and Repeat accuracy: 0.05.
The specification set recorded for this part number covers Torque [Nm]: 0.1; Max Operating Pressure (bar): 6.5; Min. operating pressure [bar]: 4.0; Nominal operating pressure [bar]: 6.0; IP protection class: 52; Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 90.0; Length X [mm]: 25.0; Width Y [mm]: 35.0; Height Z [mm]: 53.5; Moment My max. [Nm]: 0.1; Max. axial force Fz max. [N]: 10.0. The complete technical table is shown in the Specifications tab on this page.
| Angle of rotation [°] | 180 |
|---|---|
| Diameter of connecting hose | 3 x 1.8 x 0.6 |
| End position adjustability [°] | 180 |
| End position damping | Elastomer |
| Fluid consumption (2x nom. angle) [cm³] | 3.0 |
| Height Z [mm] | 53.5 |
| IP protection class | 52 |
| Length X [mm] | 25.0 |
| Max Operating Pressure (bar) | 6.5 |
| Max. ambient temperature [°C] | 90.0 |
| Max. axial force Fz max. [N] | 10.0 |
| Max. permissible inertia of the set-up | 50.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.0 |
| Moment My max. [Nm] | 0.1 |
| Nominal operating pressure [bar] | 6.0 |
| Repeat accuracy | 0.05 |
| Swiveling time (1x nominal rotation angle) without attached load [s] | 0.1 |
| Torque [Nm] | 0.1 |
| Weight (Kg) | 0.09 |
| Width Y [mm] | 35.0 |
Frequently Asked Questions
How do I get pricing for 304060?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 304060?
304060 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 304060?
Key specifications include Angle of rotation [°]: 180; Diameter of connecting hose: 3 x 1.8 x 0.6; End position adjustability [°]: 180; End position damping: Elastomer. The full specification table on this page lists every published attribute for this part.
How quickly can 304060 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk SFL-40-E-180

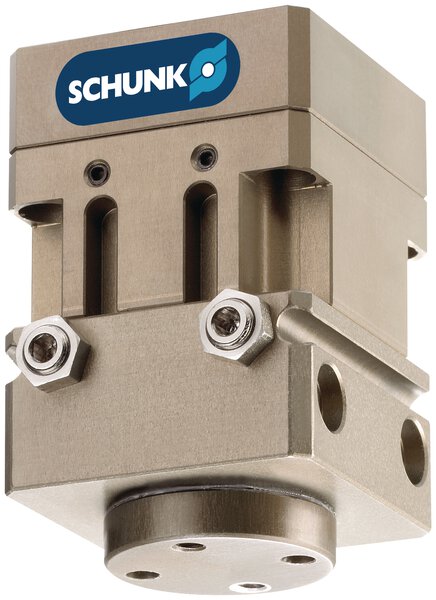

Schunk Schunk SFL-40-S-180
Schunk Schunk SFL-64-E-180

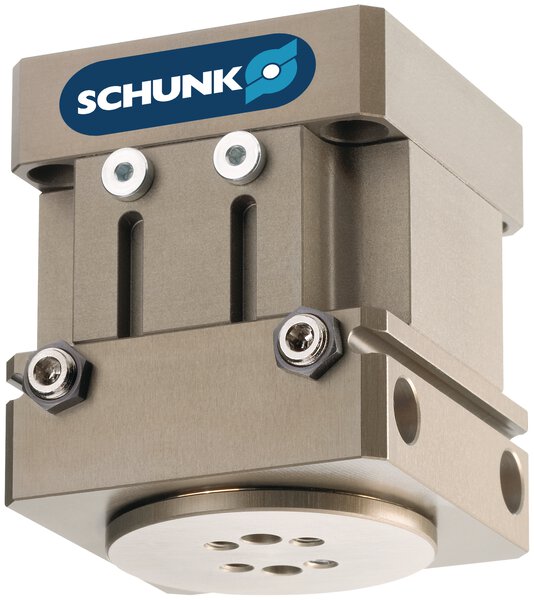

Schunk Schunk SFL-64-S-180
