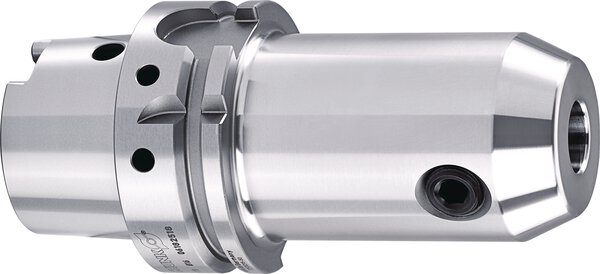

Schunk WHI HSK-A 63 Ø16x100
Schunk 23001978 - Toolholder quickfinder - Series: Whistle Notch mountings; Technology: Whistle Notch mountings; g: M12.
The Schunk 23001978 is part of the Toolholder quickfinder range in our industrial catalog. The manufacturer's published data for this part number specifies Series: Whistle Notch mountings and Technology: Whistle Notch mountings.
The specification set recorded for this part number covers g: M12; Weight (Kg): 1.58; D2 [mm]: 48.0; Toolholder interface: HSK-A 63; Toolholder standard: DIN ISO 12164-1; Clamping diameter D1: 16 mm; D6 [mm]: 35.5; Projecting length L1 [mm]/[inch]: 100 mm / 3.9"; L2 [mm]: 48.5; L3 [mm]: 10.0; L4 [mm]: 74.0; Coolant-proof: yes. The complete technical table is shown in the Specifications tab on this page.
| Clamping diameter D1 | 16 mm |
|---|---|
| Coolant-proof | yes |
| D2 [mm] | 48.0 |
| D6 [mm] | 35.5 |
| g | M12 |
| G1 | M14 |
| L2 [mm] | 48.5 |
| L3 [mm] | 10.0 |
| L4 [mm] | 74.0 |
| Projecting length L1 [mm]/[inch] | 100 mm / 3.9" |
| Series | Whistle Notch mountings |
| Standard length | yes |
| Technology | Whistle Notch mountings |
| Toolholder interface | HSK-A 63 |
| Toolholder standard | DIN ISO 12164-1 |
| Weight (Kg) | 1.58 |
Frequently Asked Questions
How do I get pricing for 23001978?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 23001978?
23001978 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 23001978?
Key specifications include Clamping diameter D1: 16 mm; Coolant-proof: yes; D2 [mm]: 48.0; D6 [mm]: 35.5. The full specification table on this page lists every published attribute for this part.
How quickly can 23001978 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
