Schunk SRM 10-E-180-90-M-2P
| Angle of rotation [°] | 180 |
|---|---|
| Cleanroom class ISO 14644-1 | 2015 |
| Diameter of center bore [mm] | 6.0 |
| Diameter of connecting hose | 3 x 1.8 x 0.6 |
| End position damping | Elastomer |
| Fluid consumption (2x nom. angle) [cm³] | 8.8 |
| IP protection class | 40 |
| Max Operating Pressure (bar) | 6.5 |
| Max. ambient temperature [°C] | 75.0 |
| Max. axial force Fz max. [N] | 215.0 |
| Max. permissible mass moment of inertia [kgm²] | 9.0E-4 |
| Max. pressure fluid feed-through [bar] | 8.0 |
| Max. volumetric flow of feed-through (at 6 bar) [l/min] | 40.0 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.5 |
| Min. pressure in the fluid feed-through [bar] | -0.8 |
| Moment My max. [Nm] | 3.0 |
| No. of fluid feed-throughs | 2.0 |
| Nominal operating pressure [bar] | 6.0 |
| Number of intermediate positions | 1 x M (pneumatic) |
| Repeat accuracy | 0.06 |
| Torque [Nm] | 0.45 |
| Torque center position [Nm] | 0.25 |
| Version with media feed-through | yes |
| Weight (Kg) | 0.36 |
Frequently Asked Questions
How do I get pricing for 1482203?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1482203?
1482203 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1482203?
Key specifications include Angle of rotation [°]: 180; Cleanroom class ISO 14644-1: 2015; Diameter of center bore [mm]: 6.0; Diameter of connecting hose: 3 x 1.8 x 0.6. The full specification table on this page lists every published attribute for this part.
How quickly can 1482203 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk SRM 10-H-180-90-M-2P

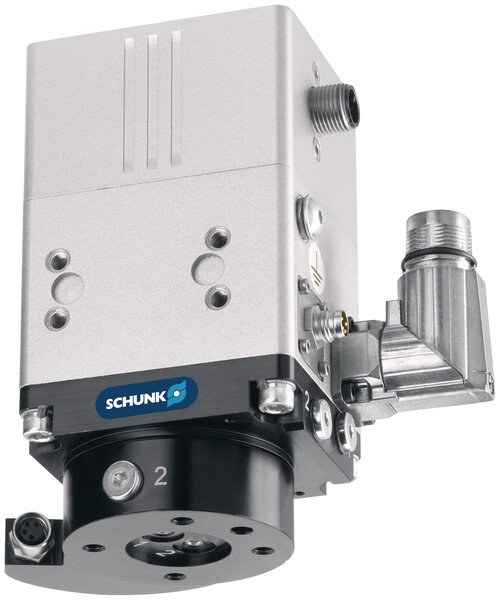

Schunk Schunk ERD 04-40-D-H-2
