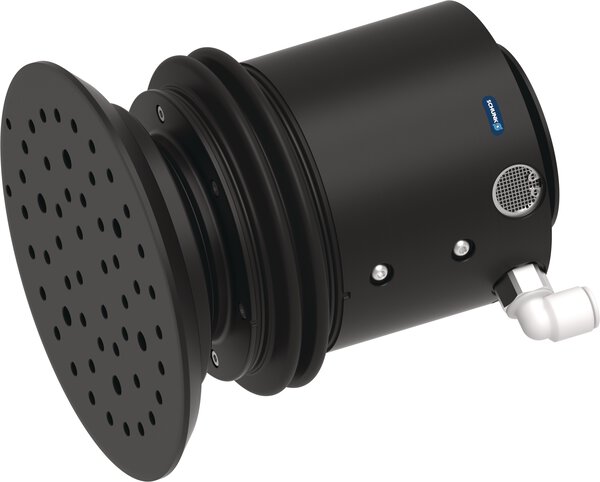

Schunk AOV-10-6
Schunk 1435146 - AOV - Weight (Kg): 2.68; Diameter D [mm]: 150.0; Min. ambient temperature [°C]: 5.0.
Schunk 1435146 is a AOV catalog item from Schunk. The manufacturer's published data for this part number specifies Weight (Kg): 2.68 and Diameter D [mm]: 150.0.
Published specifications for this part include Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 35.0; Height Z [mm]: 148.0; Noise emission [dB(A)]: < 85; Force Fz max. [N]: 66.7; Compensation Z [mm]: 12.7; Min. compensating pressure [bar]: 1.0; Max. compensation pressure [bar]: 4.1; Idle speed [1/min]: 10000.0; Recommended compensation path [mm]: ± 5; Operating pressure [bar]: 6.2; maximum air consumption [l/s]: 9.5. The complete technical table is shown in the Specifications tab on this page.
| Air connection motor | 10 mm |
|---|---|
| Compensation air connection | 4 mm |
| Compensation Z [mm] | 12.7 |
| Diameter D [mm] | 150.0 |
| Force Fz max. [N] | 66.7 |
| Grinding disk size | 150 mm (6'') |
| Grinding stroke [mm] | 5.0 |
| Height Z [mm] | 148.0 |
| Idle speed [1/min] | 10000.0 |
| Max. ambient temperature [°C] | 35.0 |
| Max. compensation pressure [bar] | 4.1 |
| Max. extension compensation force [N] | 66.7 |
| Max. retraction compensation force [N] | 33.3 |
| maximum air consumption [l/s] | 9.5 |
| Min. ambient temperature [°C] | 5.0 |
| Min. compensating pressure [bar] | 1.0 |
| Min. extension compensation force [N] | 13.3 |
| Min. retraction compensation force [N] | 6.7 |
| Noise emission [dB(A)] | < 85 |
| Operating pressure [bar] | 6.2 |
| Recommended compensation path [mm] | ± 5 |
| Weight (Kg) | 2.68 |
