Schunk EOA-DRM-SHA-050-E08-000
Schunk 1399581 - Tool changer - Electrical connection: M8 connector, 8-pin; Weight (Kg): 0.14; Diameter D [mm]: 63.0.
This listing covers the Schunk 1399581, a part number in the Tool changer category. The manufacturer's published data for this part number specifies Electrical connection: M8 connector, 8-pin and Weight (Kg): 0.14.
The specification set recorded for this part number covers Diameter D [mm]: 63.0; Electrical connection outlet: tangential (left); Min. ambient temperature [°C]: 5.0; Max. ambient temperature [°C]: 60.0; Repeat accuracy [mm]: 0.02; Height Z [mm]: 16.0; Moment Mx max. [Nm]: 75.0; Moment My max. [Nm]: 75.0; Moment Mz max. [Nm]: 135.0; Nominal current [A]: 1.5; Screw connection diagram: S5/S7 über Adapterplatte; Transmission type: Signal. The complete technical table is shown in the Specifications tab on this page.
| Connection flange according to | ISO 9409-1-50-4-M6 |
|---|---|
| Diameter D [mm] | 63.0 |
| Direct current [V DC] | 30.0 |
| Electrical connection | M8 connector, 8-pin |
| Electrical connection outlet | tangential (left) |
| Feed-throughs for radial use | 6.0 |
| Height Z [mm] | 16.0 |
| Max. ambient temperature [°C] | 60.0 |
| Max. distance when locking [mm] | 1.0 |
| Max. dynamic moment Mx/My [Nm] | 35.0 |
| Max. dynamic moment Mz [Nm] | 27.0 |
| max. static tensile force Fz [N] | 900.0 |
| Min. ambient temperature [°C] | 5.0 |
| Moment Mx max. [Nm] | 75.0 |
| Moment My max. [Nm] | 75.0 |
| Moment Mz max. [Nm] | 135.0 |
| Nominal current [A] | 1.5 |
| Number of pin contacts | 8.0 |
| Number of pneumatic feed-throughs | 6.0 |
| Pitch circle diameter [mm] | 50.0 |
| Recommended handling weight [kg] | 11.0 |
| Repeat accuracy [mm] | 0.02 |
| Screw connection diagram | S5/S7 über Adapterplatte |
| Transmission type | Signal |
| Weight (Kg) | 0.14 |
Frequently Asked Questions
How do I get pricing for 1399581?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1399581?
1399581 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1399581?
Key specifications include Connection flange according to: ISO 9409-1-50-4-M6; Diameter D [mm]: 63.0; Direct current [V DC]: 30.0; Electrical connection: M8 connector, 8-pin. The full specification table on this page lists every published attribute for this part.
How quickly can 1399581 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk EOA-DRM-SHK-050-E08-000

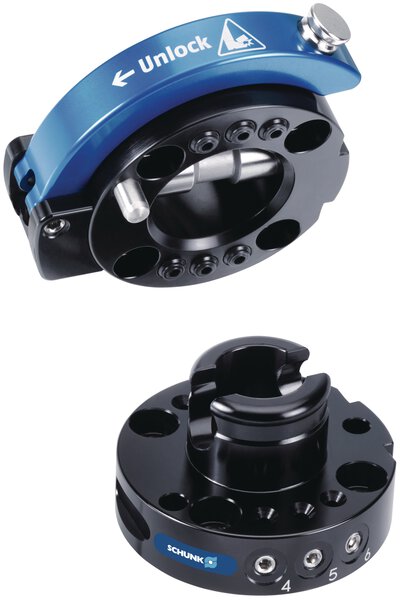

Schunk Schunk EOA-TM51214-SHK-050-E08-000
Schunk Schunk EOA-TM51214-SHA-050-E08-000

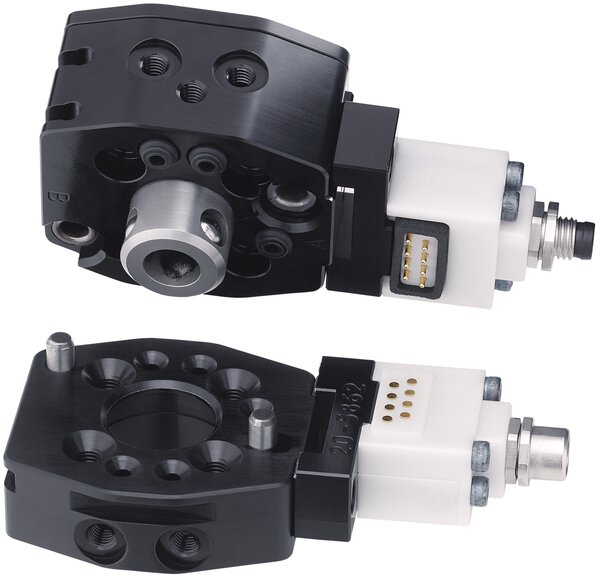

Schunk Schunk SWK-007-000-000-IN03
