Schunk DPG-plus 40-IS-V
Schunk 1321188 - Parallel gripper - Weight (Kg): 0.14; Max Operating Pressure (bar): 6.5; Stroke per jaw [mm]: 2.5.
The Schunk 1321188 is part of the Parallel gripper range in our industrial catalog. The manufacturer's published data for this part number specifies Weight (Kg): 0.14 and Max Operating Pressure (bar): 6.5.
The specification set recorded for this part number covers Stroke per jaw [mm]: 2.5; Min. spring force [N]: 45.0; Recommended workpiece weight [kg]: 0.55; Min. operating pressure [bar]: 4.0; Nominal operating pressure [bar]: 6.0; Min. air purge pressure [bar]: 0.2; Max. air purge pressure [bar]: 0.5; Closing time [s]: 0.03; Opening time [s]: 0.05; Max. permissible finger length [mm]: 40.0; Max. permissible weight per finger [kg]: 0.1; IP protection class: 67. The complete technical table is shown in the Specifications tab on this page.
| Cleanroom class ISO 14644-1 | 1999 |
|---|---|
| Closing time [s] | 0.03 |
| Height Z [mm] | 40.5 |
| High-temperature version | yes |
| IP protection class | 67 |
| Length X [mm] | 56.0 |
| Max Operating Pressure (bar) | 6.5 |
| Max. air purge pressure [bar] | 0.5 |
| Max. ambient temperature [°C] | 130.0 |
| Max. axial force Fz max. [N] | 190.0 |
| Max. permissible finger length [mm] | 40.0 |
| Max. permissible weight per finger [kg] | 0.1 |
| Min. air purge pressure [bar] | 0.2 |
| Min. ambient temperature [°C] | 5.0 |
| Min. operating pressure [bar] | 4.0 |
| Min. spring force [N] | 45.0 |
| Moment Mx max. [Nm] | 8.0 |
| Moment My max. [Nm] | 9.0 |
| Moment Mz max. [Nm] | 4.0 |
| Nominal operating pressure [bar] | 6.0 |
| Opening force (with finger lengths of 0 mm) [N] | 194.0 |
| Opening force [N] | 165.0 |
| Opening time [s] | 0.05 |
| Recommended workpiece weight [kg] | 0.55 |
| Repeat accuracy [mm] | 0.01 |
| Stroke per jaw [mm] | 2.5 |
| Weight (Kg) | 0.14 |
| Width Y [mm] | 24.0 |
Frequently Asked Questions
How do I get pricing for 1321188?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1321188?
1321188 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1321188?
Key specifications include Cleanroom class ISO 14644-1: 1999; Closing time [s]: 0.03; Height Z [mm]: 40.5; High-temperature version: yes. The full specification table on this page lists every published attribute for this part.
How quickly can 1321188 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

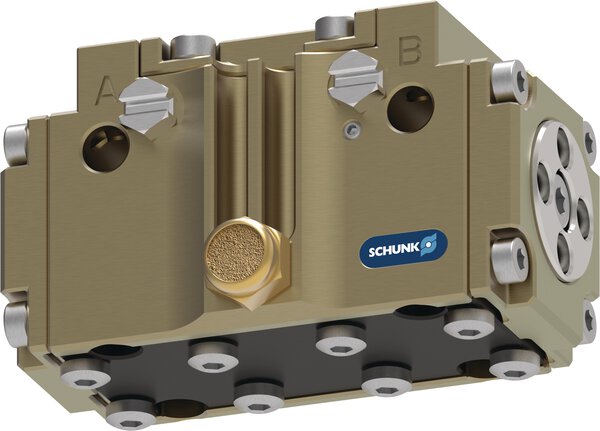

Schunk Schunk DPG-plus 40-AS-V
Schunk Schunk DPG-plus 40-V
Schunk Schunk EGL 90-PB

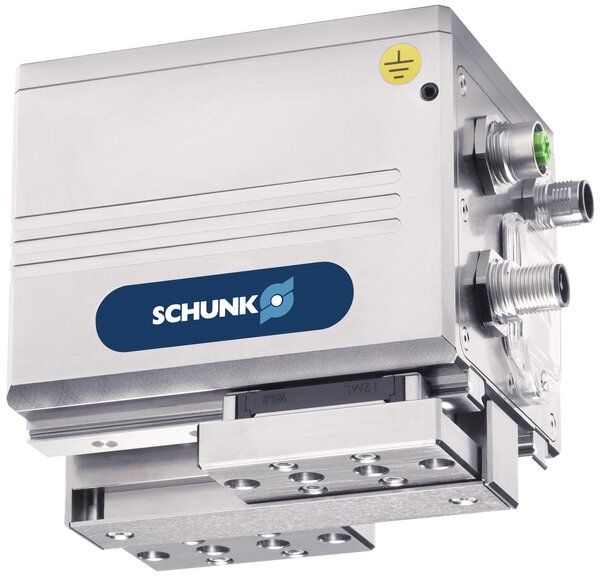

Schunk Schunk EGL 90-CN

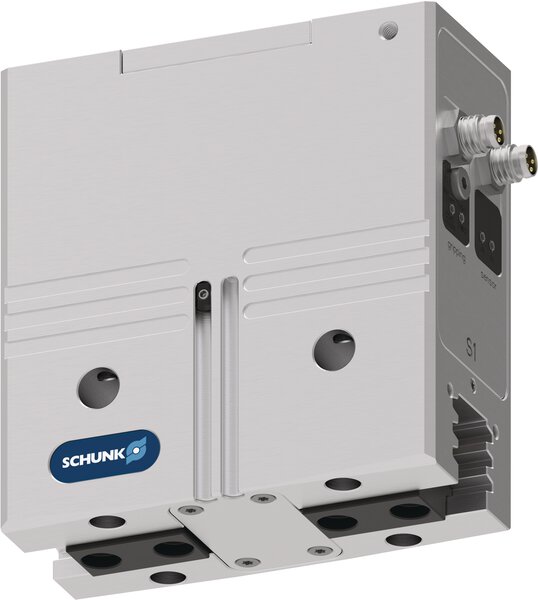

Schunk Schunk PGN-plus-E 80-1-IOL
