Schunk IN 30K-S-M8-PNP
| Cable connector/cable end | M8 connector, 3-pin |
|---|---|
| Cable design (wire cross section/number of wires) | 3 x 0,055mm2 |
| Cable diameter D [mm] | 2.6 |
| Cable length L [cm] | 20.0 |
| Cable sheath material | PUR |
| Housing material | stainless steel |
| LED display in sensor | yes |
| Max. ambient temperature [°C] | 70.0 |
| Max. operating voltage | 30.0 |
| Max. switching current | 0.1 |
| Max. switching frequency [Hz] | 8000.0 |
| Measuring principle | inductive |
| Min. ambient temperature [°C] | -25.0 |
| Min. bending radius (dynamic) [mm] | 26.0 |
| Min. bending radius (static) [mm] | 26.0 |
| Min. operating voltage | 10.0 |
| Nominal Voltage | 24.0 |
| Number of switching points | 1 |
| Protected against polarity reversal | yes |
| Protection class | III |
| Protection class IP (sensor, plugged) | 67 |
| Short circuit protection | yes |
| Switching distance [mm] | 0.9 |
| Switching function | Closer |
| Type of switching | PNP |
| Type of voltage | DC |
| Voltage drop [V] | 2.0 |
| Weight (Kg) | 0.08 |
Frequently Asked Questions
How do I get pricing for 1001272?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1001272?
1001272 is a Schunk part. KKM Solutions sources Schunk components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1001272?
Key specifications include Cable connector/cable end: M8 connector, 3-pin; Cable design (wire cross section/number of wires): 3 x 0,055mm2; Cable diameter D [mm]: 2.6; Cable length L [cm]: 20.0. The full specification table on this page lists every published attribute for this part.
How quickly can 1001272 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Schunk Schunk IN 30L-S-M8-PNP

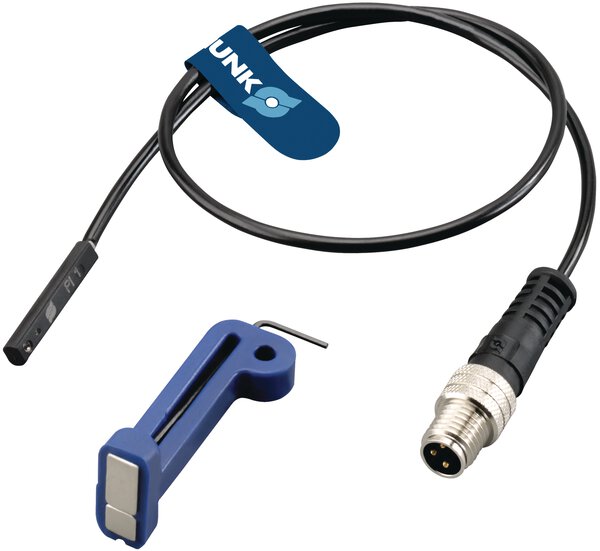

Schunk Schunk MMS 22-PI1-S-M8-PNP-EX
Schunk Schunk MMSK 22-PI1-S-PNP-EX

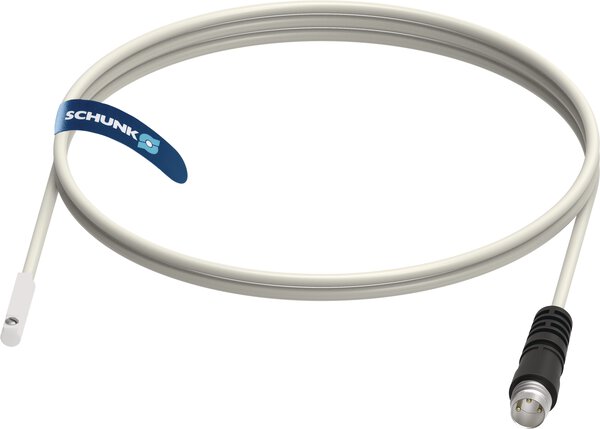

Schunk Schunk J02P-2M
