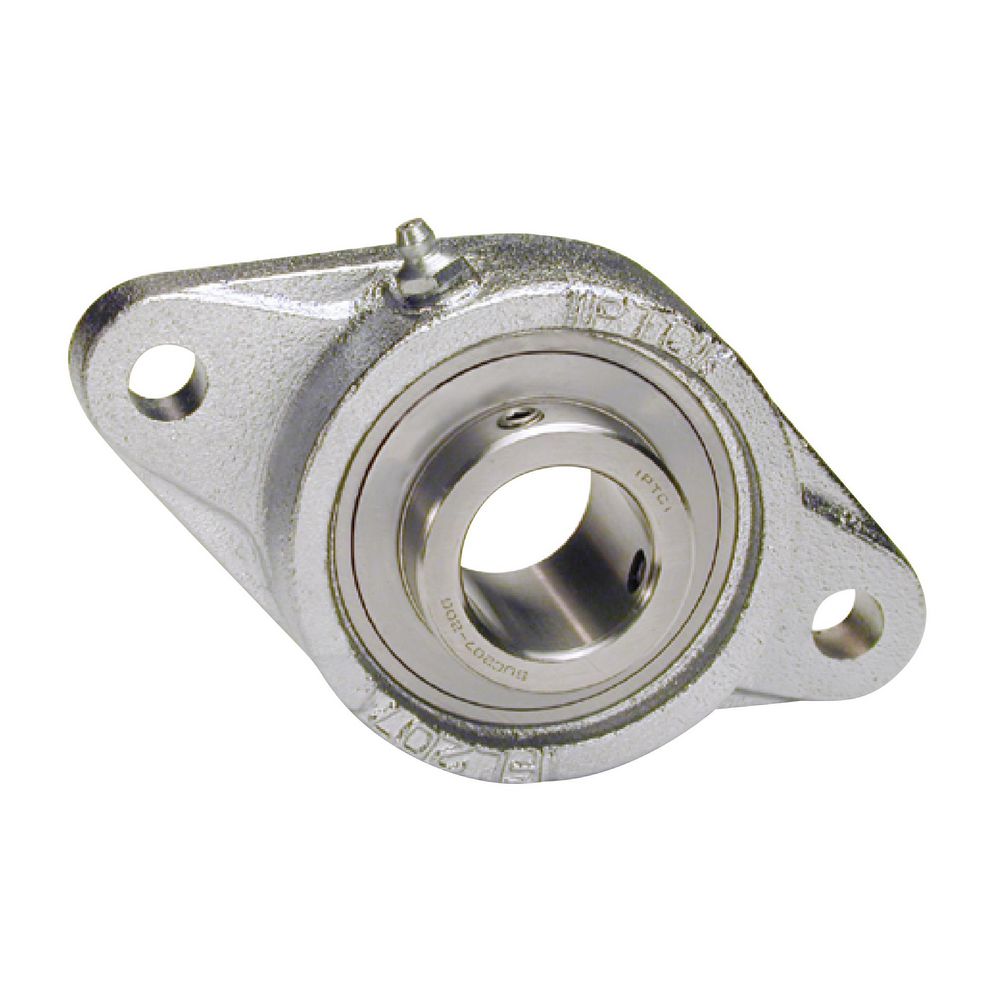

IPTCI NALF205-16G H4 — Flange Bearing Units
IPTCI NALF205-16G H4 - Flange Bearing Units - Series: NALF Light Duty Eccentric Locking 2-Bolt Flange; Housing material: Ductile Iron; Overall Width: 59 mm.
This listing covers the IPTCI NALF205-16G H4, a part number in the Flange Bearing Units category. The manufacturer's published data for this part number specifies Series: NALF Light Duty Eccentric Locking 2-Bolt Flange and Housing material: Ductile Iron.
Published specifications for this part include Overall Width: 59 mm; Dynamic Load Rating: 3010; Static Load Rating: 1750; Operating temperature - max: 248 °; Bore Diameter: 1.00 in; Industry Standard: AFBMA; Bearing Material: AISI 52100; Closure Type: Dual Seals (B-Type); Grease Type: NLGI Grade 2 Lithium Based Bearing Grease; Mounting Type: Two (2) Bolt, Two (2) Bolt Flange; Locking Type: Eccentric Collar; Length Through Bore: 1.7441 in. The complete technical table is shown in the Specifications tab on this page.
| Bearing Material | AISI 52100 |
|---|---|
| Bore Diameter | 1.00 in |
| Closure Type | Dual Seals (B-Type) |
| Duty Type | Standard |
| Dynamic Load Rating | 3010 |
| Grease Type | NLGI Grade 2 Lithium Based Bearing Grease |
| Housing material | Ductile Iron |
| Industry Standard | AFBMA |
| Length Through Bore | 1.7441 in |
| Locking Type | Eccentric Collar |
| Mounting Type | Two (2) Bolt, Two (2) Bolt Flange |
| Operating temperature - max | 248 ° |
| Overall Width | 59 mm |
| Relubricatable | Relubricatable |
| Series | NALF Light Duty Eccentric Locking 2-Bolt Flange |
| Static Load Rating | 1750 |
Frequently Asked Questions
How do I get pricing for NALF205-16G H4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the NALF205-16G H4?
NALF205-16G H4 is a IPTCI part. KKM Solutions sources IPTCI components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of NALF205-16G H4?
Key specifications include Bearing Material: AISI 52100; Bore Diameter: 1.00 in; Closure Type: Dual Seals (B-Type); Duty Type: Standard. The full specification table on this page lists every published attribute for this part.
How quickly can NALF205-16G H4 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
