igus MAT90489371

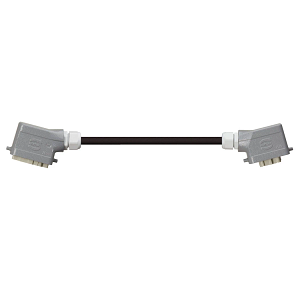

Han 6B connector housing (pin) on Han 6B connector housing (socket), single locking lever, angled at both ends, iguPUR
| Connector A | Socket M25 insert 6+PE lateral Cable entry |
|---|---|
| Connector B | Connector M25 insert 6+PE lateral Cable entry |
| Number of cores and conductor nominal cross section | 7 x 16 AWG (1.5) |
| Outer diameter (d) max. | 10 MMT |
| Outer jacket | Low-adhesion iguPUR mixture, adapted to suit the requirements in e-chains®. |
| USP | Requirements: For flexing applications, Download Data Sheet, Outer jacket: iguPUR, Flame retardant, Silicone-free, UV-resistant, Oil resistance: Oil-resistant according to DIN EN 50363-10-2, chainflex® class: 3.1.3.1 |
Frequently Asked Questions
How do I get pricing for MAT90489371?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the MAT90489371?
MAT90489371 is a igus part. KKM Solutions sources igus components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of MAT90489371?
Key specifications include Connector A: Socket M25 insert 6+PE lateral Cable entry; Connector B: Connector M25 insert 6+PE lateral Cable entry; Number of cores and conductor nominal cross section: 7 x 16 AWG (1.5); Outer diameter (d) max.: 10 MMT. The full specification table on this page lists every published attribute for this part.
How quickly can MAT90489371 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
