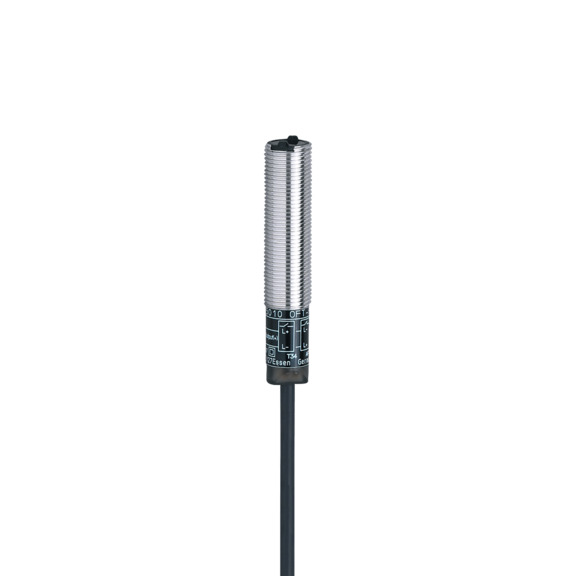

Diffuse reflection sensor - OF5048
IFM OF5048 - Diffuse reflection sensor - Material: housing: brass nickel-plated; Weight: 73.1; Ambient temperature: -25...60.
IFM OF5048 is a Diffuse reflection sensor catalog item from IFM. The manufacturer's published data for this part number specifies Material: housing: brass nickel-plated and Weight: 73.1.
Compact housing for use where space is restricted; Robust metal housing for use in harsh industrial environments; Programmable light-on/dark-on mode; LED display to check operation, switching status and function
Key manufacturer data on file for this item includes Ambient temperature: -25...60; Protection class: II; Dimensions: M12 x 1 / L = 60; Application: Industrial applications; Product type: Diffuse reflection sensor; Cable: 2 m, PUR; 3 x 0.34 mm²; Operating voltage: 10...36 DC; Current consumption: < 30; Reverse polarity protection: yes; Range: 1...200; (white paper 200 x 200 mm); Overload protection: yes; Output function: light-on/dark-on mode; (programmable). See the Specifications tab on this page for the full technical table.
| Ambient temperature | -25...60 |
|---|---|
| Application | Industrial applications |
| Cable | 2 m, PUR; 3 x 0.34 mm² |
| Current consumption | < 30 |
| Dimensions | M12 x 1 / L = 60 |
| Electrical design | NPN |
| Function principle | Diffuse reflection sensor |
| Housing | Threaded type |
| Key Features | Compact housing for use where space is restricted; Robust metal housing for use in harsh industrial environments; Programmable light-on/dark-on mode; LED display to check operation, switching status and function |
| Light spot dimensions refer to | at maximum range |
| Material | housing: brass nickel-plated |
| Max. light spot diameter | 92 |
| Max. voltage drop switching output DC | 2.5 |
| MTTF | 903 |
| Operating voltage | 10...36 DC |
| Output function | light-on/dark-on mode; (programmable) |
| Overload protection | yes |
| Pack quantity | 1 pcs. |
| Permanent current rating of switching output DC | 200 |
| Product type | Diffuse reflection sensor |
| Protection | IP 67 |
| Protection class | II |
| Range | 1...200; (white paper 200 x 200 mm) |
| Range adjustable | no |
| Reverse polarity protection | yes |
| Short circuit protection | yes |
| Specification Summary | Diffuse reflection sensor; Infrared light; light-on/dark-on mode; (programmable); NPN; 200 mm; IP 67; 2 m PUR-Cable |
| Switching frequency DC | 320 |
| Thread designation | M12 x 1 |
| Type of light | Infrared light |
| Type of short-circuit protection | yes (non-latching) |
| Wave length | 880 |
| Weight | 73.1 |
Frequently Asked Questions
How do I get pricing for OF5048?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the OF5048?
OF5048 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of OF5048?
Key specifications include Ambient temperature: -25...60; Application: Industrial applications; Cable: 2 m, PUR; 3 x 0.34 mm²; Current consumption: < 30. The full specification table on this page lists every published attribute for this part.
How quickly can OF5048 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
