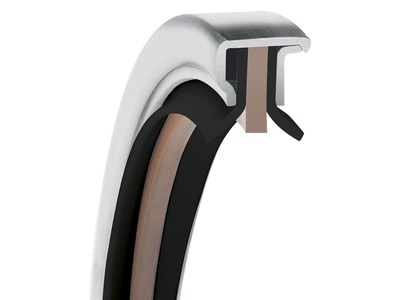

Garlock PS-SEAL® PTFE Shaft Seal
PS-SEAL® Rotary Shaft Seal, Single Lip, GYLON® Black Lip Material, 1.4571/316Ti Case Material, FKM Static Seal Material, 10.00 mm Shaft Size X 22.00 mm Bore Size X 6.00 mm Width, 3.00 mm Preload, 10 bar Max Pressure
| Bore Size (inch) | 0.866 |
|---|---|
| Bore Size (mm) | 22.00 |
| Brand | PS-SEAL® |
| Case Material | 1.4571/316Ti |
| Configuration Type (Seals) | Single Lip |
| Dry Running | No |
| Dust Lip | No |
| Dust Lip Material | None |
| For Use With | Oil |
| Lip Material | GYLON® Black |
| Lip Material (Single) | GYLON® Black |
| Lip Material Composition | PTFE with Graphite |
| Max Shaft Surface Speed (feet/min) | Application dependent but usually 147 ft/s is okay. |
| Max Shaft Surface Speed (meter/sec) | Application dependent but usually 45 m/s is okay. |
| Max Temperature (C) | 204 |
| Max Temperature (F) | 399 |
| Min Temperature (C) | -30 |
| Min Temperature (F) | -22 |
| Misalignment Tolerance (inch) | +/- 0.006 inch at 2000 ft/min |
| Misalignment Tolerance (mm) | +/- 0.15mm at 10.2 m/s |
| Preload (inch) | 0.197 |
| Preload (mm) | 3.00 |
| Pressure Max (bar) | 10 |
| Pressure Max (psi) | 145 |
| Primary Dimensional Unit of Measure | Metric |
| Shaft Size (inch) | 0.394 |
| Shaft Size (mm) | 10.00 |
| Shipping Weight | 0.26 lbs |
| Sort Priority | 600 |
| Static Seal Material | FKM |
| Style/Model | PS-SEAL |
| Temperature Range (C) | -30°C - 204°C |
| Temperature Range (F) | -22°F - 399°F |
| Vacuum | Yes |
| Width (inch) | 0.236 |
| Width (mm) | 6.00 |
Frequently Asked Questions
How do I get pricing for MEC03-10048?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the MEC03-10048?
MEC03-10048 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of MEC03-10048?
Key specifications include Bore Size (inch): 0.866; Bore Size (mm): 22.00; Brand: PS-SEAL®; Case Material: 1.4571/316Ti. The full specification table on this page lists every published attribute for this part.
How quickly can MEC03-10048 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
