Garlock EDGE® Spiral Wound Metal Gaskets

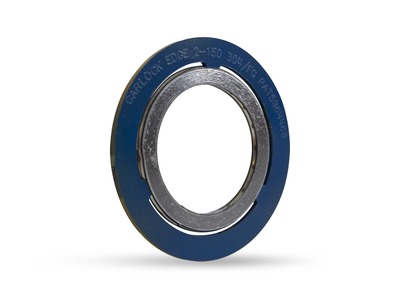

EDGE® Spiral Wound Gasket for 4 Inch ASME B16.5 Class 2500 Flange, 316L Stainless Steel Winding, Flexible Graphite Filler, Carbon Steel Outer Ring, Domestic USA Manufactured
| Brand | EDGE® |
|---|---|
| Compliances | Domestic USA Manufactured, Fire Safe |
| Compliances/Standards | Domestic USA Manufactured, Fire Safe |
| Filler Material | Flexible Graphite |
| Filler Material Abbreviation | FG |
| Flange Standards/Pressure Class | ASME B16.5 Class 2500 |
| Gasket Standard | ASME B16.20 |
| Inner Ring Included | No |
| Inside Diameter (Inch) | 4.630 |
| Inside Diameter (mm) | 117.35 |
| Inside Diameter Seal (inch) | 4.630 |
| Inside Diameter Seal (mm) | 117.35 |
| Max Temperature (C) | 454 |
| Max Temperature (F) | 850 |
| Min Temperature (C) | -22 |
| Nominal Pipe Size (inch) | 4.000 |
| Nominal Pipe Size DN (mm) | 100.0 |
| Nominal Pipe Size Fraction (Inch) | 4 |
| Outer Diameter Outer Ring (inch) | 9.250 |
| Outer Diameter Outer Ring (mm) | 234.95 |
| Outer Diameter Seal (inch) | 5.880 |
| Outer Diameter Seal (mm) | 139.57 |
| Outer Ring Material | Carbon Steel |
| Outer Ring Material Abbreviation | CS |
| Pipe Standard and Class | ASME B16.5 Class 2500 |
| Pressure Class | 2500 |
| Primary Dimensional Unit of Measure | Imperial |
| Style/Model | EDGE® |
| Thickness Compressed (inch) | 0.125 |
| Thickness Compressed (mm) | 3.18 |
| Thickness Uncompressed (inch) | 0.175 |
| Thickness Uncompressed (mm) | 4.45 |
| Winding Material | 316L Stainless Steel |
| Winding Material Abbreviation | 316L SS |
Frequently Asked Questions
How do I get pricing for E03051004025?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the E03051004025?
E03051004025 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of E03051004025?
Key specifications include Brand: EDGE®; Compliances: Domestic USA Manufactured, Fire Safe; Compliances/Standards: Domestic USA Manufactured, Fire Safe; Filler Material: Flexible Graphite. The full specification table on this page lists every published attribute for this part.
How quickly can E03051004025 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Garlock Garlock EDGE® Spiral Wound Metal Gaskets

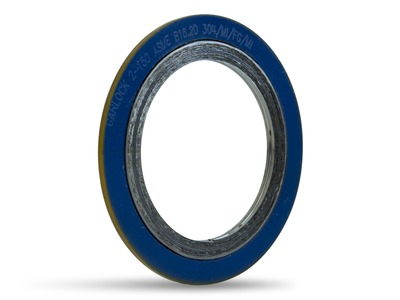

Garlock Garlock HEAT SHIELD™ Spiral Wound Metal Gaskets
