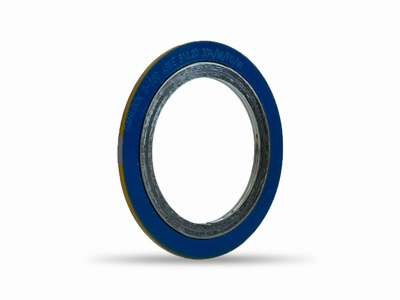

Garlock FLEXSEAL® RWI Spiral Wound Metal Gaskets
FLEXSEAL® RWI Spiral Wound Gasket for 3 1/2 Inch ASME B16.5 Class 300 Flange, 316L Stainless Steel Winding, Flexible Graphite Filler, 316L Stainless Steel Outer Ring, 316L Stainless Steel Inner Ring Domestic USA Manufactured
| Brand | FLEXSEAL® |
|---|---|
| Color Coding | Green with Gray stripe |
| Compliances | REACH Compliant, RoHS Compliant, Domestic USA Manufactured, Fire Safe |
| Compliances/Standards | Domestic USA Manufactured, Fire Safe, REACH Compliant, RoHS Compliant |
| Filler Material | Flexible Graphite |
| Filler Material Abbreviation | FG |
| Flange Standards/Pressure Class | ASME B16.5 Class 300 |
| Gasket Standard | ASME B16.20 |
| Inner Ring Included | Yes |
| Inner Ring Material | 316L Stainless Steel |
| Inner Ring Material Abbreviation | 316L SS |
| Inside Diameter (Inch) | 3.98 |
| Inside Diameter (mm) | 101.09 |
| Inside Diameter Inner Ring (inch) | 3.980 |
| Inside Diameter Inner Ring (mm) | 101.09 |
| Inside Diameter Seal (inch) | 4.500 |
| Inside Diameter Seal (mm) | 114.30 |
| Max Temperature (C) | 454 |
| Max Temperature (F) | 850 |
| Min Temperature (C) | -100 |
| Min Temperature (F) | -150 |
| Nominal Pipe Size (inch) | 3.500 |
| Nominal Pipe Size DN (mm) | 90.0 |
| Nominal Pipe Size Fraction (Inch) | 3 1/2 |
| Outer Diameter Outer Ring (inch) | 6.500 |
| Outer Diameter Outer Ring (mm) | 165.10 |
| Outer Diameter Seal (inch) | 5.250 |
| Outer Diameter Seal (mm) | 133.35 |
| Outer Ring Material | 316L Stainless Steel |
| Outer Ring Material Abbreviation | 316L SS |
| Outside Diameter (inch) | 6.500 |
| Outside Diameter (mm) | 165.10 |
| Pipe Standard and Class | ASME B16.5 Class 300 |
| Pressure Class | 300 |
| Primary Dimensional Unit of Measure | Imperial |
| Shipping Weight | 0 lbs |
| Style/Model | RWI |
| Thickness Compressed (inch) | 0.125 |
| Thickness Compressed (mm) | 3.18 |
| Thickness Uncompressed (inch) | 0.175 |
| Thickness Uncompressed (mm) | 4.45 |
| UPC Code | 191074942331 |
| Winding Material | 316L Stainless Steel |
| Winding Material Abbreviation | 316L SS |
Frequently Asked Questions
How do I get pricing for DOM0303050303503?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the DOM0303050303503?
DOM0303050303503 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of DOM0303050303503?
Key specifications include Brand: FLEXSEAL®; Color Coding: Green with Gray stripe; Compliances: REACH Compliant, RoHS Compliant, Domestic USA Manufactured, Fire Safe; Compliances/Standards: Domestic USA Manufactured, Fire Safe, REACH Compliant, RoHS Compliant. The full specification table on this page lists every published attribute for this part.
How quickly can DOM0303050303503 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
