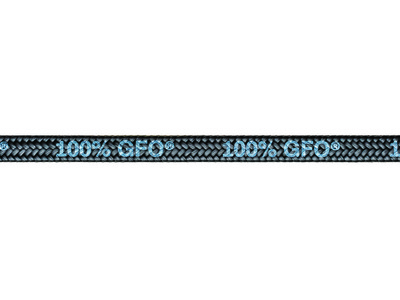

Garlock Style 5100 Compression Packing Seal
Style 5100 Compression Packing, GFO® Fiber, Silicone, 0.250 Inch Square Cross-Section, 10 lb per Spool (22.09 Ft/Lb)
| Application/Equipment | Mixers-Agitators, Other rotational equipment, Pumps |
|---|---|
| Compliances | REACH Compliant, RoHS Compliant |
| Compliances/Standards | REACH Compliant, RoHS Compliant |
| Construction | LATTICE BRAID® |
| Continuous Length | No |
| Cross Section Height (mm) | 6.35 |
| Cross Section Height Decimal (Inch) | 0.250 |
| Cross Section Height Fraction (Inch) | 1 1/8 |
| Cross Section Shape | Square |
| Cross Section Width (mm) | 6.35 |
| Cross Section Width Decimal (Inch) | 0.250 |
| Cross Section Width Fraction (Inch) | 1/4 |
| Fixed package Quantity | Yes |
| Lubricant | Silicone |
| Material | GFO® Fiber |
| Max Shaft Surface Speed (feet/min) | 4000 |
| Max Shaft Surface Speed (meter/sec) | 15 |
| Max Temperature (C) | 288 |
| Max Temperature (F) | 550 |
| Max Temperature Atm (C) | 288 |
| Max Temperature Atm (F) | 550 |
| Media Ph Range | 0-14 |
| Min Temperature (C) | -130 |
| Min Temperature (F) | -200 |
| Package Primary UOM | Pound |
| Package Qty Measurement | Weight |
| Package Quantity | 10 lb / 4.535 kg |
| Package Quantity (imperial) | 10 lb |
| Package Quantity (metric) | 4.5 kg |
| Package Quantity Weight Imperial | 10 |
| Package Quantity Weight Imperial Unit of Measure | lb |
| Package Quantity Weight Metric | 5 |
| Package Quantity Weight Metric Unit of Measure | kg |
| Package Type | Spool |
| Pressure Max Rotary (bar) | 20 |
| Pressure Max Rotary (psi) | 300 |
| Primary Dimensional Unit of Measure | Imperial |
| Shipping Weight | 0 lbs |
| Style/Model | Style 5100 |
| Temp. Range in Atmosphere (C) | -130°C - 288°C |
| Temp. Range in Atmosphere (F) | -200°F - 550°F |
| Temperature Range (C) | -130°C - 288°C |
| Temperature Range (F) | -200°F - 550°F |
| UPC Code | 717744933296 |
| Weight To Length Conversion (m/kg) | 14.84 |
| Weight To Length Converstion (ft/lb) | 22.09 |
Frequently Asked Questions
How do I get pricing for 41096-3016?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 41096-3016?
41096-3016 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 41096-3016?
Key specifications include Application/Equipment: Mixers-Agitators, Other rotational equipment, Pumps; Compliances: REACH Compliant, RoHS Compliant; Compliances/Standards: REACH Compliant, RoHS Compliant; Construction: LATTICE BRAID®. The full specification table on this page lists every published attribute for this part.
How quickly can 41096-3016 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
