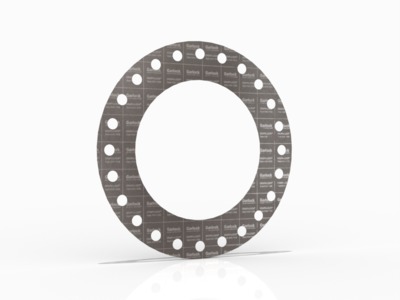

Garlock GRAPH-LOCK® Style 3124/3126 Pipe Flange Gaskets
GRAPH-LOCK® Style 3124/3126 Full Face Gasket, Graphite EN 1514-1 DN 500, 16 PN, 20.001 Inch ID X 28.150 Inch OD X 0.063 Inch Thick, 20 Bolt Holes
| Bolt Circle Diameter (Inch) | 25.591 |
|---|---|
| Bolt Circle Diameter (mm) | 650.01 |
| Bolt Hole Diameter (Inch) | 1.300 |
| Bolt Hole Diameter (mm) | 33.02 |
| Bolt Hole Quantity | 20 |
| Brand | GRAPH-LOCK® |
| Color | Black |
| Compliances | REACH Compliant, RoHS Compliant |
| Compliances/Standards | REACH Compliant, RoHS Compliant |
| Composition | Graphite |
| Diameter Nominal Pipe Size DN | 500 |
| Fiber | Graphite |
| Gasket Type | Full Face |
| Inside Diameter (Inch) | 20.001 |
| Inside Diameter (mm) | 508.03 |
| Max Temperature (C) | 454 |
| Max Temperature (F) | 850 |
| Min Temperature (C) | -268 |
| Min Temperature (F) | -450 |
| Outside Diameter (inch) | 28.150 |
| Outside Diameter (mm) | 715.01 |
| Pressure Max (bar) | 138 |
| Pressure Max (psi) | 2000 |
| Pressure PN | 16 |
| Primary Dimensional Unit of Measure | Imperial |
| Primary Nominal Thickness | 1/16 |
| Rubber Material | Graphit |
| Style/Model | Style 3124/3126 |
| Temperature Range (C) | -268°C - 454°C |
| Temperature Range (F) | -450°F - 850°F |
| Thickness (inch) | 0.063 |
| Thickness (mm) | 1.60 |
Frequently Asked Questions
How do I get pricing for 37735EN-F0500404?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 37735EN-F0500404?
37735EN-F0500404 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 37735EN-F0500404?
Key specifications include Bolt Circle Diameter (Inch): 25.591; Bolt Circle Diameter (mm): 650.01; Bolt Hole Diameter (Inch): 1.300; Bolt Hole Diameter (mm): 33.02. The full specification table on this page lists every published attribute for this part.
How quickly can 37735EN-F0500404 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

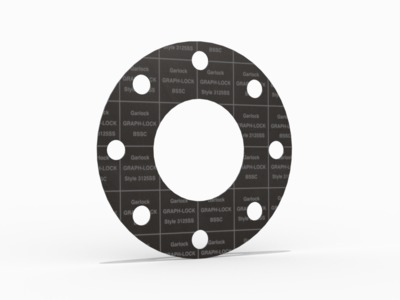

Garlock Garlock GRAPH-LOCK® Style 3125-SS Pipe Flange Gaskets
Garlock Garlock GRAPH-LOCK® Style 3124/3126 Pipe Flange Gaskets

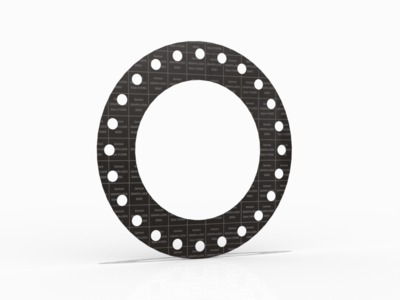

Garlock Garlock GRAPH-LOCK® Style 3125-SS Pipe Flange Gaskets

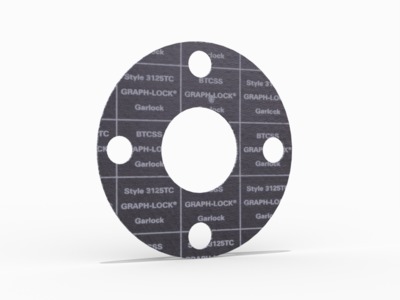

Garlock Garlock GRAPH-LOCK® Style 3125-TC Pipe Flange Gaskets
