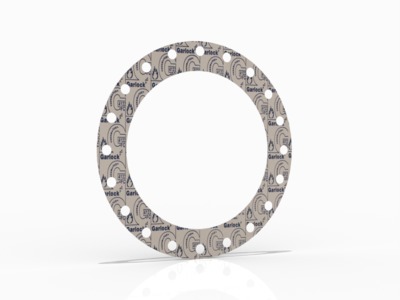

Garlock THERMa-PUR® Style 4122-FC Pipe Flange Gaskets

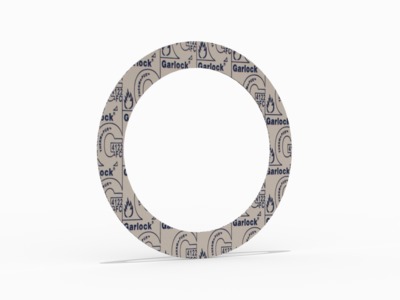

THERMa-PUR® Style 4122-FC Ring Gasket, Proprietary EN 1514-1 DN 1400, 6 PN, 55.906 Inch ID X 60.001 Inch OD X 0.063 Inch Thick DOVETAIL SEGMENTED
| Brand | THERMa-PUR® |
|---|---|
| Color | White |
| Compliances | REACH Compliant, RoHS Compliant |
| Compliances/Standards | REACH Compliant, RoHS Compliant |
| Composition | Proprietary |
| Diameter Nominal Pipe Size DN | 1400 |
| Fiber | Proprietary |
| Flange Standards/Pressure Class | EN 1514-1 PN 6 |
| Gasket Type | Ring |
| Inside Diameter (Inch) | 55.906 |
| Inside Diameter (mm) | 1420.01 |
| Max Temperature (C) | 1000 |
| Max Temperature (F) | 1832 |
| Outside Diameter (inch) | 60.001 |
| Outside Diameter (mm) | 1524.03 |
| Pipe Standard and Class | EN 1514-1 PN 6 |
| Pressure Max (bar) | 34.5 |
| Pressure Max (psi) | 500 |
| Pressure PN | 6 |
| Primary Dimensional Unit of Measure | Imperial |
| Primary Nominal Thickness | 1/16 |
| Rubber Material | Proprietary |
| Shipping Weight | 1.1551 lbs |
| Sort Priority | 400 |
| Style/Model | Style 4122-FC |
| Temperature Range (C) | -40°C - 1000°C |
| Temperature Range (F) | -40°F - 1832°F |
| Thickness (inch) | 0.063 |
| Thickness (mm) | 1.60 |
| UPC Code | 191074667555 |
