Garlock GYLON EPIX® Style 3505 EPX Pipe Flange Gaskets
GYLON EPIX® Style 3505 EPX Full Face Gasket, PTFE with Aluminosilicate Microspheres EN 1514-1 DN 10, 25 PN, 0.709 Inch ID X 3.544 Inch OD X 0.094 Inch Thick, 4 Bolt Holes Certified to NSF/ANSI/CAN 61-G & 372
| Bolt Circle Diameter (Inch) | 2.363 |
|---|---|
| Bolt Circle Diameter (mm) | 60.02 |
| Bolt Hole Diameter (Inch) | 0.552 |
| Bolt Hole Diameter (mm) | 14.02 |
| Bolt Hole Quantity | 4 |
| Brand | GYLON EPIX® |
| Color | Blue |
| Compliances | FDA Compliant, NSF® 61 Certified, REACH Compliant, RoHS Compliant, USP VI 88 Compliant, USP VI 661 Compliant, ADI/TSE Free |
| Compliances/Standards | ADI/TSE Free, FDA Compliant, NSF® 61 Certified, REACH Compliant, RoHS Compliant, USP VI 661 Compliant, USP VI 88 Compliant |
| Composition | PTFE with Aluminosilicate Microspheres |
| Diameter Nominal Pipe Size DN | 10 |
| Gasket Type | Full Face |
| Inside Diameter (Inch) | 0.709 |
| Inside Diameter (mm) | 18.01 |
| Min Temperature (C) | -268 |
| Min Temperature (F) | -450 |
| Outside Diameter (inch) | 3.544 |
| Outside Diameter (mm) | 90.02 |
| Pressure Max (bar) | 55 |
| Pressure Max (psi) | 800 |
| Pressure PN | 25 |
| Primary Dimensional Unit of Measure | Imperial |
| Primary Nominal Thickness | 3/32 |
| Rubber Chemical Name | Polytetrafluoroethylene |
| Rubber Material | PTFE |
| Shipping Weight | 0.0639 lbs |
| Sort Priority | 190 |
| Style/Model | Style 3505 EPX |
| Temperature Range (C) | -268°C - 260°C |
| Temperature Range (F) | -450°F - 500°F |
| Thickness (inch) | 0.094 |
| Thickness (mm) | 2.39 |
Frequently Asked Questions
How do I get pricing for 37132EPXEN-F0010506?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 37132EPXEN-F0010506?
37132EPXEN-F0010506 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 37132EPXEN-F0010506?
Key specifications include Bolt Circle Diameter (Inch): 2.363; Bolt Circle Diameter (mm): 60.02; Bolt Hole Diameter (Inch): 0.552; Bolt Hole Diameter (mm): 14.02. The full specification table on this page lists every published attribute for this part.
How quickly can 37132EPXEN-F0010506 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Garlock Garlock GYLON EPIX® Style 3510 EPX Pipe Flange Gaskets
Garlock Garlock GYLON EPIX® Style 3510 EPX Pipe Flange Gaskets

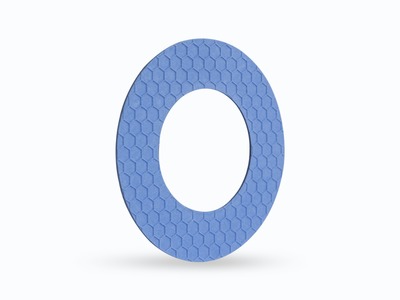

Garlock Garlock GYLON EPIX® Style 3504 EPX Pipe Flange Gaskets
