Garlock Hochdruck Style 3128 Pipe Flange Gaskets
Hochdruck Style 3128 Ring Gasket, Graphite EN 1514-1 DN 1800, 10 PN, 71.654 Inch ID X 77.638 Inch OD X 0.063 Inch Thick DOVETAIL SEGMENTED
| Brand | HOCHDRUCK® |
|---|---|
| Color | Black |
| Compliances | REACH Compliant, RoHS Compliant |
| Compliances/Standards | REACH Compliant, RoHS Compliant |
| Composition | Graphite |
| Diameter Nominal Pipe Size DN | 1800 |
| Fiber | Graphite |
| Flange Standards/Pressure Class | EN 1514-1 PN 10 |
| Gasket Type | Ring |
| Inside Diameter (Inch) | 71.654 |
| Inside Diameter (mm) | 1820.01 |
| Max Temperature (C) | 454 |
| Max Temperature (F) | 850 |
| Min Temperature (C) | -268 |
| Min Temperature (F) | -450 |
| Outside Diameter (inch) | 77.638 |
| Outside Diameter (mm) | 1972.01 |
| Pipe Standard and Class | EN 1514-1 PN 10 |
| Pressure Max (bar) | 138 |
| Pressure Max (psi) | 2000 |
| Pressure PN | 10 |
| Primary Dimensional Unit of Measure | Imperial |
| Primary Nominal Thickness | 1/16 |
| Shipping Weight | 1.8425 lbs |
| Sort Priority | 320 |
| Style/Model | Style 3128 |
| Temperature Range (C) | -268°C - 454°C |
| Temperature Range (F) | -450°F - 850°F |
| Thickness (inch) | 0.063 |
| Thickness (mm) | 1.60 |
| UPC Code | 191074655545 |
Frequently Asked Questions
How do I get pricing for 37128EN-R1800304?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 37128EN-R1800304?
37128EN-R1800304 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 37128EN-R1800304?
Key specifications include Brand: HOCHDRUCK®; Color: Black; Compliances: REACH Compliant, RoHS Compliant; Compliances/Standards: REACH Compliant, RoHS Compliant. The full specification table on this page lists every published attribute for this part.
How quickly can 37128EN-R1800304 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Garlock Garlock Hochdruck Style 3128 Pipe Flange Gaskets
Garlock Garlock Hochdruck Style 3128 Pipe Flange Gaskets

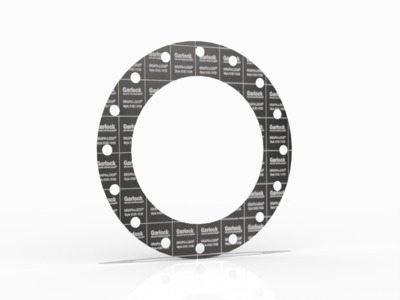

Garlock Garlock GRAPH-LOCK® Style 3123/3125 Pipe Flange Gaskets

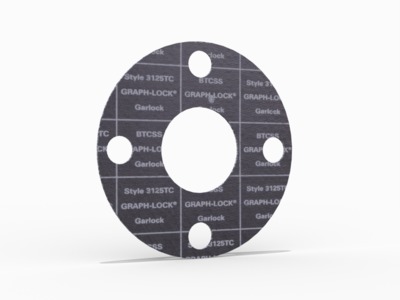

Garlock Garlock GRAPH-LOCK® Style 3125-TC Pipe Flange Gaskets
