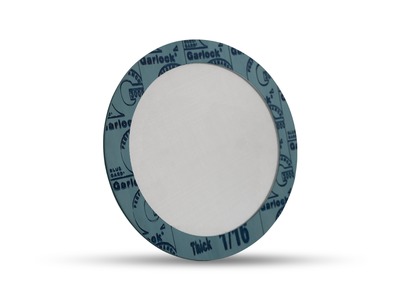

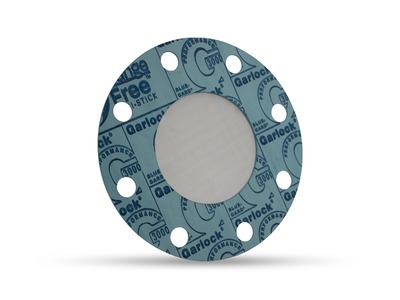

Garlock BLUE-GARD® Style 3000 Pipe Flange Strainer Gaskets
BLUE-GARD® Style 3000 Strainer Ring Gasket, 2 Inch ASME B16.5 Class 150, 0.125 Inch Thick 60 Mesh Screen
| Brand | BLUE-GARD® |
|---|---|
| Branding | Branded |
| Color | Blue |
| Compliances | REACH Compliant, RoHS Compliant |
| Compliances/Standards | REACH Compliant, RoHS Compliant |
| Composition | Aramid Fiber with Nitrile Binder (NBR) |
| Fiber | Aramid |
| Flange Standards/Pressure Class | ASME B16.5 Class 150 |
| Gasket Type | Ring |
| Inside Diameter (Inch) | 2.375 |
| Inside Diameter (mm) | 60.33 |
| Material | Aramid Fiber with Nitrile Binder (NBR) |
| Material Abbreviation | NBR |
| Max Temperature (C) | 371 |
| Max Temperature (F) | 700 |
| Mesh Density (wires/sq inch) | 60 |
| Min Temperature (C) | -73 |
| Min Temperature (F) | -100 |
| Nominal Pipe Size (inch) | 2.000 |
| Nominal Pipe Size DN (mm) | 50.0 |
| Nominal Pipe Size Fraction (Inch) | 2 |
| Outside Diameter (inch) | 4.125 |
| Outside Diameter (mm) | 104.78 |
| Pipe Standard and Class | ASME B16.5 Class 150 |
| Pressure Class | 150 |
| Pressure Max (bar) | 70 |
| Pressure Max (psi) | 1000 |
| Primary Dimensional Unit of Measure | Imperial |
| Primary Nominal Thickness | 1/8 in |
| Shipping Weight | 0.068 lbs |
| Style/Model | Style 3000 |
| Tab | No |
| Temperature Range (C) | -73°C - 371°C |
| Temperature Range (F) | -100°F - 700°F |
| Thickness (inch) | 0.125 |
| Thickness (mm) | 3.18 |
