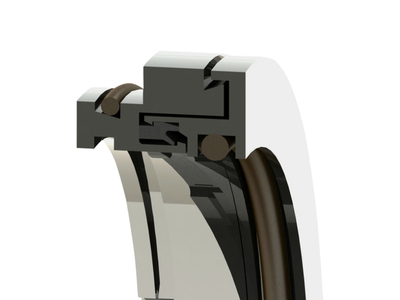

Garlock KLOZURE® GUARDIAN® Bearing Isolator Labyrinth Seal
KLOZURE® GUARDIAN® Bearing Isolator/Labyrinth Seal, Flanged, Small Cross-Section, Standard, Bronze, 1.575 inch Shaft, 2.162 inch Bore, 0.626 inch Width, 0.375 inch Flange
| Axial Motion (inch) | +/-0.015 |
|---|---|
| Axial Motion (mm) | +/-0.38 |
| Bore Size (inch) | 2.162 |
| Bore Size (mm) | 54.91 |
| Brand | KLOZURE® GUARDIAN® |
| Compliances | API 610 Compliant, IP65 Rating, IEEE 841 Compliant, NEMA MG 1 Compliant |
| Compliances/Standards | API 610 Compliant, IEEE 841 Compliant, IP65 Rating, NEMA MG 1 Compliant |
| Configuration Type (Isolators) | Flanged, Small Cross-Section |
| Flange Exists | Yes |
| Flange Length (inch) | 0.375 |
| Flange Length (mm) | 9.53 |
| Material | Bronze |
| Max Shaft Surface Speed (feet/min) | 12,000 |
| Max Shaft Surface Speed (meter/sec) | 60.9 |
| Max Temperature (C) | 204 |
| Max Temperature (F) | 400 |
| Min Temperature (C) | -30 |
| Min Temperature (F) | -22 |
| Misalignment Tolerance (inch) | +/-0.010 |
| Misalignment Tolerance (mm) | +/-0.25 |
| ORing Material | FKM |
| Pressure Max (bar) | Ambient |
| Pressure Max (psi) | Ambient |
| Primary Dimensional Unit of Measure | Imperial |
| Rotor Material | Bronze |
| Shaft Size (inch) | 1.575 |
| Shaft Size (mm) | 40.01 |
| Shipping Weight | 0.601 lbs |
| Sort Priority | 600 |
| Split or Solid | Solid |
| Standard/Special | Standard |
| Stator Material | Bronze |
| Style/Model | GUARDIAN |
| Unitizing Ring Material | Graphite Filled PTFE |
| UPC Code | 191074051644 |
| Width (inch) | 0.626 |
| Width (mm) | 15.90 |
Frequently Asked Questions
How do I get pricing for 29607-8748?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 29607-8748?
29607-8748 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 29607-8748?
Key specifications include Axial Motion (inch): +/-0.015; Axial Motion (mm): +/-0.38; Bore Size (inch): 2.162; Bore Size (mm): 54.91. The full specification table on this page lists every published attribute for this part.
How quickly can 29607-8748 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
