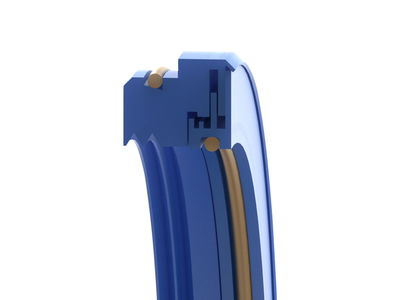

Garlock KLOZURE® ISO-GARD® Bearing Isolator Labyrinth Seal
KLOZURE® ISO-GARD® Bearing Isolator/Labyrinth Seal, Flanged, Standard, Glass Filled PTFE, 7.500 inch Shaft, 8.750 inch Bore, 0.748 inch Width, 0.250 inch Flange
| Axial Motion (inch) | +/-0.015 |
|---|---|
| Axial Motion (mm) | +/-0.38 |
| Bore Size (inch) | 8.750 |
| Bore Size (mm) | 222.25 |
| Brand | KLOZURE® ISO-GARD® |
| Compliances | FDA Compliant, IP55 Rating, IEEE 841 Compliant, NEMA MG 1 Compliant |
| Compliances/Standards | FDA Compliant, IEEE 841 Compliant, IP55 Rating, NEMA MG 1 Compliant |
| Configuration Type (Isolators) | Flanged |
| Flange Exists | Yes |
| Flange Length (inch) | 0.250 |
| Flange Length (mm) | 6.35 |
| Material | Glass Filled PTFE |
| Max Bore Size (inch) | 8.752 |
| Max Bore Size (mm) | 222.30 |
| Max Shaft Size (inch) | 7.503 |
| Max Shaft Size (mm) | 190.58 |
| Max Shaft Surface Speed (feet/min) | 4,500 |
| Max Shaft Surface Speed (meter/sec) | 22.9 |
| Max Temperature (C) | 204 |
| Max Temperature (F) | 400 |
| Min Bore Size (inch) | 8.748 |
| Min Bore Size (mm) | 222.20 |
| Min Shaft Size (inch) | 7.497 |
| Min Shaft Size (mm) | 190.42 |
| Min Temperature (C) | -30 |
| Min Temperature (F) | -22 |
| Misalignment Tolerance (inch) | +/-0.020 |
| Misalignment Tolerance (mm) | +/-0.51 |
| ORing Material | FDA Compliant FKM |
| Pressure Max (bar) | Ambient |
| Pressure Max (psi) | Ambient |
| Primary Dimensional Unit of Measure | Imperial |
| Rotor Material | Glass Filled PTFE |
| Shaft Size (inch) | 7.500 |
| Shaft Size (mm) | 190.50 |
| Shipping Weight | 0.302 lbs |
| Sort Priority | 570 |
| Split or Solid | Solid |
| Standard/Special | Standard |
| Stator Material | Glass Filled PTFE |
| Style/Model | ISO-GARD |
| Width (inch) | 0.748 |
| Width (mm) | 19.00 |
Frequently Asked Questions
How do I get pricing for 29500-5992?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 29500-5992?
29500-5992 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 29500-5992?
Key specifications include Axial Motion (inch): +/-0.015; Axial Motion (mm): +/-0.38; Bore Size (inch): 8.750; Bore Size (mm): 222.25. The full specification table on this page lists every published attribute for this part.
How quickly can 29500-5992 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

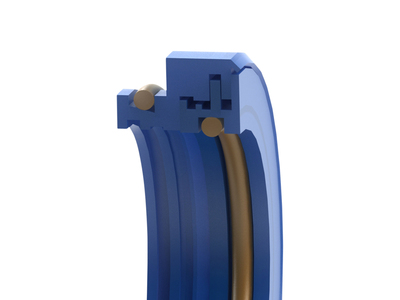

Garlock Garlock KLOZURE® ISO-GARD® Bearing Isolator Labyrinth Seal

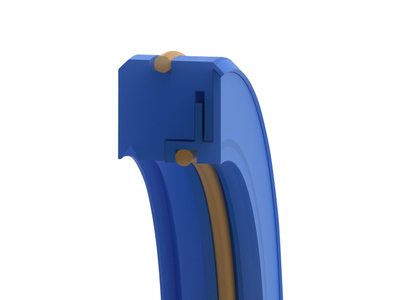

Garlock Garlock KLOZURE® ISO-GARD® Bearing Isolator Labyrinth Seal
