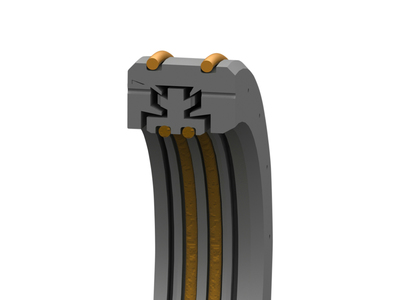

Garlock KLOZURE® EQUALIZER™ Bearing Isolator Labyrinth Seal
KLOZURE® EQUALIZER™ Bearing Isolator/Labyrinth Seal, Flangeless, Standard, Graphite Filled PTFE, 1.125 inch Shaft, 2.000 inch Bore, 0.626 inch Width
| Axial Motion (inch) | +/-0.015 |
|---|---|
| Axial Motion (mm) | +/-0.38 |
| Bore Size (inch) | 2.000 |
| Brand | KLOZURE® EQUALIZER™ |
| Configuration Type (Isolators) | Flangeless |
| Flange Exists | No |
| Flange Length (inch) | 0.000 |
| Flange Length (mm) | 0.00 |
| Material | Graphite Filled PTFE |
| Max Shaft Surface Speed (feet/min) | 4,500 |
| Max Shaft Surface Speed (meter/sec) | 22.9 |
| Max Temperature (C) | 204 |
| Max Temperature (F) | 400 |
| Min Temperature (C) | -30 |
| Min Temperature (F) | -22 |
| Misalignment Tolerance (inch) | +/-0.015 |
| Misalignment Tolerance (mm) | +/-0.38 |
| ORing Material | FKM |
| Pressure Max (bar) | Ambient |
| Pressure Max (psi) | Ambient |
| Primary Dimensional Unit of Measure | Imperial |
| Rotor Material | Graphite Filled PTFE |
| Shaft Size (inch) | 1.125 |
| Shaft Size (mm) | 28.58 |
| Shipping Weight | 0.205 lbs |
| Sort Priority | 75 |
| Split or Solid | Solid |
| Standard/Special | Standard |
| Stator Material | Graphite Filled PTFE |
| Style/Model | EQUALIZER |
| UPC Code | 717744079727 |
| Width (inch) | 0.626 |
| Width (mm) | 15.90 |
Frequently Asked Questions
How do I get pricing for 24801-0988?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 24801-0988?
24801-0988 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 24801-0988?
Key specifications include Axial Motion (inch): +/-0.015; Axial Motion (mm): +/-0.38; Bore Size (inch): 2.000; Brand: KLOZURE® EQUALIZER™. The full specification table on this page lists every published attribute for this part.
How quickly can 24801-0988 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
