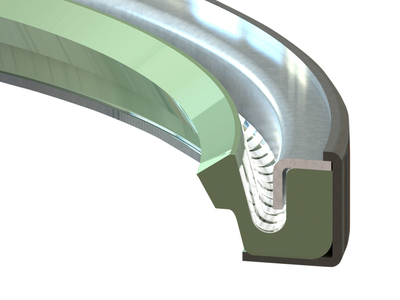

Garlock KLOZURE® Model 59 Oil Seal
KLOZURE® Model 59 Oil Seal, MILL-RIGHT® V (FKM), CRS, 14.500 in Shaft, 16.000 in Bore, 0.688 in Width
| Bore Size (inch) | 16.000 |
|---|---|
| Bore Size (mm) | 406.40 |
| Brand | KLOZURE® |
| Case Material | CRS |
| Configuration Type (Seals) | Single Lip |
| Lip Base Material Abbreviation | FKM |
| Lip Base Material Name | Fluoroelastomer |
| Lip Material | MILL-RIGHT® V |
| Max Shaft Surface Speed (feet/min) | 5,000 |
| Max Shaft Surface Speed (meter/sec) | 25.4 |
| Max Temperature (C) | 204 |
| Max Temperature (F) | 400 |
| Min Temperature (C) | -30 |
| Min Temperature (F) | -22 |
| Misalignment Tolerance (inch) | 0.093 in @ 2,500 ft/min; .047 in @ 5,000 ft/min |
| Misalignment Tolerance (mm) | 2.36 mm @ 12.7 m/s; 1.19 mm @ 25.4 m/s |
| Pressure Max (bar) | 0.48 |
| Pressure Max (psi) | 7 |
| Primary Dimensional Unit of Measure | Imperial |
| Shaft Size (inch) | 14.500 |
| Shaft Size (mm) | 368.30 |
| Shipping Weight | 3.11 lbs |
| Sort Priority | 570 |
| Spacers Exist | No |
| Split or Solid | Solid |
| Spring Material | 302SS |
| Standard/Special | Standard |
| Style/Model | Model 59 |
| UPC Code | 717744567033 |
| Width (inch) | 0.688 |
| Width (mm) | 17.48 |
Frequently Asked Questions
How do I get pricing for 24702-4142?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 24702-4142?
24702-4142 is a Garlock part. KKM Solutions sources Garlock components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 24702-4142?
Key specifications include Bore Size (inch): 16.000; Bore Size (mm): 406.40; Brand: KLOZURE®; Case Material: CRS. The full specification table on this page lists every published attribute for this part.
How quickly can 24702-4142 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
