Endress+Hauser TU54 Flanged barstock thermowell, US style
Endress+Hauser TU54 - Temperature - Temperature range: -200...700 °C (-328...1.292 °F); Measuring principle: Bar stock Thermowell; Characteristic / Application: US-style flanged process connections.
Endress+Hauser TU54 is a Temperature catalog item from Endress+Hauser. The manufacturer's published data for this part number specifies Temperature range: -200...700 °C (-328...1.292 °F) and Measuring principle: Bar stock Thermowell.
flange ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) ASME 1" 600 RF (B16.5) ASME 1" 900/1500 RF (B16.5) ASME 1.5" 150 RF (B16.5) ASME 1.5" 300 RF (B16.5) ASME 1.5" 600 RF (B16.5) ASME 1.5" 900/1500 RF (B16.5) ASME 2" 150 RF (B16.5) ASME 2" 300 RF (B16.5) ASME 2" 600 RF (B16.5) ASME 2" 900/1500 RF (B16.5) ASME 3" 150 RF (B16.5) ASME 3" 300 RF (B16.5) ASME 3" 600 RF (B16.5)
Published specifications for this part include Characteristic / Application: US-style flanged process connections; Tip shape: straight tapered stepped; Max. process pressure (static): 500 bar (7252 psi); Head connection: internal thread: 1/2" NPT; Maximum standard immersion length: 24"; Thermowell root diameter: 3/4'' 7/8" 1 1/16"; Medium contact material: 316/ 316L 304 others on request; Wetted part finishing (Ra): 32 µin (0.80 µin); Max. process pressure at 400 °C: depends on configuration. The complete technical table is shown in the Specifications tab on this page.
| Characteristic / Application | US-style flanged process connections |
|---|---|
| Head connection | internal thread: 1/2" NPT |
| Max. process pressure (static) | 500 bar (7252 psi) |
| Max. process pressure at 400 °C | depends on configuration |
| Maximum standard immersion length | 24" |
| Measuring principle | Bar stock Thermowell |
| Medium contact material | 316/ 316L 304 others on request |
| Process Connection | flange ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) ASME 1" 600 RF (B16.5) ASME 1" 900/1500 RF (B16.5) ASME 1.5" 150 RF (B16.5) ASME 1.5" 300 RF (B16.5) ASME 1.5" 600 RF (B16.5) ASME 1.5" 900/1500 RF (B16.5) ASME 2" 150 RF (B16.5) ASME 2" 300 RF (B16.5) ASME 2" 600 RF (B16.5) ASME 2" 900/1500 RF (B16.5) ASME 3" 150 RF (B16.5) ASME 3" 300 RF (B16.5) ASME 3" 600 RF (B16.5) |
| Temperature range | -200...700 °C (-328...1.292 °F) |
| Thermowell root diameter | 3/4'' 7/8" 1 1/16" |
| Tip shape | straight tapered stepped |
| Wetted part finishing (Ra) | 32 µin (0.80 µin) |
Frequently Asked Questions
How do I get pricing for TU54?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TU54?
TU54 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TU54?
Key specifications include Characteristic / Application: US-style flanged process connections; Head connection: internal thread: 1/2" NPT; Max. process pressure (static): 500 bar (7252 psi); Max. process pressure at 400 °C: depends on configuration. The full specification table on this page lists every published attribute for this part.
How quickly can TU54 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser TU53 Threaded barstock thermowell, US style
Endress+Hauser Endress+Hauser U.S. Style thermowell TU67
Endress+Hauser Endress+Hauser Thermowell TW10

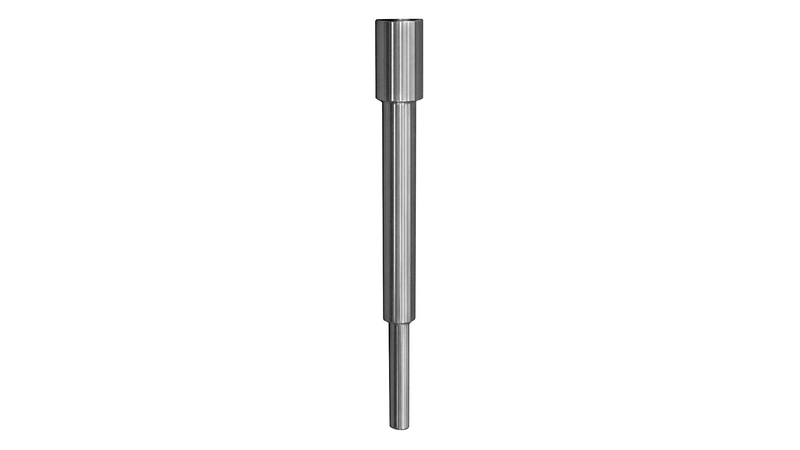

Endress+Hauser Endress+Hauser TU52 Socket weld barstock thermowell, US style
