Endress+Hauser iTHERM ModuLine TT151Barstock thermowell
| Characteristic / Application | metric style compliant according to ASME, DIN or NAMUR standard universal use |
|---|---|
| Head connection | internal thread: M14x1,5 M18x1,5 M20x1,5 M27x2 1/2" NPT 1/2" NPSM 1/2"NPSC G1/2" G3/4" M24x1,5 sliding |
| Max. process pressure (static) | 500 bar (7252 psi) Depending on Configuration |
| Max. process pressure at 400 °C | depends on process connection and material |
| Maximum standard immersion length | 1500 mm |
| Measuring principle | Bar stock Thermowell |
| Medium contact material | Wide selection of materials including: 316 316L 316Ti 347 310 Alloy600 AlloyC276 10CrMo9-10 13CrMo4-5 16Mo3 A105 C22.8 Duplex Titan Gr.2 316+316L dual rated P355NH |
| Process Connection | To be threaded weld in with flange according to ASME, EN or ISO |
| Temperature range | -200…1100 °C (-328...2.012 °F) Depending on Configuration |
| Thermowell root diameter | 9…50 mm |
| Tip shape | Straight Tappered Stepped partly tappered |
| Wetted part finishing (Ra) | < 0.8 μm (31.50 μin) < 1.6 μm (63.00 μin) DIN Standard |
Frequently Asked Questions
How do I get pricing for TT151?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TT151?
TT151 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TT151?
Key specifications include Characteristic / Application: metric style compliant according to ASME, DIN or NAMUR standard universal use; Head connection: internal thread: M14x1,5 M18x1,5 M20x1,5 M27x2 1/2" NPT 1/2" NPSM 1/2"NPSC G1/2" G3/4" M24x1,5 sliding; Max. process pressure (static): 500 bar (7252 psi) Depending on Configuration; Max. process pressure at 400 °C: depends on process connection and material. The full specification table on this page lists every published attribute for this part.
How quickly can TT151 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

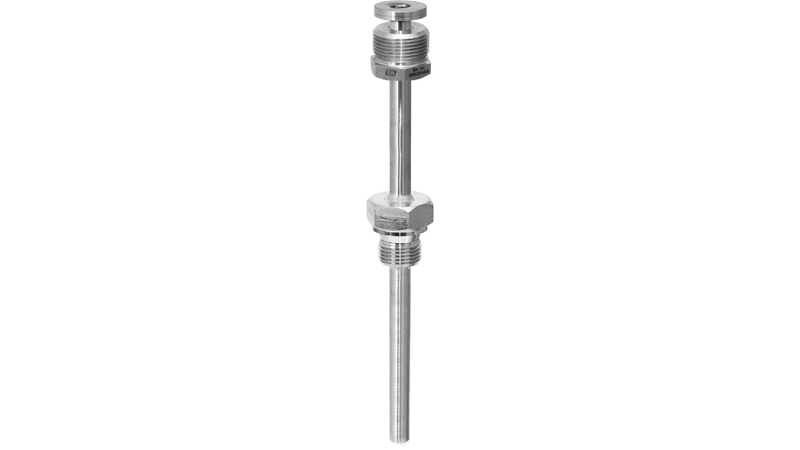

Endress+Hauser Endress+Hauser iTHERM ModuLine TT131Welded thermowell

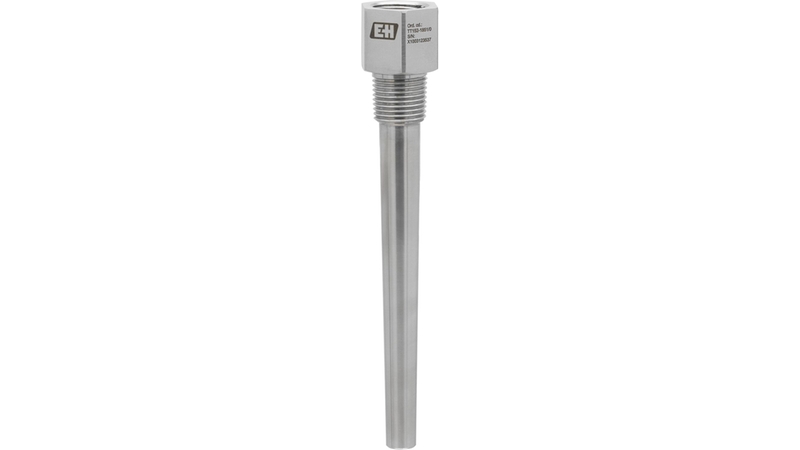

Endress+Hauser Endress+Hauser iTHERM ModuLine TT152Barstock thermowell

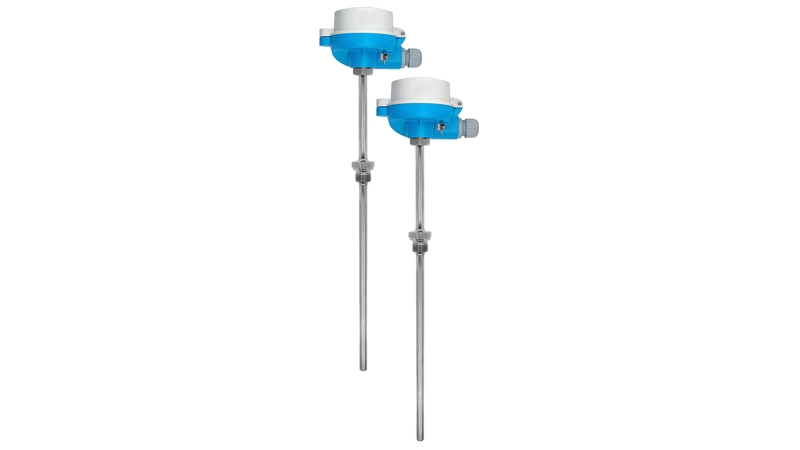

Endress+Hauser Endress+Hauser iTHERM ModuLine TST90Industrial modular thermometer

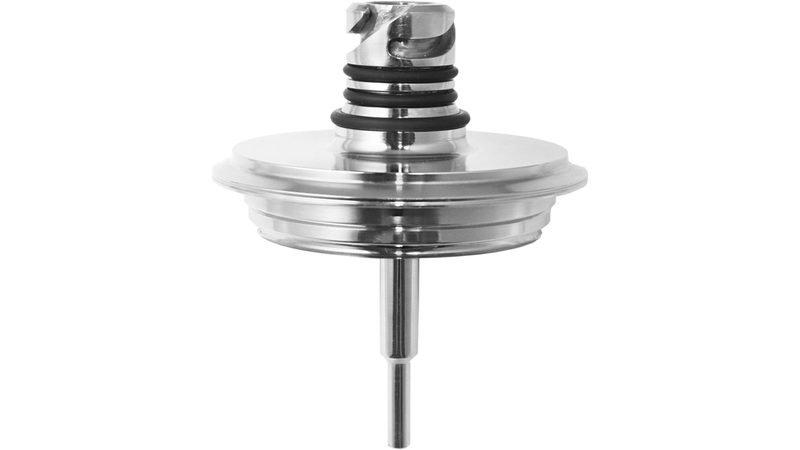

Endress+Hauser Endress+Hauser iTHERM ModuLine TT411Welded thermowell

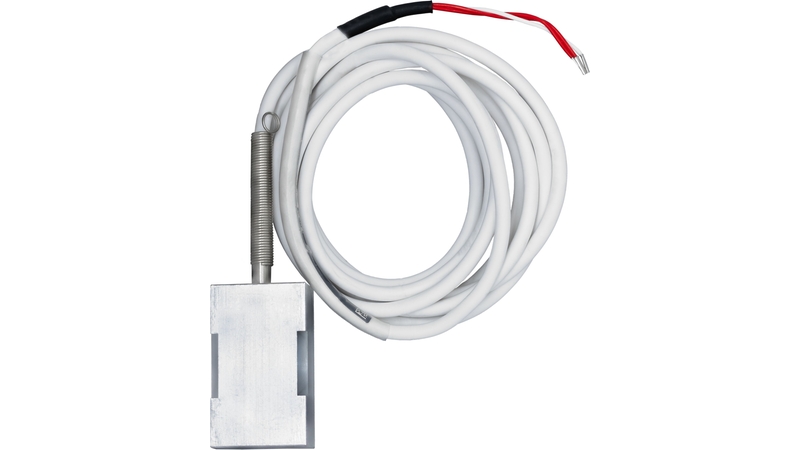

Endress+Hauser Endress+Hauser iTHERM SurfaceLine TST602 Surface thermometer
