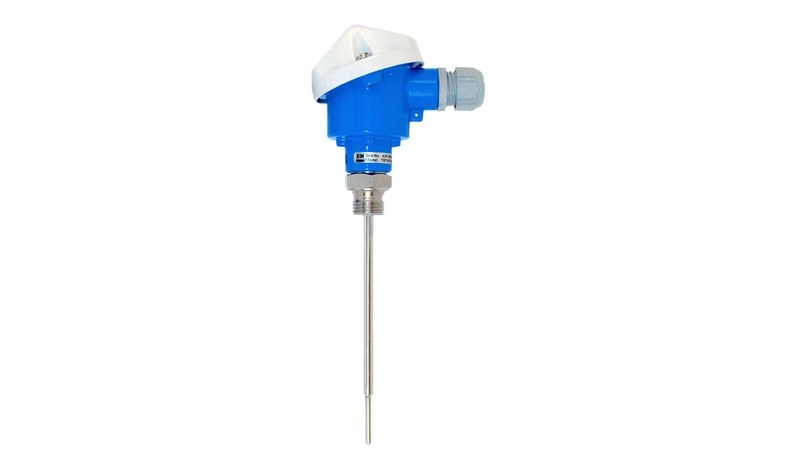

Endress+Hauser RTD Thermometer TST41N
Endress+Hauser TST41N - Temperature - Accuracy: class A acc. to IEC 60751 class AA acc. to IEC 60751; Response time: depending on configuration t50 = 3 s t90 = 6 s; Process Connection: male thread: G1/2" G3/4" G1".
In our catalog, the TST41N from Endress+Hauser is listed under the Temperature category. The manufacturer's published data for this part number specifies Accuracy: class A acc. to IEC 60751 class AA acc. to IEC 60751 and Response time: depending on configuration t50 = 3 s t90 = 6 s.
metric style modular temperature assembly fast response time (reduced/tapered tip) threaded process connection without neck
The specification set recorded for this part number covers Process Connection: male thread: G1/2" G3/4" G1" NPT1/2" NPT3/4" NPT1" M20x1.5; Thermowell / protection tube: without (not intended to use with thermowell); Insert / probe: mineral insulated (MI), flexible; Outer diameter protection tube / Insert: 6,0 mm (0,24'') 9,0 mm (0,35''); Max. immersion length on request: up to 10.000,00 mm (393,70''); Material protection tube/ thermowell: 1.4404 (316L); Tip shape: reduced; Surface roughness Ra: 0,8 μm (31,5 μin.); Operating temperature range: PT 100: -50 °C ... 600 °C (-58 °F ...1.112 °F); Max. process pressure (static): at 20 °C: 20 bar (290 psi); Integration head transmitter: yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS). The complete technical table is shown in the Specifications tab on this page.
| Accuracy | class A acc. to IEC 60751 class AA acc. to IEC 60751 |
|---|---|
| Characteristic / Application | metric style modular temperature assembly fast response time (reduced/tapered tip) threaded process connection without neck |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | 1.4404 (316L) |
| Max. immersion length on request | up to 10.000,00 mm (393,70'') |
| Max. process pressure (static) | at 20 °C: 20 bar (290 psi) |
| Operating temperature range | PT 100: -50 °C ... 600 °C (-58 °F ...1.112 °F) |
| Outer diameter protection tube / Insert | 6,0 mm (0,24'') 9,0 mm (0,35'') |
| Process Connection | male thread: G1/2" G3/4" G1" NPT1/2" NPT3/4" NPT1" M20x1.5 |
| Response time | depending on configuration t50 = 3 s t90 = 6 s |
| Surface roughness Ra | 0,8 μm (31,5 μin.) |
| Thermowell / protection tube | without (not intended to use with thermowell) |
| Tip shape | reduced |
Frequently Asked Questions
How do I get pricing for TST41N?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TST41N?
TST41N is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TST41N?
Key specifications include Accuracy: class A acc. to IEC 60751 class AA acc. to IEC 60751; Characteristic / Application: metric style modular temperature assembly fast response time (reduced/tapered tip) threaded process connection without neck; Insert / probe: mineral insulated (MI), flexible; Integration head transmitter: yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS). The full specification table on this page lists every published attribute for this part.
How quickly can TST41N ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser RTD Thermometer TST414

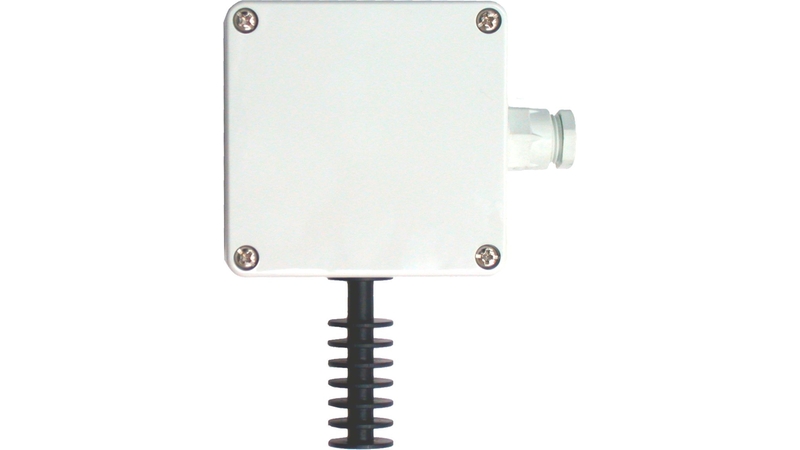

Endress+Hauser Endress+Hauser RTD Thermometer TST434
