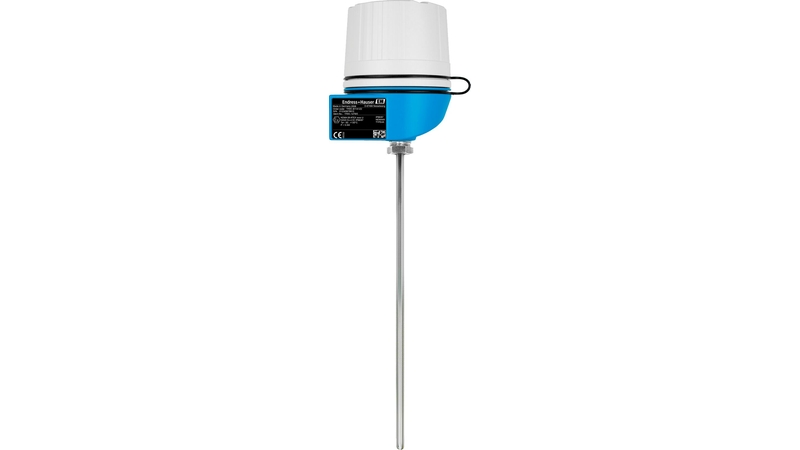

Endress+Hauser iTHERM ModuLine TR65Industrial modular thermometer
| Accuracy | class A acc. to IEC 60751 class AA acc. to IEC 60751 |
|---|---|
| Certification | Gost Metrology SIL (transmitter only) |
| Characteristic / Application | metric style modular temperature assembly for heavy duty applications suitable for hazardous areas threaded process connection without neck |
| Ex - approvals | ATEX Ex ia, Ex d, Ex nA IECEx Ex ia, Ex d, Ex tD EAC Ex ia, Ex d NEPSI Ex ia, Ex d Explosion proof |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | 1.4404 (316L) |
| Max. immersion length on request | up to 30.000,00 mm (1.181,10'') |
| Max. process pressure (static) | at 20 °C: 80 bar (1.160 psi) |
| Measuring principle | Resistance Temperature Detector |
| Operating temperature range | PT100 TF iTHERM StrongSens: -50 °C ...500 °C (-58 °F ...932 °F) PT100 WW: -200 °C ...600 °C (-328 °F ...1.112 °F) PT100 TF: -50 °C ...400 °C (-58 °F ...752 °F) |
| Outer diameter protection tube / Insert | 3,0 mm (0,12'') 6,0 mm (0,24'') |
| Process Connection | male thread: NPT1/2" NPT3/4" M20x1,5 compression fitting: NPT1/2" NPT3/4" |
| Response time | t50 = 2 s t90 = 5 s |
| Surface roughness Ra | Not defined |
| Thermowell / protection tube | without (not intended to use with thermowell) |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TR65?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TR65?
TR65 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TR65?
Key specifications include Accuracy: class A acc. to IEC 60751 class AA acc. to IEC 60751; Certification: Gost Metrology SIL (transmitter only); Characteristic / Application: metric style modular temperature assembly for heavy duty applications suitable for hazardous areas threaded process connection without neck; Ex - approvals: ATEX Ex ia, Ex d, Ex nA IECEx Ex ia, Ex d, Ex tD EAC Ex ia, Ex d NEPSI Ex ia, Ex d Explosion proof. The full specification table on this page lists every published attribute for this part.
How quickly can TR65 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser RTD Thermometer TR63

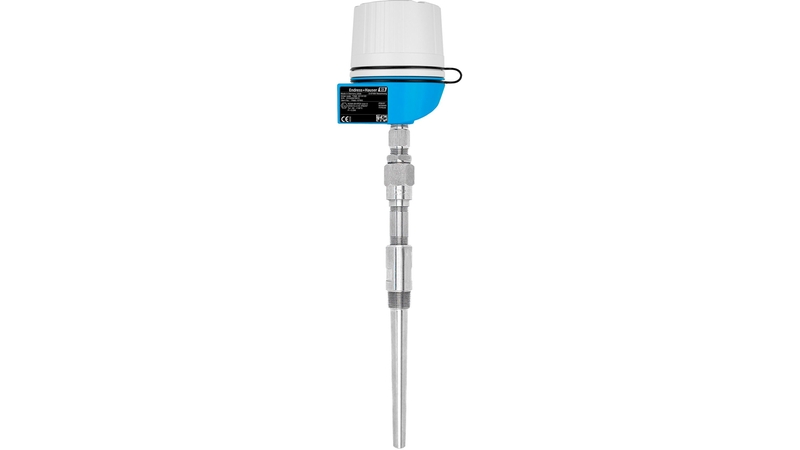

Endress+Hauser Endress+Hauser TR66Explosion-proof Pt100 Thermometer

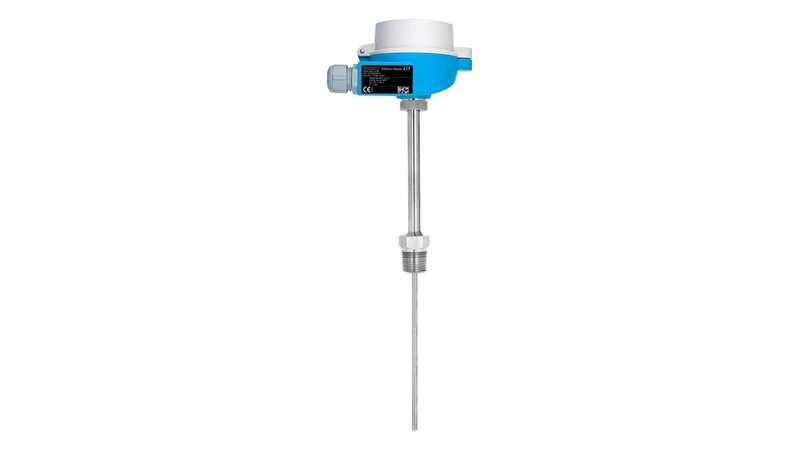

Endress+Hauser Endress+Hauser RTD Thermometer TR88

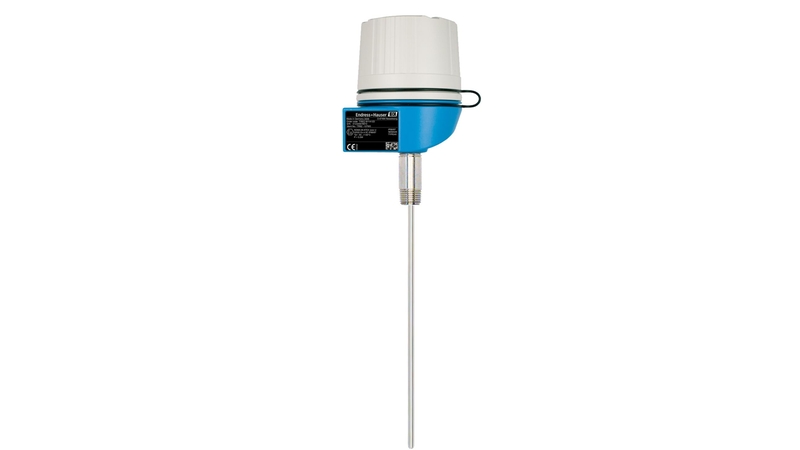

Endress+Hauser Endress+Hauser Thermocouple TR62

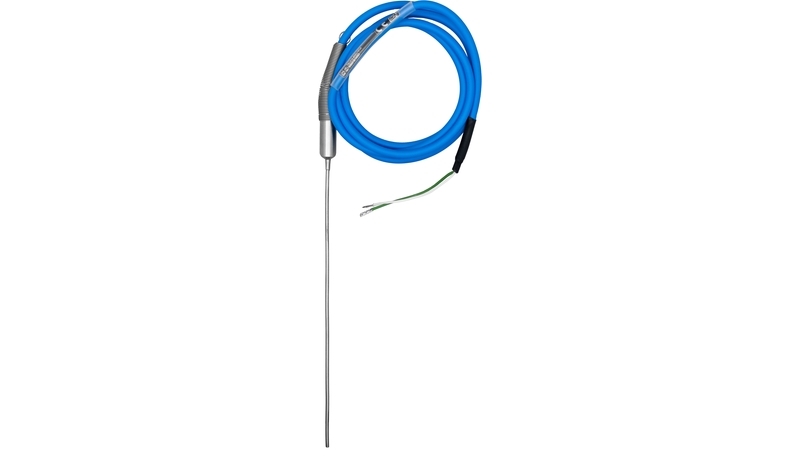

Endress+Hauser Endress+Hauser iTHERM CableLine TSC310Cable probe
