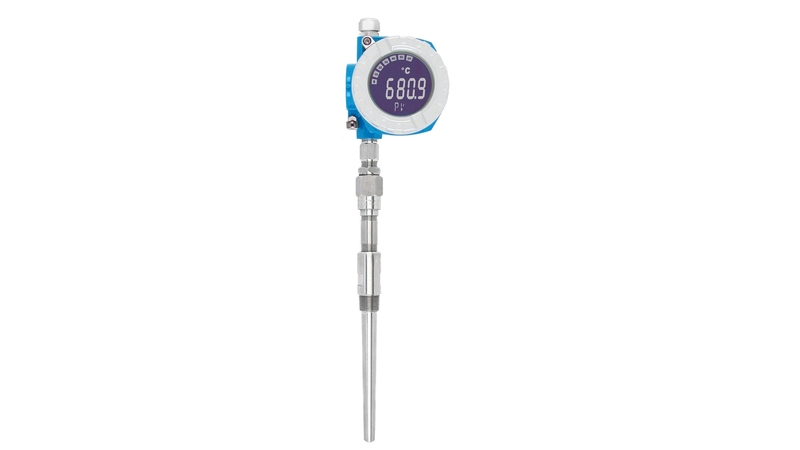

Endress+Hauser Thermocouple TMT162C
Endress+Hauser TMT162C - Temperature - Accuracy: class 1 acc. to IEC 60584 class 2 acc. to IEC 60584; Response time: depending on configuration t50 = 3 s t90 = 7 s; Certification: Gost Metrology.
In our catalog, the TMT162C from Endress+Hauser is listed under the Temperature category. The manufacturer's published data for this part number specifies Accuracy: class 1 acc. to IEC 60584 class 2 acc. to IEC 60584 and Response time: depending on configuration t50 = 3 s t90 = 7 s.
US style modular temperature assembly for heavy duty applications suitable for hazardous areas with neck to use with thermowell backlit display
Published specifications for this part include Certification: Gost Metrology; Process Connection: male thread: G1/2" NPT1/2" NPT3/4" M24x1.5; Thermowell / protection tube: to use with thermowell; Insert / probe: mineral insulated (MI), flexible; Outer diameter protection tube / Insert: 6,0 mm (0,24''); Max. immersion length on request: up to 30.000,00 mm (1.181,10''); Material protection tube/ thermowell: Not defined; Optional coating: Not defined; Tip shape: straight; Max. process pressure (static): up to 20 °C: 480 bar (6.962 psi); Integration head transmitter: yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS); Ex - approvals: ATEX II ATEX Eex explosion proof. See the Specifications tab on this page for the full technical table.
| Accuracy | class 1 acc. to IEC 60584 class 2 acc. to IEC 60584 |
|---|---|
| Certification | Gost Metrology |
| Characteristic / Application | US style modular temperature assembly for heavy duty applications suitable for hazardous areas with neck to use with thermowell backlit display |
| Ex - approvals | ATEX II ATEX Eex explosion proof |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) |
| Material protection tube/ thermowell | Not defined |
| Max. immersion length on request | up to 30.000,00 mm (1.181,10'') |
| Max. process pressure (static) | up to 20 °C: 480 bar (6.962 psi) |
| Operating temperature range | Type K: -40 °C ...800 °C (-40 °F ...1.472 °F) Type J: -40 °C ...750 °C (-40 °F ...1.382 °F) |
| Optional coating | Not defined |
| Outer diameter protection tube / Insert | 6,0 mm (0,24'') |
| Process Connection | male thread: G1/2" NPT1/2" NPT3/4" M24x1.5 |
| Response time | depending on configuration t50 = 3 s t90 = 7 s |
| Thermowell / protection tube | to use with thermowell |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TMT162C?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TMT162C?
TMT162C is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TMT162C?
Key specifications include Accuracy: class 1 acc. to IEC 60584 class 2 acc. to IEC 60584; Certification: Gost Metrology; Characteristic / Application: US style modular temperature assembly for heavy duty applications suitable for hazardous areas with neck to use with thermowell backlit display; Ex - approvals: ATEX II ATEX Eex explosion proof. The full specification table on this page lists every published attribute for this part.
How quickly can TMT162C ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser RTD Thermometer TMT162R
Endress+Hauser Endress+Hauser iTEMP TMT162 temperature transmitter

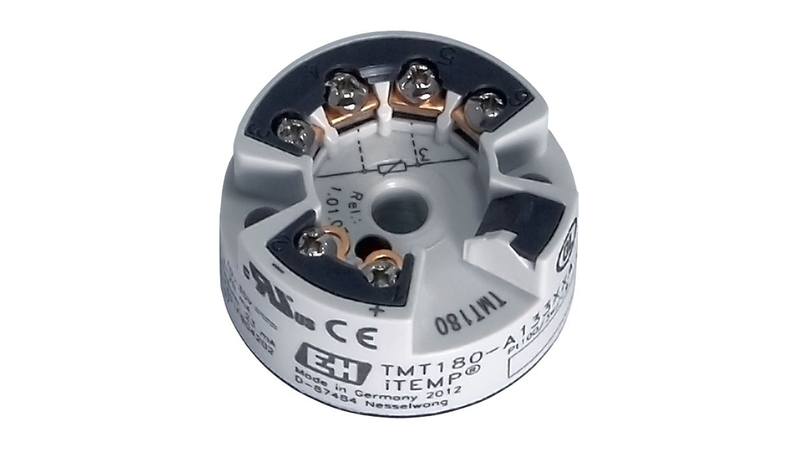

Endress+Hauser Endress+Hauser iTEMP Pt TMT180
