Endress+Hauser iTHERM CableLine TH56Cable probe
| Accuracy | Standard acc. to ASTM E-230 Special acc. to ASTM E-230 |
|---|---|
| Characteristic / Application | Industrial US style cable probe process connection as compression fitting |
| Insert / probe | mineral insulated (MI), flexible |
| Integration head transmitter | no |
| Material protection tube/ thermowell | Sensor sheath 316 Alloy 600 |
| Max. immersion length on request | up to 96" (2438 mm) others on request |
| Max. process pressure (static) | Standard acc. to ASTM E-230 Special acc. to ASTM E-230 |
| Measuring principle | Thermocouple |
| Operating temperature range | Type T: -270 °C ...370 °C (-454 °F ...698 °F) Type J: -210 °C ...720 °C (-346 °F ...1.328 °F) Type E: -270 °C ...820 °C (-454 °F ...1.508 °F) Type K: -270 °C ...1.150 °C (-454 °F ...2.102 °F) Type N: -270 °C ... 1.150 °C (-454 °F ...2.102 °F) |
| Optional coating | not applicable |
| Outer diameter protection tube / Insert | 1/16'' (1,59 mm) 1/8'' (3,18 mm) 3/16'' (4,76 mm) 1/4'' (6,35 mm) |
| Process Connection | compression fitting: NPT1/8" NPT1/4" |
| Response time | 63% rt = 0,3 s |
| Surface roughness Ra | not defined |
| Thermowell / protection tube | without (not intended to use with thermowell) |
| Tip shape | straight |
Frequently Asked Questions
How do I get pricing for TH56?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the TH56?
TH56 is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of TH56?
Key specifications include Accuracy: Standard acc. to ASTM E-230 Special acc. to ASTM E-230; Characteristic / Application: Industrial US style cable probe process connection as compression fitting; Insert / probe: mineral insulated (MI), flexible; Integration head transmitter: no. The full specification table on this page lists every published attribute for this part.
How quickly can TH56 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser TH55Modular TC thermometer, US style

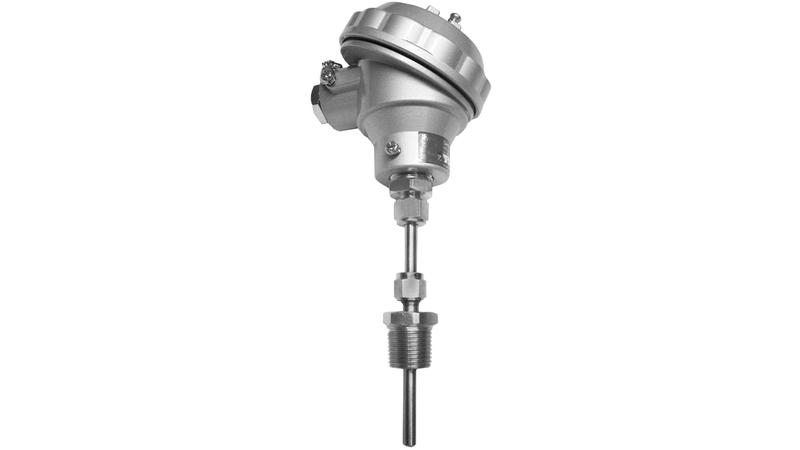

Endress+Hauser Endress+Hauser TC-Assembly S.A.Style TLSC1

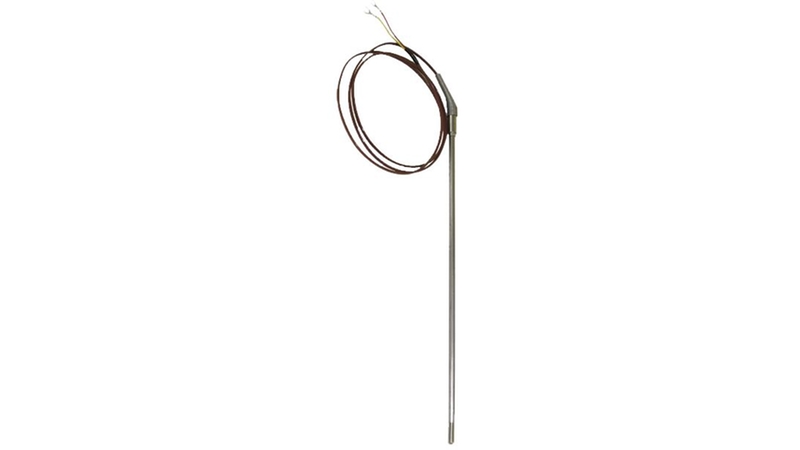

Endress+Hauser Endress+Hauser TC-Assembly S.A.Style TLSC2

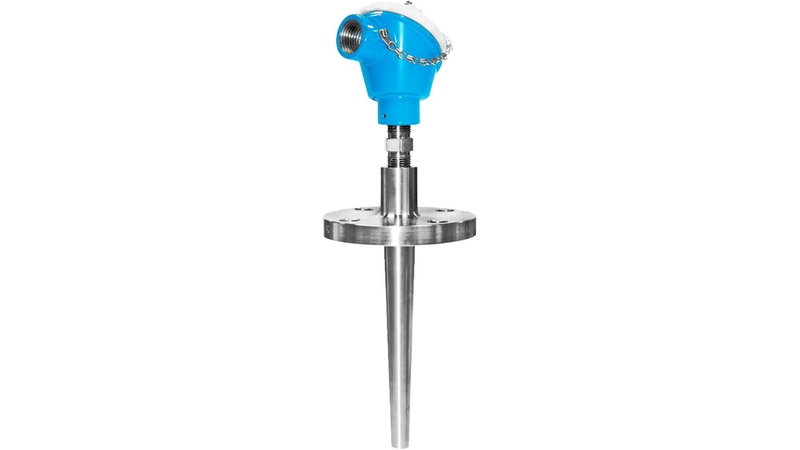

Endress+Hauser Endress+Hauser TH54Modular TC thermometer, US style

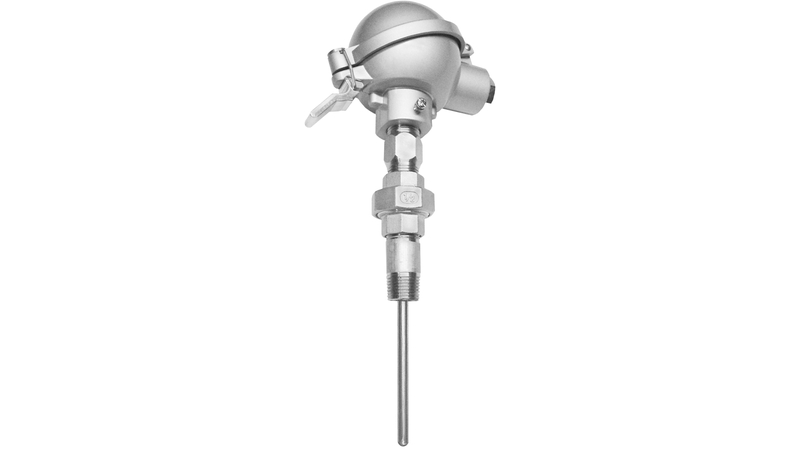

Endress+Hauser Endress+Hauser TC-Assembly S.A.Style TLSC5
